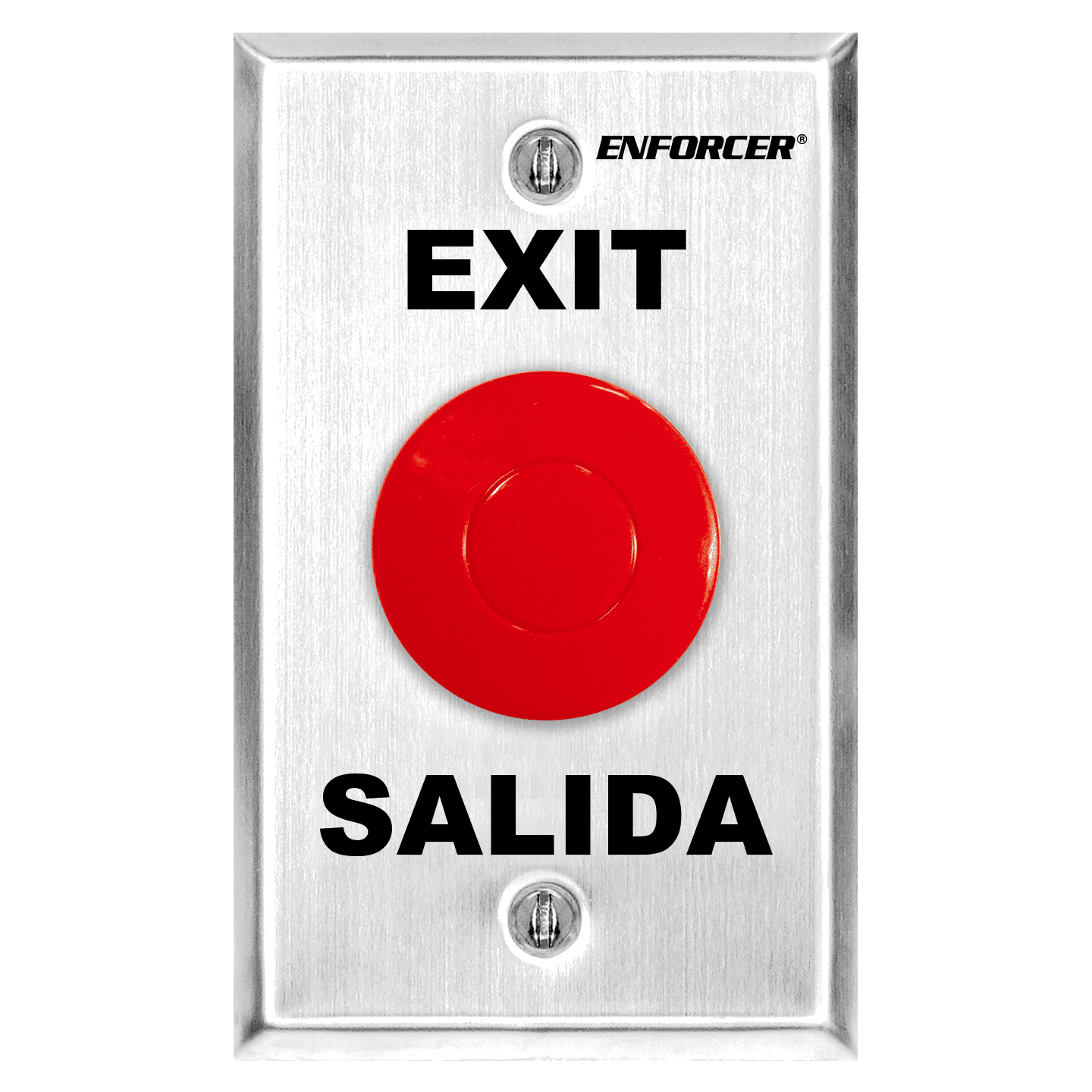

SECO-LARM - SD-7213-RSP - RTE Plate with Pneumatic Timer, Red
Part number:
SD-7213-RSP
Price:
- • ETL, Conforms to UL Std. 294
- • Built-in pneumatic timer – no power required (1~60s)
- • Excellent for installations where supplying additional timer power is inconvenient
- • Reliable American-made pneumatic components
- • D.P.S.T.
- • NO/NC contact rated 5A@125VAC
- • “EXIT” and “SALIDA” silk-screened on plate
| Type | Request-to-Exit Plates with Pneumatic Timer |
| Switching Capacity | 5A@125VAC |
| Built-in Timer | pneumatic timer – no power required (1~60s). |
| Wiring- Red | 2x N.C. #18 AWG 9″ (230mm) |
| Wiring- White | 2x N.O. #18 AWG 9″ (230mm) |
| Dimensions (Height x Width) | 4-1/2″x2-3/4″ (115 × 70 mm) |
| Dimensions (Depth) | 3-1/2″ (88mm) |
Name
Description
Size
Downloads
File
Product Information Sheet
0.2mb
File
Manual
0.3mb
ENFORCER Request-to-Exit Plates with Pneumatic Timers are ideal for situations where providing power to a timer would be inconvenient, hazardous or in violation of local ordinances and codes. The time can be easily adjusted on the spot via a timing screw without the need for tools.
