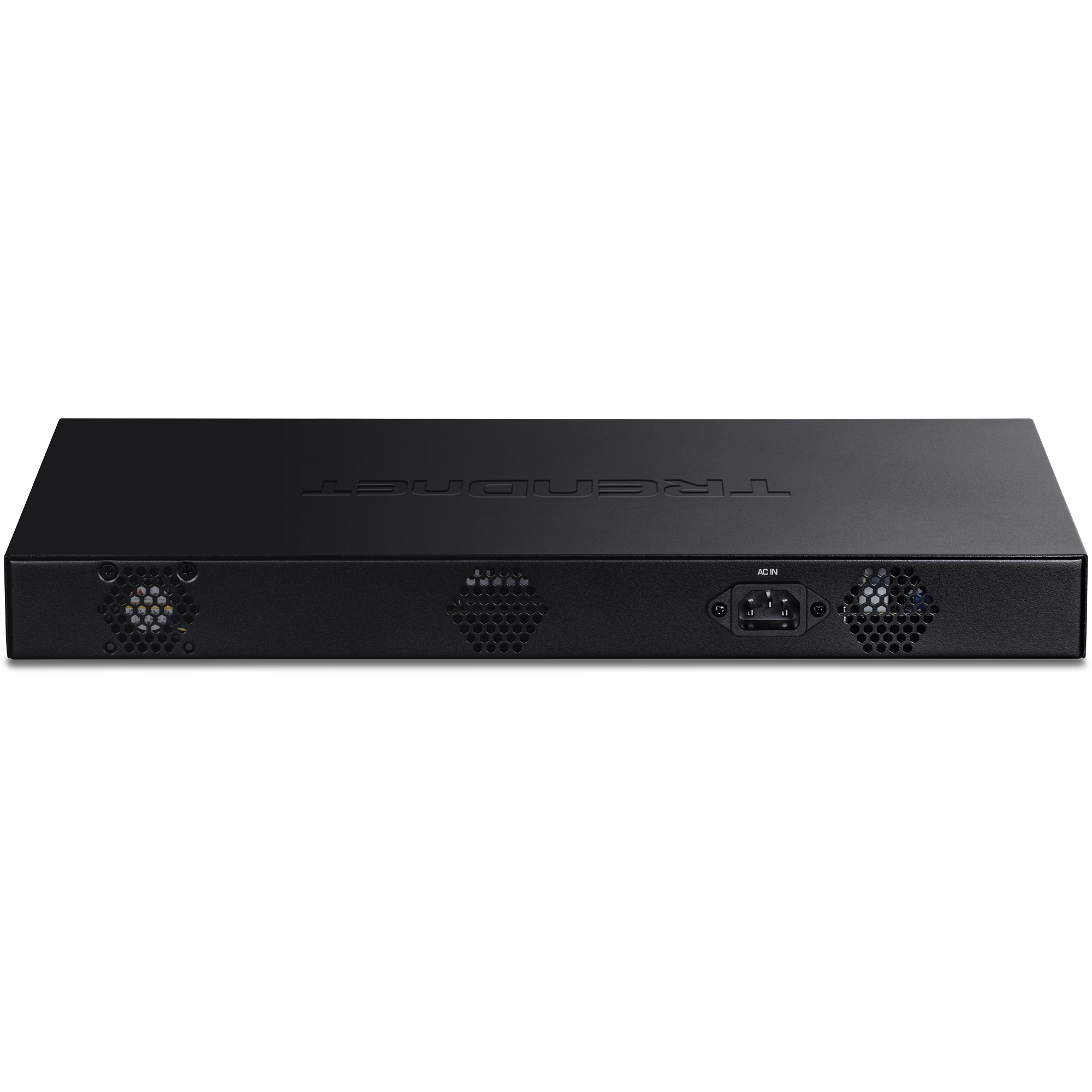

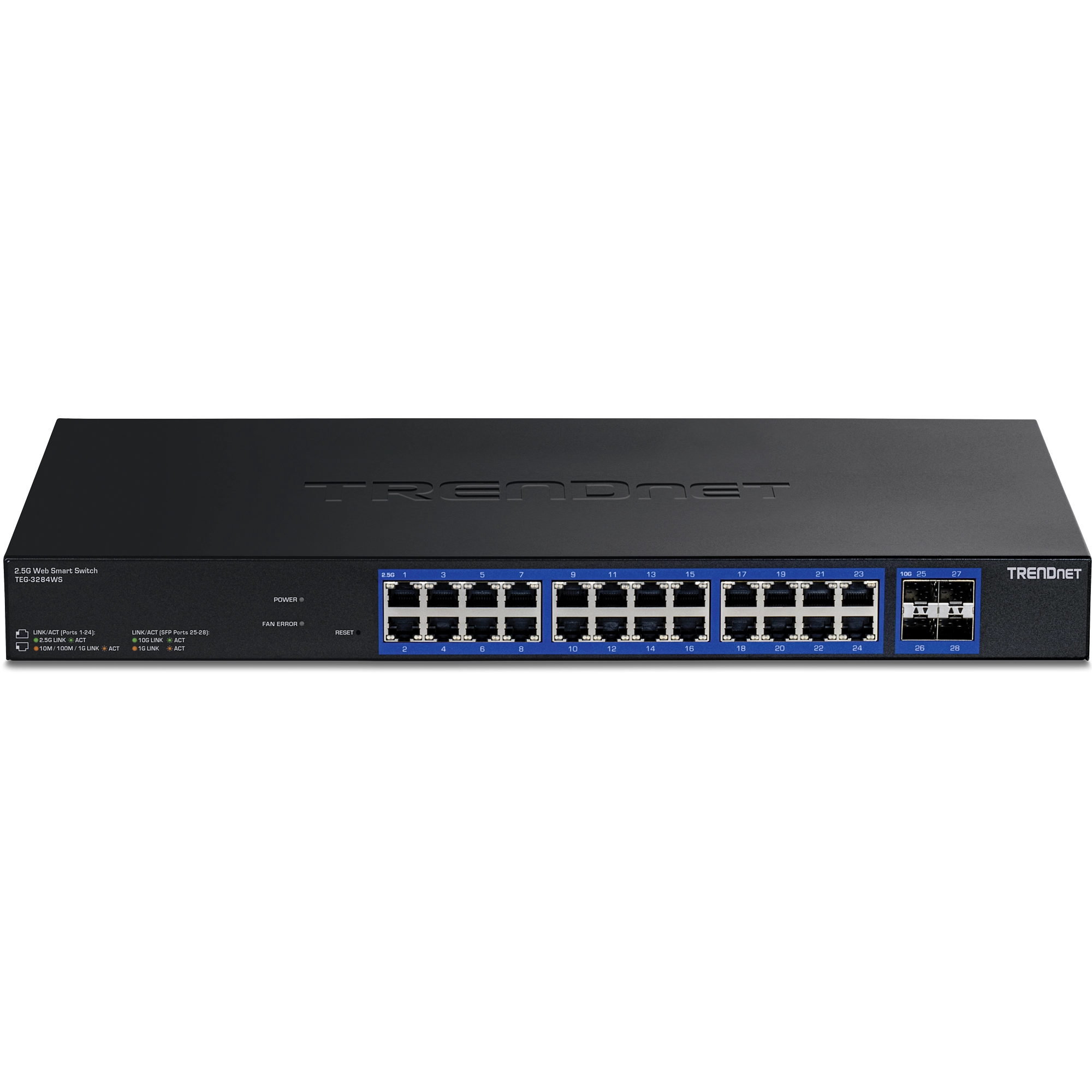

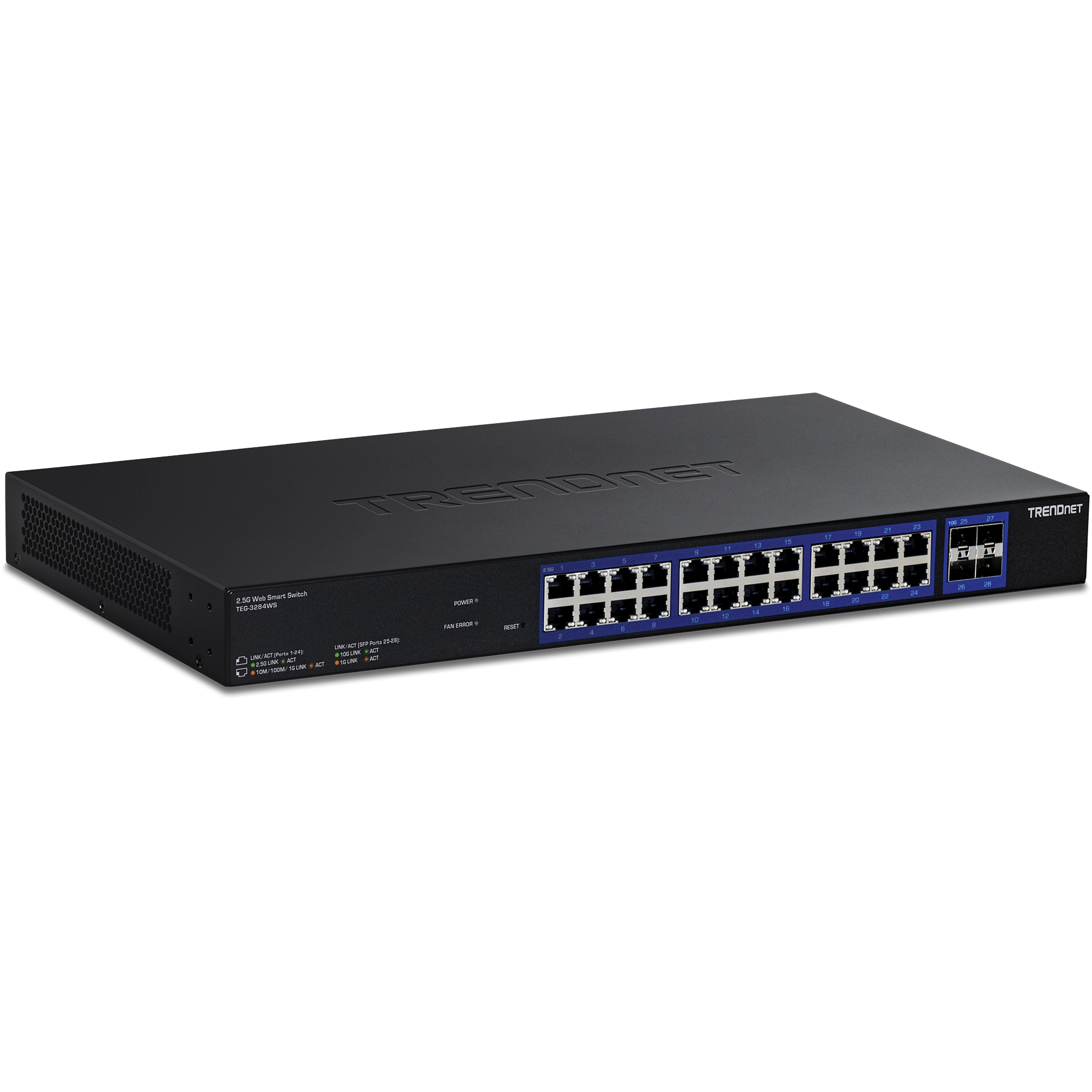

Trendnet - TEG-3284WS - 28-Port Multi-Gig Web Smart Switch

Name: Trendnet - TEG-3284WS - 28-Port Multi-Gig Web Smart Switch
Brand: Trendnet
SKU: TEG-3284WS

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 24 x 2.5G ports
• 4 x 10G SFP+ ports
• Backwards compatible with 10/100/1000BASE-T devices
• Easy-to-use web-based management interface
• Remote cloud management with TRENDnet Hive (Additional fee may apply)
• Supports IPv6, LACP, VLAN, QoS, and IGMP Snooping
• Bandwidth control per port
• Private, Multicast, and Voice VLAN support
• Smart Fan
• 200Gbps switching capacity
• NDAA / TAA compliant (U.S. and Canada only)
• Lifetime Warranty

Standards	• IEEE 802.1d • IEEE 802.1p • IEEE 802.1Q • IEEE 802.1s • IEEE 802.1w • IEEE 802.1X • IEEE 802.1ab • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ad • IEEE 802.3ae • IEEE 802.3az • IEEE 802.3bz
Device Interface	• 24 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) • 4 x 10G SFP+ ports (1Gbps/10Gbps) • LED indicators
Data Transfer Rate	• Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) • Gigabit Ethernet: 2Gbps (full duplex) • 2.5G Ethernet: 5Gbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) • SFP+: 20Gbps (full duplex)
Performance	• Switching fabric: 200Gbps • RAM Buffer: 2MB • MAC Address Table: 32K entries • Jumbo Frames: 12KB • HOL Blocking Prevention • Forwarding rate: 130.95Mpps (64-byte packet size)
Management	• CLI (Telnet / SSHv2) limited administration only • HTTP/HTTPS (SSL v2/3 TLS) Web based GUI • SNMP v1, v2c, v3 • RMON v1 • Static Unicast MAC Address • Enable/disable 802.3az Power Saving • LLDP • Virtual Cable Diagnostics Test • IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration • Dual image • Dual configuration • TC Root/Protect • Ping Watch Dog • DHCP relay/option 82
Hive Cloud Management	• Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple switches • Event/hardware network monitoring (CPU/memory utilization) • Configure features such as IP address settings, VLANs, spanning tree, loopback detection, IGMP snooping, link aggregation, and bandwidth control through cloud management
MIB	• IP FORWARD TABLE MIB RFC 1354 • IPV6 MIB RFC 2465 • GVRP MIB IEEE 802.1Q-VLAN • LA MIB IEEE 802.3ad • LLDP MIB IEEE 802.1AB • SNMP MIB RFC 3415 • STP MIB RFC 4318 • PNAC MIB IEEE 802.1x • VLAN MIB IEEE 802.1q • ACL MIB • BANDWIDTH CTRL MIB • LBD MIB • MIRROR MIB • IPV6 NEIGHBOR MIB • SNTP MIB • STORM CTRL MIB • STATISTICS MIB • Tool MIB • VOICE VLAN MIB • DOS MIB
Spanning Tree	• IEEE 802.1d STP • IEEE 802.1w RSTP • IEEE 802.1s MSTP
Link Aggregation	• Static Link Aggregation • 802.3ad Dynamic LACP
Quality of Service (QoS)	• 802.1p Class of Service (CoS) • DSCP (Differentiated Services Code Point) • Bandwidth control per port • Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN	• Multiple management VLAN assignment • Asymmetric VLAN • 802.1Q Tagged VLAN • Dynamic GVRP • MAC-based VLAN • Protocol-based VLAN • Up to 256 VLAN groups, ID Range 1-4094 • Private VLAN (Protected Ports) • Voice VLAN (10 user defined OUIs)
Multicast	• IGMP Snooping v1, v2 • MLD Snooping v1 • IGMP fast leave • MVR (Multicast VLAN Registration) • Static Multicast Address • Up to 256 multicast entries
Port Mirror	• RX, TX, or Both • Many to one
Access Control	• 802.1X Port-Based Network Access Control, RADIUS, TACACS+ • Local Dial In User Authentication • DHCP Snooping (per VLAN) • Loopback Detection • Duplicated Address Detection • Trusted Host • Denial of Service (DoS) • IP MAC port binding • Dynamic ARP inspection • Block unknown multicast
ACL IPv4 L2-L4 & IPv6	• MAC Address • VLAN ID • Ether Type (IPv4 only) • IP Protocol 0-255 • TCP/UDP Port 1-65535 • 802.1p • DSCP (IPv4 only) • IPv6 Address (IPv6 only)
Layer 3 Features	• IPv4 / IPv6 static routing • IP interfaces: Up to 8 • Routing table entries: Up to 32 (IPv4 / IPv6) • ARP table (up to 128 entries) • Inter-VLAN routing
Compatibility	Optional Software Utility: Windows® 11 & 10
Power	• Input: 100 – 240V AC, 50/60Hz, internal power supply • Max. consumption: 40W
Fan/Acoustics	• Quantity: 1 • Smart fan • Max. noise level 38.6 dBA
MTBF	175,750 hours @ 25°C
Operating Temperature	-5° – 50° C (23° – 122° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	• 440 x 250 x 44mm (17.32 x 10.04 x 1.73 in.) • Rack mountable 1U height
Weight	3.408kg (7.51 lbs.)
Certifications	• CE • FCC • UL
Warranty	Lifetime Warranty
Package Contents	• TEG-3284WS • Power cord (1.8m/6 ft.) • Rackmount kit

Name

Description

Size

Downloads

File

TEG-3284WS - 28-Port Multi-Gig Web Smart Switch - Datasheet.pdf

1.7mb

TRENDnet’s 28-Port Multi-Gig Web Smart Switch model TEG-3284WS offers advanced L2+ features and enhanced traffic management controls, meeting the evolving demands of today’s SMB networks. This IPv6-ready, rack-mountable managed switch comes with an intuitive web-based interface. Its advanced features include LACP to increase bandwidth between switches by grouping ports together, VLANs to segment and isolate virtual LAN groups, QoS for traffic prioritisation, port bandwidth controls and SNMP monitoring. Voice performance can be improved by isolating and prioritising VoIP traffic from normal data traffic using the easy-to-use voice VLAN feature.
