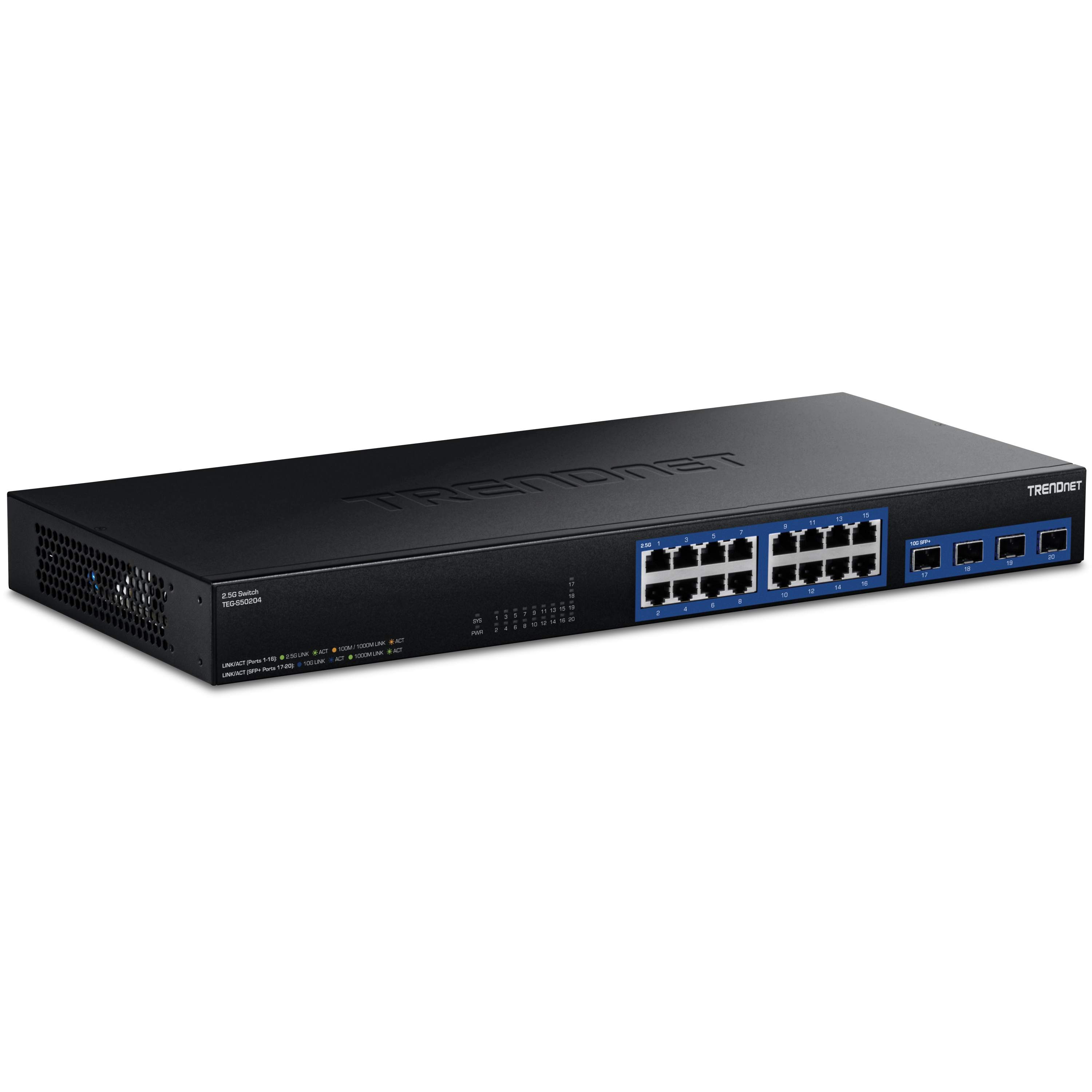

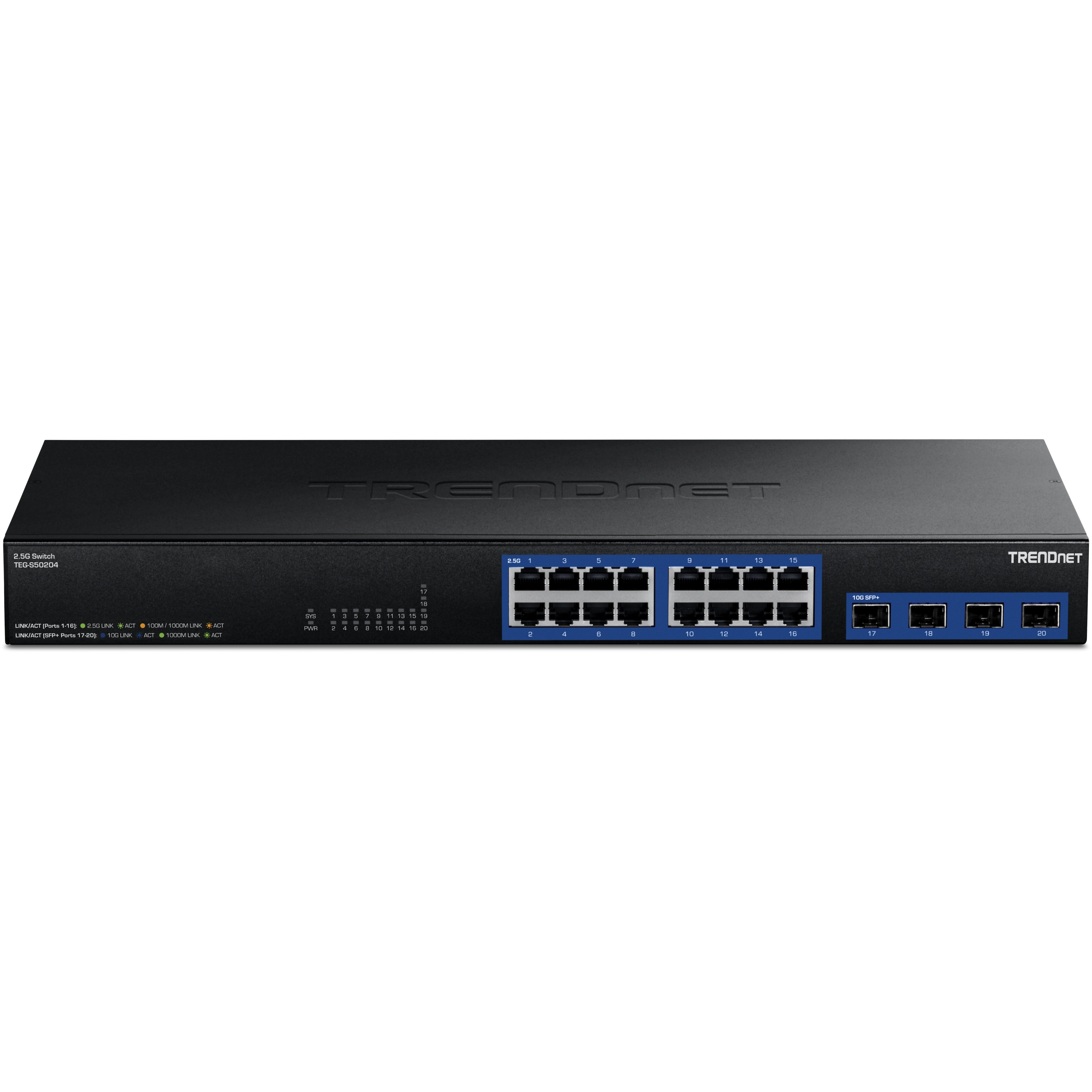

Trendnet - TEG-S50204 - 20-Port 2.5G Switch with 10G SFP+ Ports
Part number:
Price:
- • 16 x 2.5G RJ-45 ports
- • 4 x 10G SFP+ ports
- • Compatible with existing Cat5e or better cabling
- • Fanless design eliminates noise
- • Rack mountable or wall mountable for installation flexibility
- • 160Gbps switching capacity
- • IEEE 802.3bz (2.5G) and IEEE 802.3ae (10G SFP+) compliant
- • NDAA / TAA compliant (U.S. and Canada only)
- • Lifetime Warranty
| Standards | • IEEE 802.1Q • IEEE 802.3 • IEEE 802.3u • IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ae • IEEE 802.3az • IEEE 802.3bz |
| Device Interface | • 16 x 2.5G RJ-45 ports (10Mbps/100Mbps/1Gbps/2.5Gbps) • 4 x 10G SFP+ ports (1Gbps/10Gbps) • LED indicators |
| Data Transfer Rate | • Ethernet: 10Mbps (half duplex) 20Mbps (full duplex) • Fast Ethernet: 100Mbps (half duplex) 200Mbps (full duplex) • Gigabit: 2Gbps (full duplex) • 2.5 Gigabit: 5Gbps (full duplex) • Gigabit SFP: 2Gbps (full duplex) • 10G SFP+: 20Gbps (full duplex) |
| Performance | • Switching Capacity: 160Gbps • RAM Buffer: 2MB • Jumbo Frames: 12KB • MAC Address Table: 32K entries • Forwarding Rate: 119.04Mpps (64-byte packet size) |
| VLAN | VLAN Passthrough |
| Power | • Input: 90 – 264V AC, 47/63 Hz • Output: 12V DC, 3A • Max. Consumption: 38.88W |
| Fan/Acoustics | Fanless design |
| MTBF | 394,000 hours @ 25° C |
| Operating Temperature | 0° – 50° C (32° – 122° F) |
| Operating Humidity | Max. 90% non-condensing |
| Dimensions (L x W x H) | 440 x 196 x 44mm (17.36 x 7.71 x 1.73 in.) |
| Weight | 2.89kg (6.37lbs) |
| Certifications | FCC, CE, LVD |
| Warranty | Lifetime Warranty |
| Package Contents | • TEG-S50204 • Rackmount kit • Power cord (1.5m / 5 ft.) |
Name
Description
Size
Downloads
File
TEG-S50204 - 20-Port 2.5G Switch with 10G SFP+ Ports - Datasheet.pdf
0.2mb
This multi-gigabit network switch is equipped with 2.5GBASE-T RJ-45 ports and 10G SFP+ fiber ports, providing ultra-fast speeds of up to 2.5 Gbps over existing Cat5e cabling and 10 Gbps over fiber cabling. This high-speed switch has a durable metal enclosure and a fanless design that lowers energy consumption and eliminates operating noise. The included rackmount brackets are ideal for 19" 1U rack installations. TRENDnet’s reliable 2.5G switches offer a cost-effective way to increase your network’s throughput.
