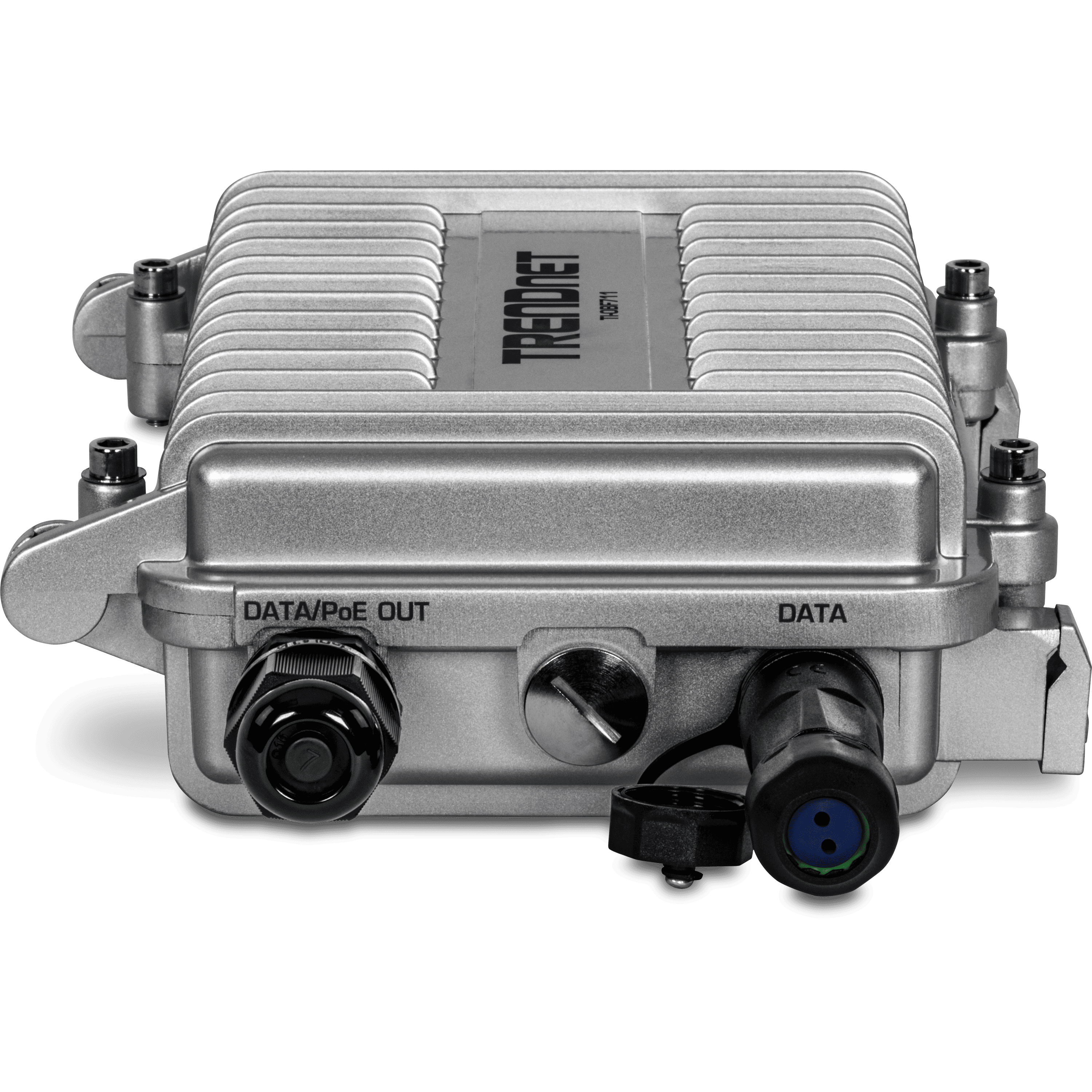

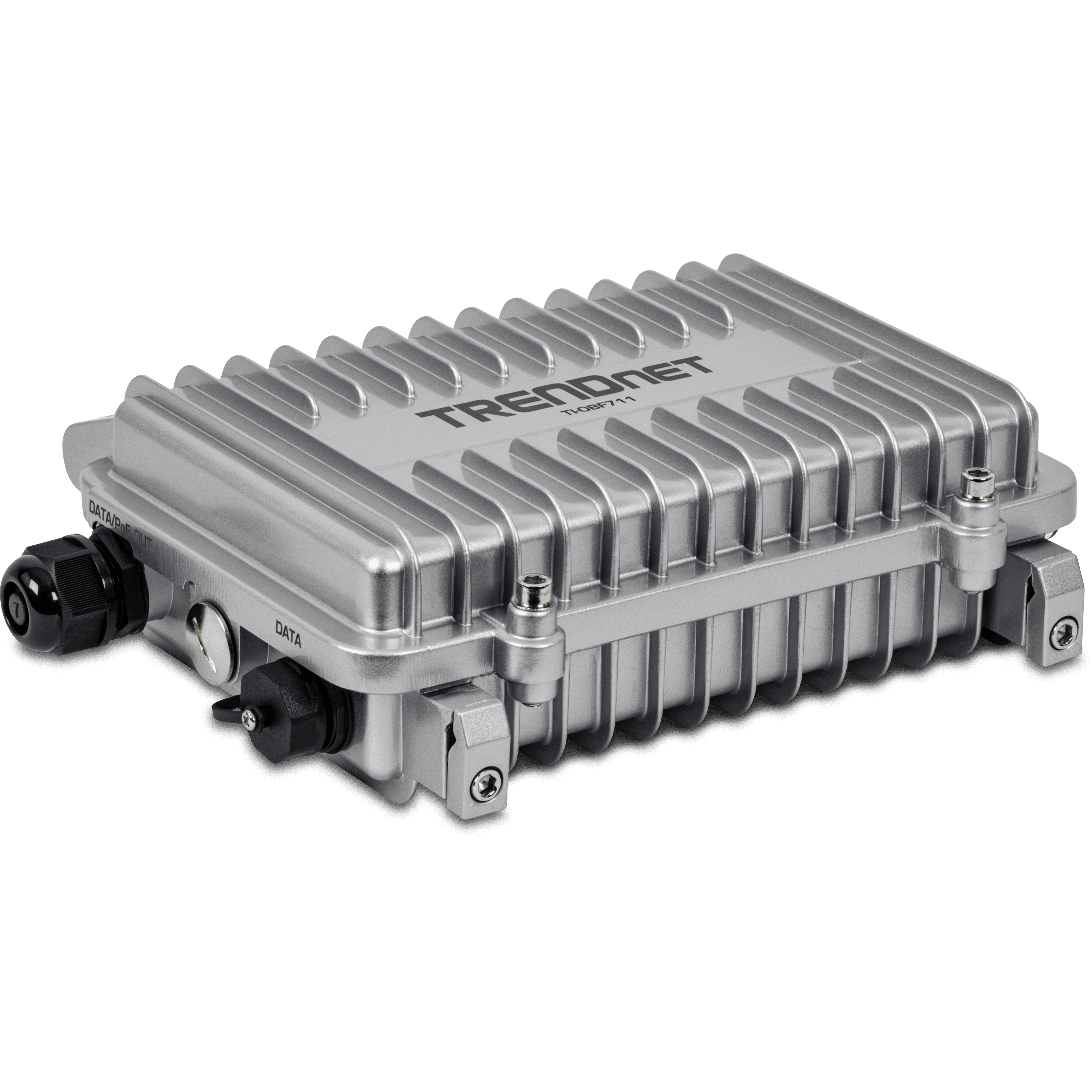

Trendnet - TI-OBF711 - Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W)

Name: Trendnet - TI-OBF711 - Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W)
Brand: Trendnet
SKU: TI-OBF711

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads Technical Overview

• 1 x 10G LC duplex single mode fiber optic port
• 1 x 10G PoE++ RJ45 port
• Supports 1310nm single mode network transmissions up to 20km (12.42mi.)
• Waterproof IP67-rated metal housing
• Provides up to 95W for PoE, PoE+ and PoE++ compliant devices
• Extreme operating temperature range -40°– 75° C (-40° – 167° F)
• Includes pole mount hardware
• NDAA / TAA compliant (U.S. and Canada only)

Standards	• IEEE 802.3x • IEEE 802.3z • IEEE 802.3ab • IEEE 802.3ae • IEEE 802.3an • IEEE 802.3af • IEEE 802.3at • IEEE 802.3bt
Device Interface	• 1 x 10GBASE-T PoE++ RJ45 Auto-MDIX port (1G / 10Gbps) • 1 x LC duplex single mode fiber optic port (1G / 10Gbps) • LED indicators
Performance	• Data RAM Buffer: 1MB • Switching Capacity: 20Gbps • MAC Address Table: 4K entries • Jumbo Frame: 128KB • Forwarding rate: 29.76Mpps (64-byte packet size)
Fiber	• Media: 10Gbps Single-mode LC fiber optic connector • Cable: SM G.652 • Wavelength: 1310 nm • Optical Output Power (dBm): -5 ~ 0 • Optical Input Power (dBm): -14.4 • Power Budget: 9.4 dBm • Distance: up to 20km (12.42 mi.) (dependent on SFP)
PoE	• PoE budget: 95W • Pins 1, 2, 7, 8 for power - and pins 3, 6, 4, 5 for power + • Over current protection • Short circuit protection
Power	• Input: 100 – 240V AC, 50/60Hz, 3-pin power connector • Max. consumption: 7.33W (without PD connected)
MTBF	760,000 hours @ 25° C
Enclosure	• IP67 metal case • Pole mountable • 6kV AC surge protection • 6kV RJ45 surge protection
Operating Temperature	- 40° – 75° C (-40° – 167° F)
Operating Humidity	Max. 95% non-condensing
Dimensions	235 x 154 x 75mm (9.25 x 6.06 x 2.95 in.)
Weight	1.83kg (4.03 lbs.)
Certifications	• CE • FCC • ETL • LVD • Shock (IEC 60068-2-27) • Freefall (IEC 60068-2-31) • Vibration (IEC 60068-2-6) • IEC 61000-4-2 • IEC 61000-4-4 • IEC 61000-4-5
Warranty	3-year
Package Contents	• TI-OBF711 • 3-pin power cord (1.5m / 5 ft.) • Pole mount hardware

Name

Description

Size

Downloads

File

TI-OBF711 - Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter - Datasheet.pdf

0.2mb

The TRENDnet Industrial Outdoor 10G SFP+ to 10G PoE++ Media Converter (95W) model TI-OBF711 converts long-distance fibre connections to copper connections while providing power to PoE-, PoE+ and PoE++-compliant devices such as IP cameras, VoIP phones and wireless access points. When paired with the TEG-10GBS20, this outdoor media converter can transmit data over a distance of up to 20 km (12.42 mi). With an operating temperature range of -40° to 75°C (-40° to 167°F) and a hardened IP67-rated metal housing, the industrial outdoor media converter is suitable for tough industrial environments. The rugged design of the outdoor PoE++ media converter also provides protection from shock, freefall and vibration.
