Trendnet - TPI-L14 - 14-Outlet Managed 2U Rackmount Switched Power Distribution Unit
- • 14 x NEMA 5-15R managed power outlets
- • 2 x Gigabit ports
- • Supports STP/RSTP for network redundancy
- • Individual controllable outlets
- • Automate outlet reboot settings in case of connection loss
- • Port power on/off delay for custom applications
- • Manage outlet control and monitor power consumption
- • Remote cloud management with TRENDnet Hive (Additional fee applies)
- • Protects connected equipment from power surges & dangerous voltage conditions
- • Filters AC for best electronics performance
- • LED indicators conveniently convey AC ground status, and outlet status
- • LCD screen conveniently displays power consumption, network information, and outlet controls
- • View per outlet energy usage via dashboard
- • Reduces excess energy consumption by creating power schedules
- • Event email notifications
- • 2U 19” Rack mountable
- • Input Voltage 100-120VAC
- • Certifications: UL 62368-1, IEC 61000-4-5 Class 3, and IEC 61000-4-2 Level 2
- • NDAA / TAA compliant (U.S. and Canada only)
| Device Interface | • 14 x NEMA 5-15R (15A max. @ 120V AC) • 2 x Gigabit port • LED indicators • LCD display with button controls • Reset button |
| Power Output | • 100 – 120V, 50/60Hz • Max. 15A per outlet • 15A breaker overload protection |
| Power Input | • 100 – 120V, 50/60Hz, internal power supply • Max. consumption: 14.11W (no PD load) |
| Hive Cloud Management | • Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC, Mac web browser or through an Android or iOS mobile device • Multi-device management • Provisioning through scheduled batch firmware or configuration updates for multiple PDUs • Event/hardware network monitoring (CPU/memory utilization) • Enable & disable power, set auto reboot check, configure power scheduling, and monitor power usage |
| Spanning Tree | • IEEE 802.1D STP (Spanning Tree protocol) • IEEE 802.1w RSTP (Rapid Spanning Tree protocol) |
| Special Features | • Fanless • Wall mountable • Adjustable depth rack mount • Cable retention clip |
| Operating Temperature | 0° - 40° C (23° - 104° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 440 x 88 x 88mm (17.32 x 3.46 x 3.46 in.) |
| Weight | 2.43kg (5.35 lbs.) |
| Warranty | 3-Year limited |
| Certifications | • FCC • UL • Surge protection (IEC 61000-4-5 Class 3) • ESD Protection (IEC 61000-4-2 Level 2) |

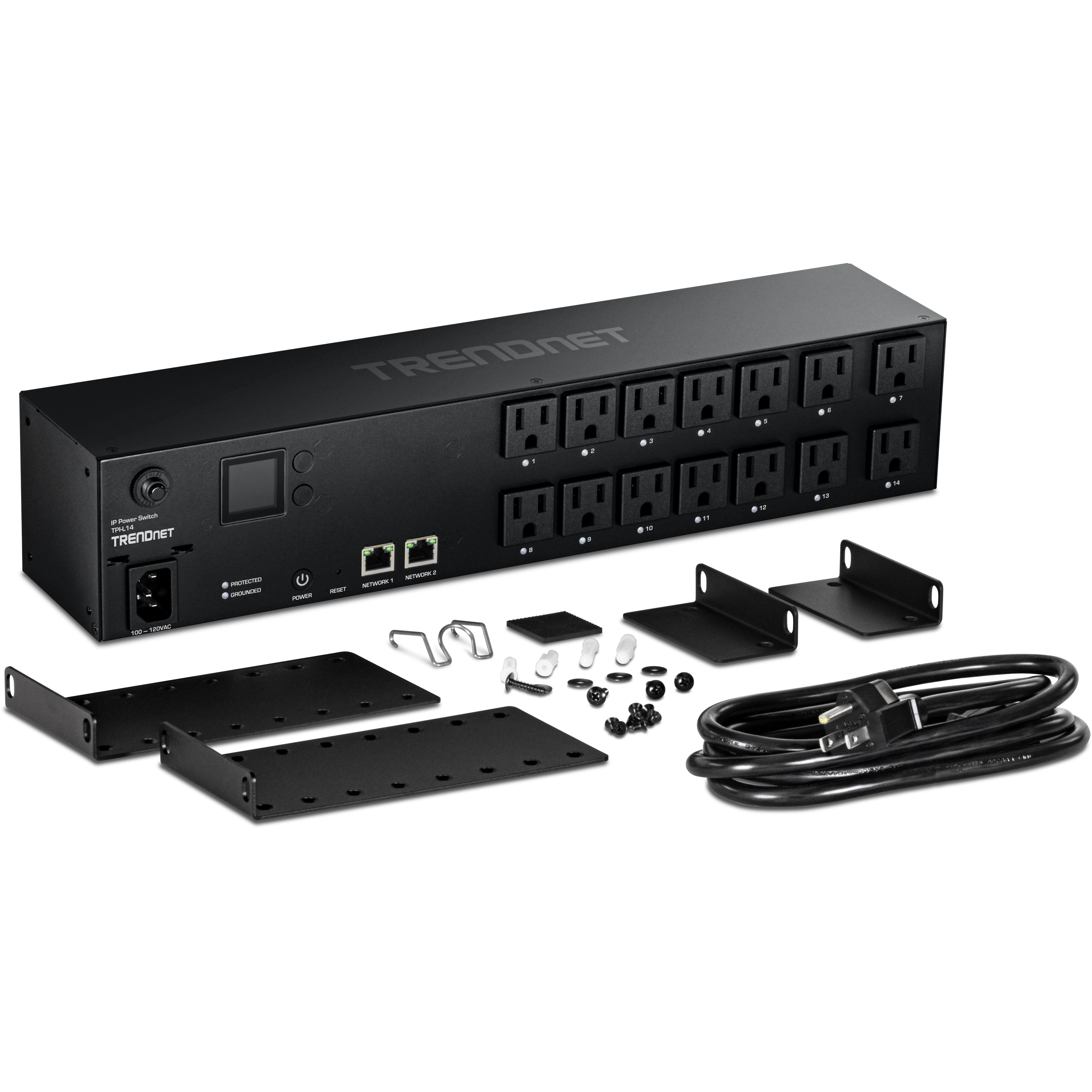

| Package Contents | • TPI-L14 • Power cord (1.8m / 6 ft.) • Rackmount kit • Wall-mount kit |
TRENDnet’s 14-outlet managed 2U rackmount switched power distribution unit model TPI-L14 provides an intelligent, networkable power solution. It automates outlet reboot settings in the event of a connection loss, ensuring the efficient use of available resources, controlling power consumption and protecting the safety of connected equipment. The fanless design eliminates operating noise.

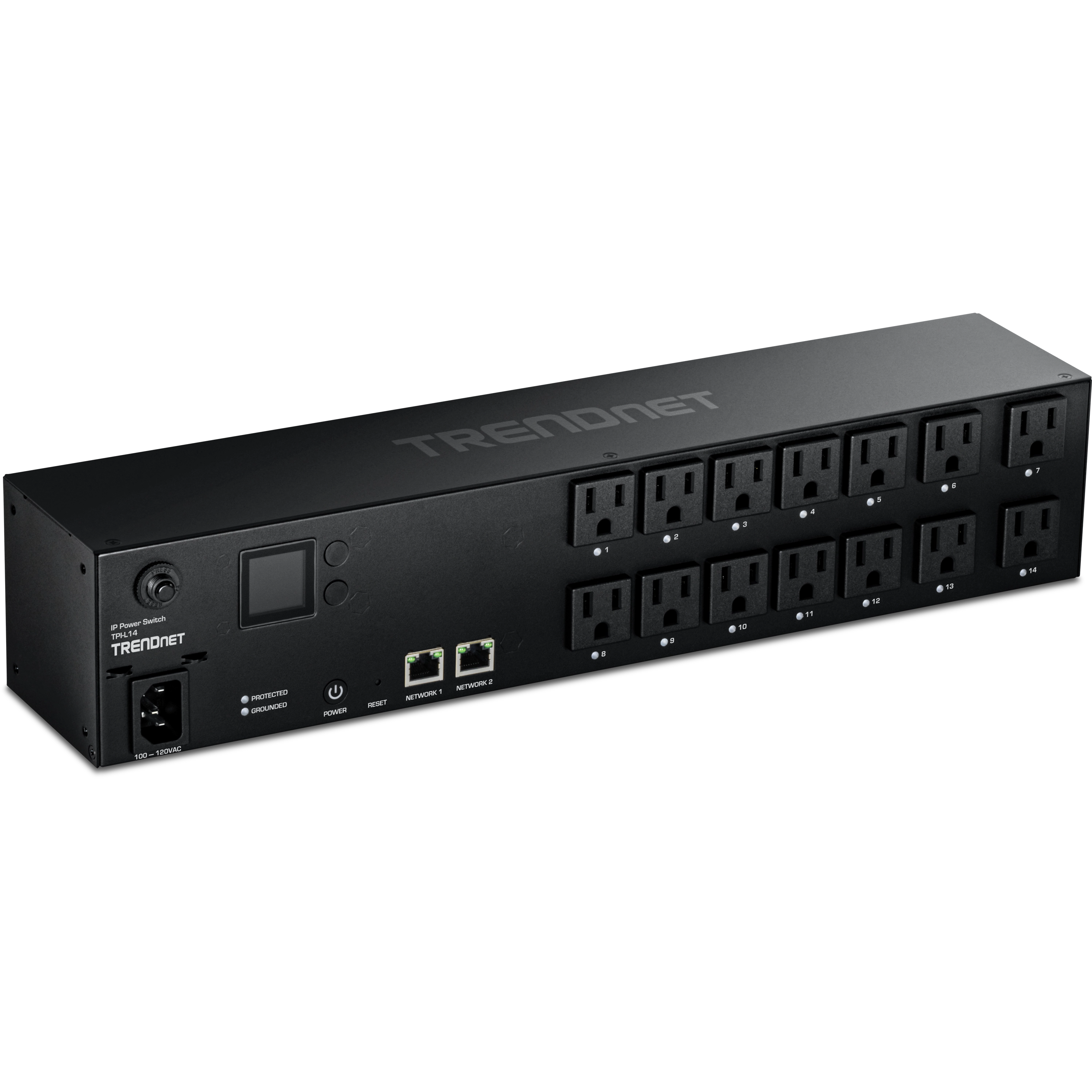

The 14-outlet managed rackmount power distribution unit features 14 NEMA 5-15R outlets, two gigabit ports and an LCD screen. Each power outlet can be controlled individually. The two gigabit ports ensure network redundancy in the event of failure of one of the network ports. The TPI-L14 switched PDU filters the AC supply to optimise performance of connected electronics, while simultaneously reducing excess energy usage through power scheduling. The LCD screen displays vital information such as power usage and network details, and allows easy management of each power outlet.
