SECO-LARM - SD-7204SGEX1Q - Vandal-Resistant Request-to-Exit Plates

Product Overview

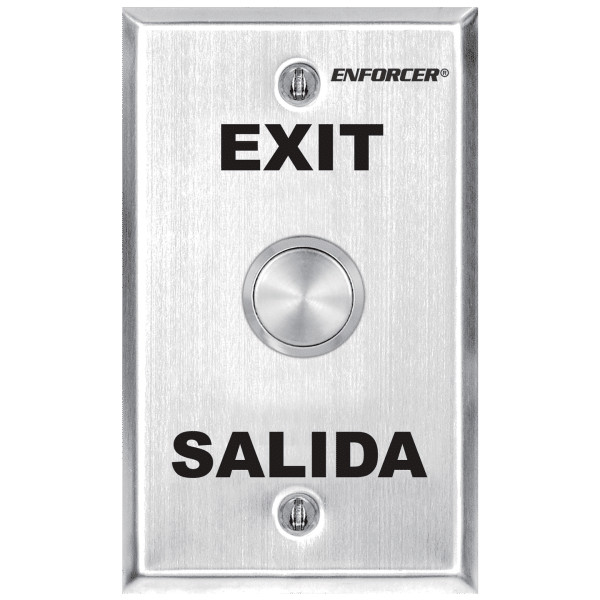

The SECO‑LARM SD‑7204SGEX1Q is a vandal‑resistant stainless‑steel momentary pushbutton mounted on a single‑gang plate with a 1‑inch (25 mm) diameter button. It features an SPDT switch with both NO and NC contacts, rated 5A @ 250VAC, and is IP65 weatherproof for outdoor installation. The plate includes "EXIT" and "SALIDA" printed for bilingual signage, and the unit is ETL Listed, conforming to UL 294 for security access control applications.

Key Configuration

• Switch type: SPDT (NO/NC)
• Contact rating: 5A @ 250VAC
• IP rating: IP65 weatherproof
• Plate: Single-gang stainless steel
• Button: 1" (25mm) diameter stainless steel
• UL 294 ratings: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I

Key Features

The SD‑7204SGEX1Q is a heavy‑duty request‑to‑exit button for access control systems, featuring a vandal‑resistant 1‑inch stainless‑steel pushbutton and a stainless‑steel single‑gang plate. The SPDT switch provides both NO and NC contacts for flexible integration with access control panels and alarm systems.

Technical Context

Rated IP65 weather‑resistant for outdoor installation, the button withstands physical abuse and environmental exposure. It is ETL Listed and conforms to UL 294 for security access control applications, with a contact rating of 5A @ 250VAC for direct control of magnetic locks, electric strikes, and relays.

Installation Notes

The plate measures 115 × 70 × 20 mm and operates from -20°C to 60°C, featuring "EXIT" and "SALIDA" silk‑screened on the plate for bilingual signage. A slimline version (SD‑7104SGEX1Q) is also available.
