SECO-LARM - SD-7104SGEX1Q - Vandal Resistant Request To Exit Plates
Product Overview

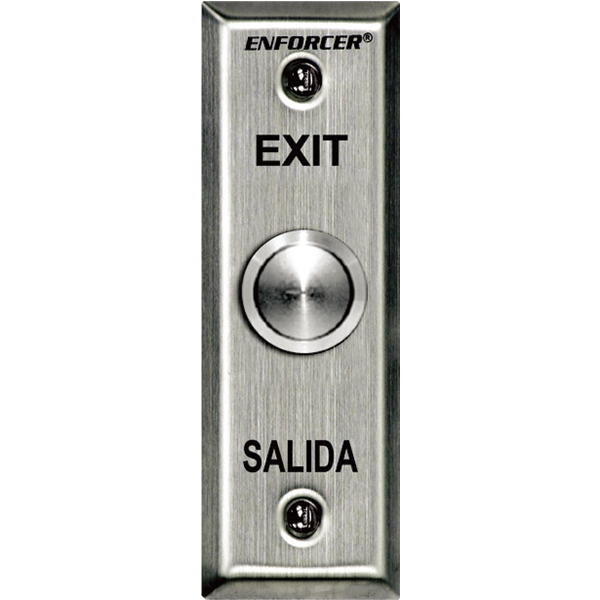

The SECO‑LARM SD‑7104SGEX1Q is a vandal‑resistant stainless‑steel momentary pushbutton mounted on a slimline single‑gang plate, featuring a 1‑inch (25 mm) diameter button and an SPDT switch with both NO and NC contacts rated 5A @ 250VAC. It is IP65 weatherproof for outdoor use, includes "EXIT" and "SALIDA" printed on the plate for bilingual signage, and is ETL Listed, conforming to UL 294 for security access control applications.
Key Configuration
• Switch type: SPDT (NO/NC)
• Contact rating: 5A @ 250VAC
• IP rating: IP65 weatherproof
• Plate: Slimline stainless steel
• Button: 1" (25mm) diameter stainless steel
• UL 294 ratings: Destructive attack Level I, Line security Level I, Endurance Level I, Standby power Level I
• Operating temperature: -20°C to 60°C
• Dimensions: 115 × 39 × 20 mm (4.5" × 1.56" × 0.81")
| Plate | Slimline |
| Contact rating | 50A@24VAC |
| Switch type | NO/NC |
| Destructive attack | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| IP Rating | Weatherproof IP65 |
| Operating Temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 4-1/2″x1-9/16″x13/16″ (115x39x20 mm) |
