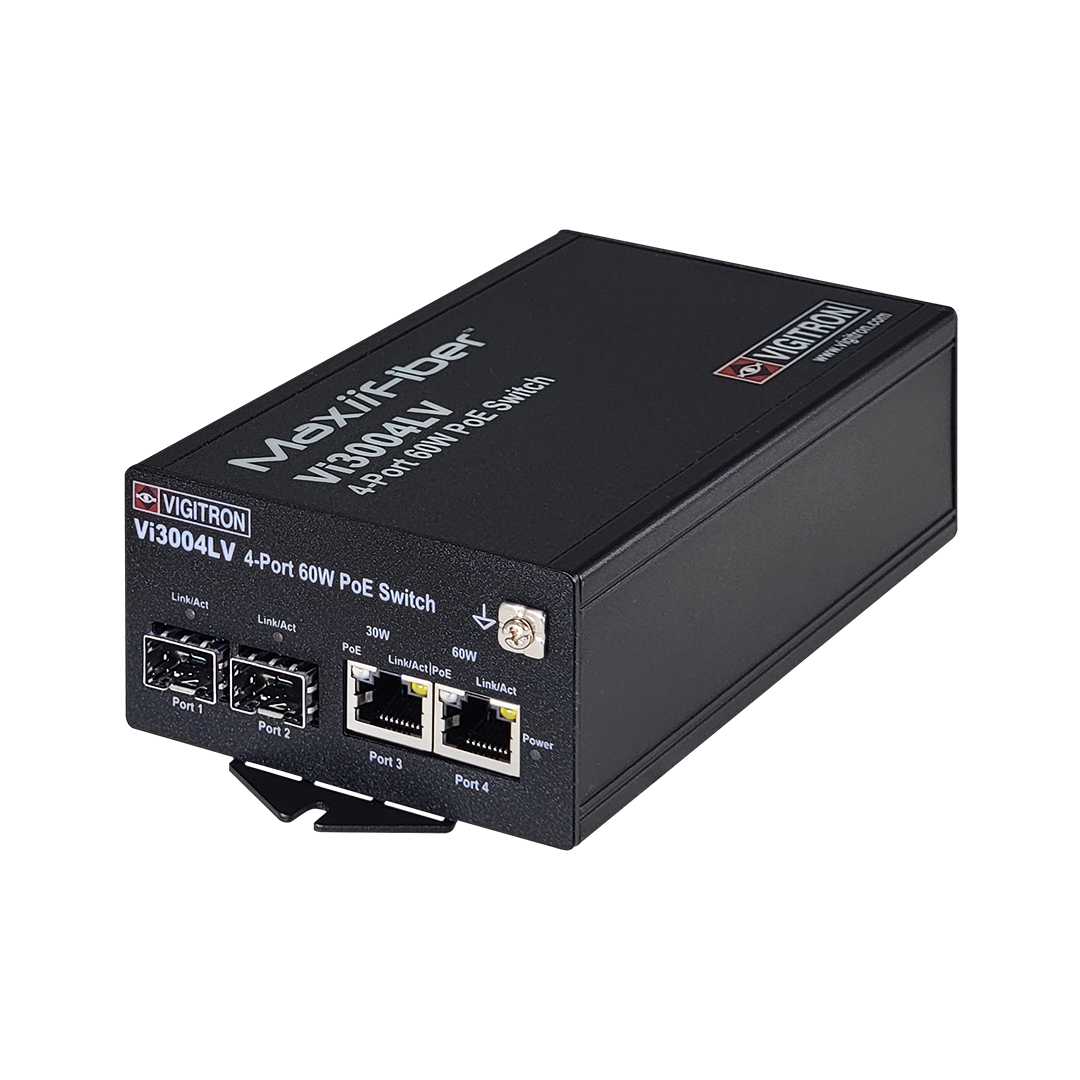

Vigitron - Vi3004 - 4-Port MaxiiNet™ 10/100/1G 24V Input PoE Switch
Product Overview
The Vigitron Vi3004 is a 4-port Layer 2 switch and media converter that operates on 24VDC or 24VAC, making it ideal for retrofitting existing CCTV systems. It features a high-power PoE output with up to 30W on Port 3 and 60W on Port 4. Equipped with 1G SFP fiber ports, it supports long-distance transmissions of up to 80km depending on the SFP module used.
Key Configuration
- • Data interface: fiber MSA ports (1000Mbps fixed); copper ports (10/100/1000Mbps auto-sensing)
- • Power source: 24VDC or 24VAC, 6A max
- • PoE standards: IEEE 802.3af, 802.3at; Port 3: up to 30W; Port 4: up to 60W (802.3 PoE compliant)
- • Jumbo frames: 10,000 bytes; network switch: layer 2
- • Dimensions: 1.9" × 3.45" × 5.6" (4.83 × 8.76 × 14.22 cm); weight: 0.99 lb (450 g)
Key Features
It enables high-performance Ethernet transmission over fiber via its SFP interface, featuring direct network switch connectivity and a rugged operating range of -30°C to +70°C. It is MPC™ certified for guaranteed camera compatibility and loss-free packet performance. This switch includes fixed Layer 2 management functions, such as 802.1p QoS, 2k MAC address support, and a non-blocking fabric for efficient data handling.
Technical Context
Provides versatile connectivity via two MSA-compliant SFP sockets, two RJ45 Ethernet ports, and a 2-wire power terminal strip. It features a comprehensive LED system for monitoring power, link activity, and PoE status across all ports. Fully RFC compliant (including TCP/IP, UDP, and HTTP) and meeting EN 5502/EN 50024 emission standards, this unit ensures reliable, standardized performance with full CE, RoHS, and WEEE certification.
Installation Notes
Housed in a rugged aluminum enclosure designed to withstand temperatures from -30°C to +70°C and up to 95% non-condensing humidity. It is an ideal solution for parking lot and perimeter security, enabling the conversion of Ethernet UTP to fiber or the seamless upgrade of legacy analog systems to high-speed digital fiber networks.
| Electrical | |
| Data Interface | Fiber MSA Ports: 1000Mbps Fixed Copper Ports: 10/100/1000Mbps Auto sensing |
| Power Source | 24VDC/24VAC, 6A Max. |
| Status LEDs | Power: Green Fiber Ports: Yellow, Link/Activity Copper Ports: Yellow, Link/Activity Green, PoE |
| Connectors | Fiber (x2): MSA compliant SFP socket Ethernet (x2): RJ45 connector Power: 2 Wire Terminal Strip |
| Network Switch | Layer 2 |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, 60W compliant to 802.3 PoE standards for Port 4 |
| PoE per Port | Port 3: Up to 30W Port 4: Up to 60W |
| Jumbo Frames | 10,000 Bytes |
| Regulatory | |
| RFC | 2544 TCP/IP Packet Transmission 768 UPD, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet |
| Emission | EN 5502:2006+A1:2007 EN 61000-3-2:2006+A1:2009_A2:2009 EN 50024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -30°C to +70°C Storage: -30°C to +85°C |
| Mechanical | |
| Dimensions | 1.9 x 3.45 x 5.6 in, 4.83 x 8.76 x 14.22 cm (HxWxL) |
| Weight | 0.99 lb (450g) |
| Housing | Aluminum |
