Vigitron - Vi30105U - Maxii Net 6-Port 1G 802.3bt 90W PoE Powered PoE Switch

Product Overview

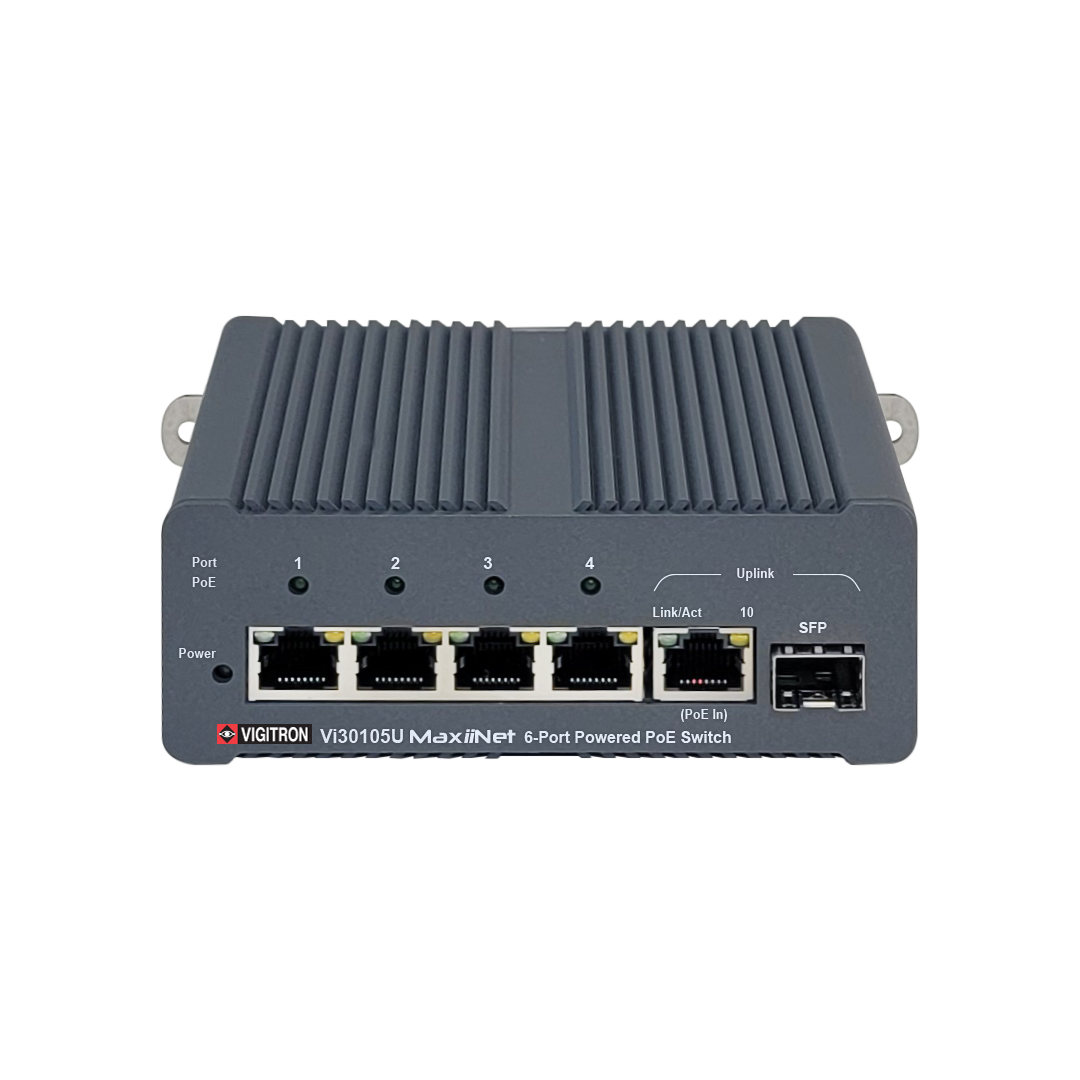

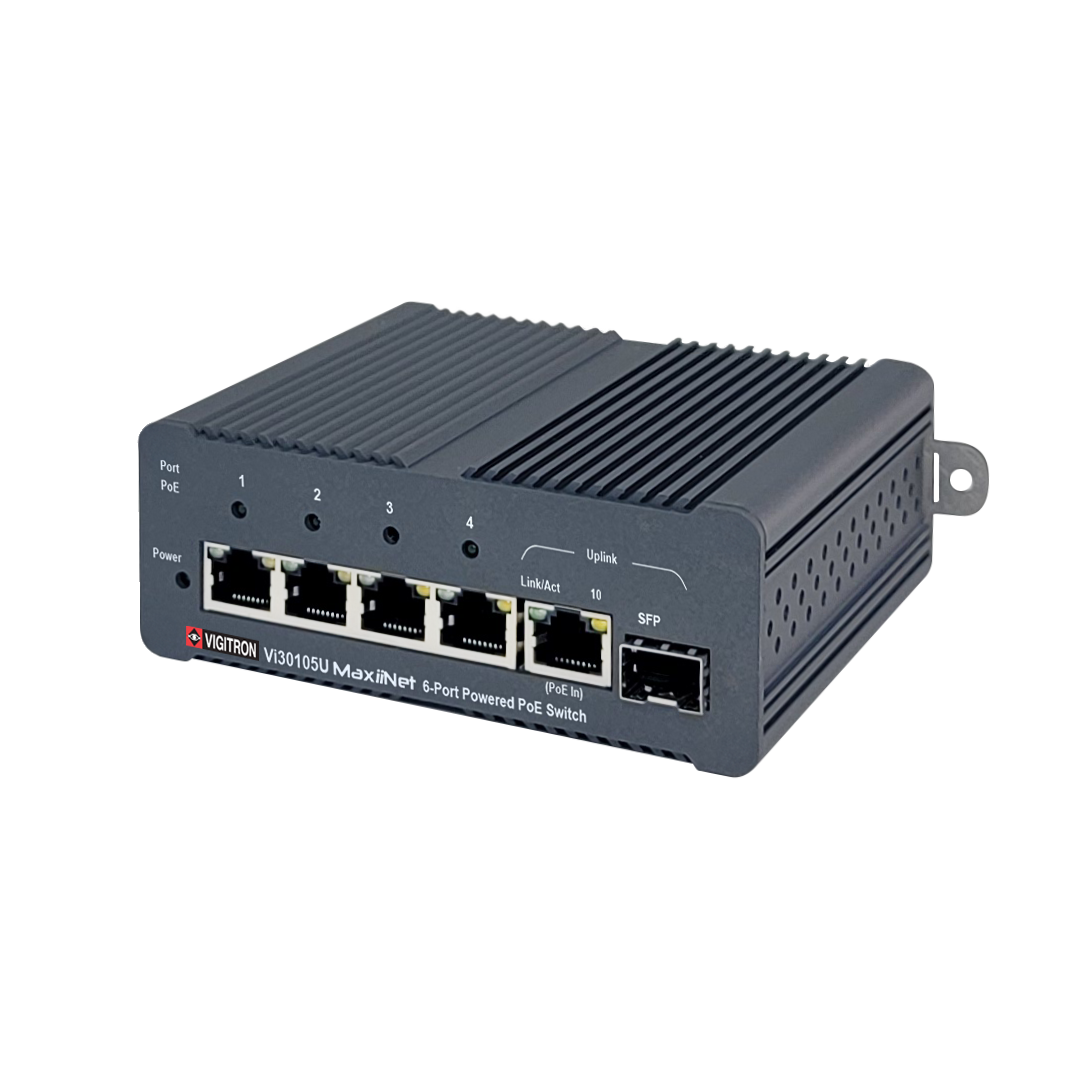

The Maxii Net Vi30105U is a hardened 6-port Layer 2 switch that functions as a high-power PoE extender, drawing power from a remote 802.3bt source to support 4 downstream ports. It delivers up to 90W per port for 802.3bt loads and up to 72W for non-standard PoE devices.

Key Configuration

• • Ethernet interface: copper – 100BaseT/1000BaseT; fiber – 1000BaseT SFP
• • Input PoE source: 802.3af (15.4W), 802.3at (30W), 802.3bt (90W)
• • Supported PoE loads: 802.3af (15.4W), 802.3at (30W), 802.3bt and most non-standard PoE up to 72W

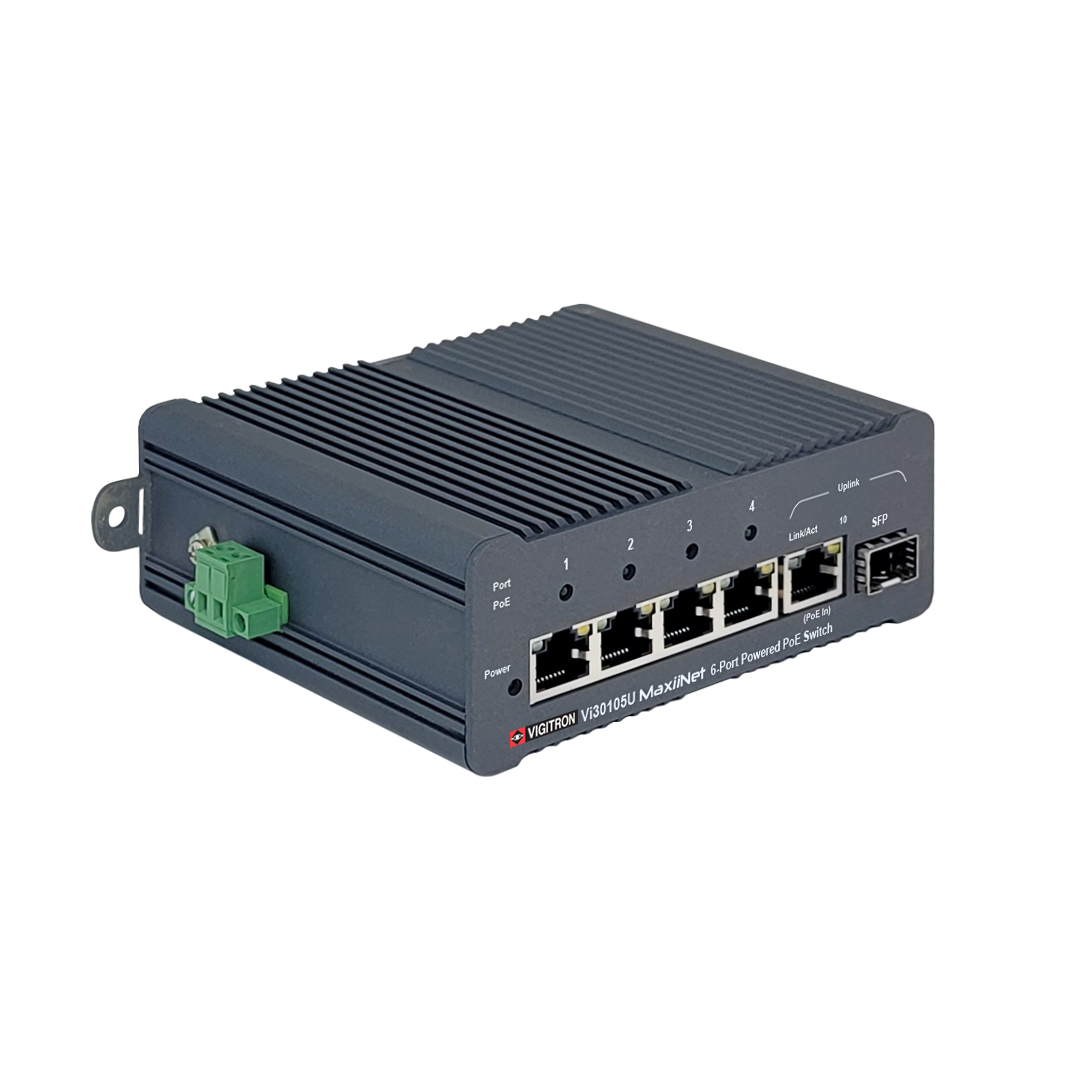

• • Connectors: fiber (MSA compliant SFP socket); Ethernet (5× RJ45); power (2-pin pluggable terminal block)
• • Dimensions: 1.8" × 4.8" × 4.2" (4.6 × 12.2 × 10.6 cm); weight: 1.03 lb (470 g)

Key Features

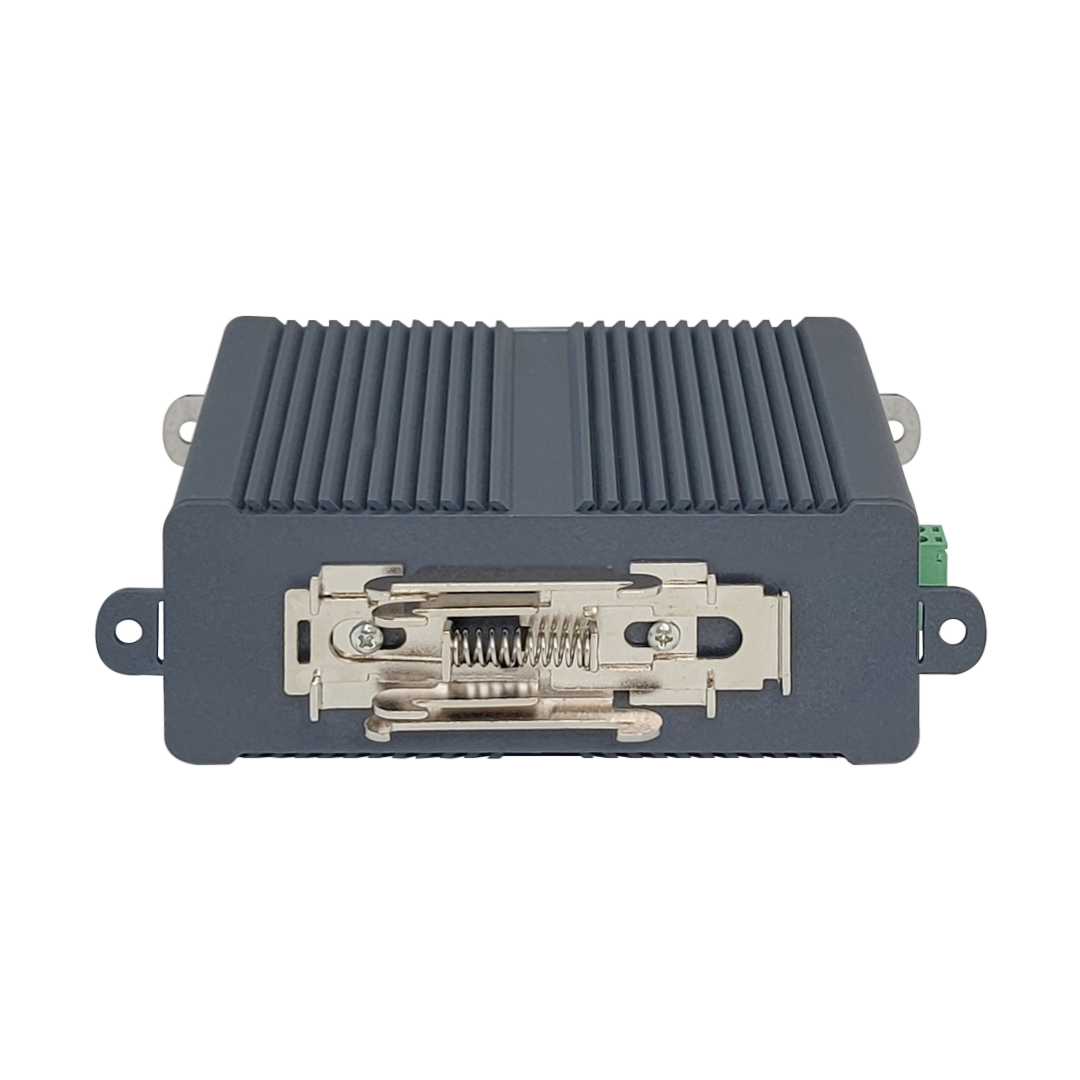

It features intelligent automatic PoE port priority allocation and over-current shutdown protection to manage the power budget safely. It is MPC™ certified for loss-free data transmission and supports 9,600-byte jumbo frames for high-resolution video streams. Type-tested to RFC 2544 standards and housed in durable aluminum, it offers flexible DIN rail, wall, or desk mounting for seamless integration into any network environment.

Technical Context

Compliance with RFC, including 2544, TCP/IP and UDP, and certification for FCC Part 15 Class B and CE emissions. It supports a power supply of 57VDC at up to 370W, with a comprehensive LED array for monitoring power, 1G speeds, and PoE activity. This robust unit ensures reliable connectivity over standard 100-ohm UTP cabling up to 328ft (100m) and is fully RoHS and WEEE compliant.

Installation Notes

Operating reliably from -40°C to +70°C and storing safely up to +85°C. It offers versatile power flexibility via optional accessories, including 57VDC power supplies ranging from 120W to 480W, as well as the Vi0012 for non-PoE 12VDC operation. The unit maintains stable performance in high-moisture areas with up to 95% non-condensing humidity.
