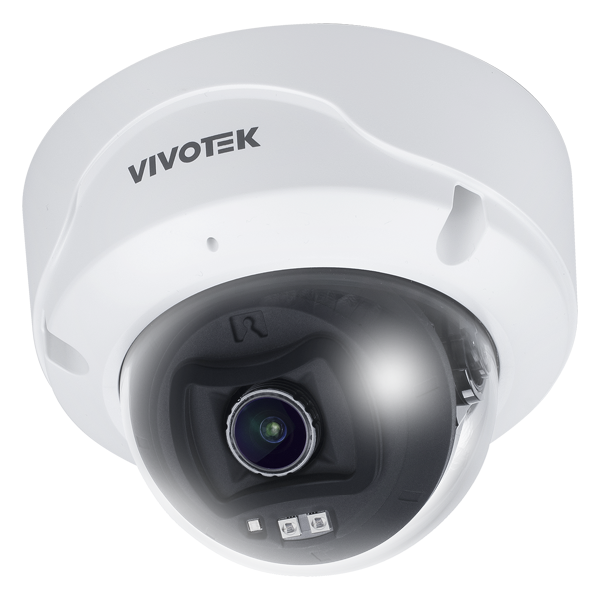

8MP Indoor Fixed Dome Camera
Great Image Performance Powered by RealSight Engine
RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed.
AI Detection for Accurate Alarm
VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.
Enhanced Security with TPM 2.0
The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security.
HDMI Output Direct Stream Live Footage
This camera equipped with a built-in HDMI output port, allowing users to display live streaming on a monitor. Eliminates the need for an extra workstation, video receiver or interfering with the existing decoration.
Build for Easy Cabling
Just simply pass the existing network cable through and plug it directly into the network port. Two-way audio and alarm I/O expansion are also available, interchangeable cable making replacement and installation quick and effortless.
Complete Video Security with VIVOTEK Solution
Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.
Features:
- HDMI output for public display
- AI-powered Smart Motion Detection and Smart VCA
- RealSight Engine for unparalleled visibility
- Built-in IRs up to 30M
- Signed Firmware, Secure Boot, TPM 2.0
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2 GB |
| Camera Speci cations | |
| Image Sensor | 1/1.8" Progressive CMOS |
| Max. Resolution | 3840x2160 (8MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 4.2 mm |
| Aperture | F1.6 |
| Iris Type | Fixed iris |
| Field of View | 110.74° (Horizontal) 59.1° (Vertical) 131.0° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut lter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.015 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 80° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 3840x2160 (8MP) |
| Maximum Streams | 3 video streams (Up to 8 con gurable pro les) |
| Main Stream | 30fps @3840x2160, 3328x1872, 3072x1728, 2688x1520, 2560x1440, 1920x1080, 1280x720, 640x360 (16:9) |
| 2nd Stream | 30fps @1920x1080, 1280x720, 640x360 (16:9) |
| 3rd Stream | 30 fps @ 1280x720, 640x360 (16:9) |
| S/N Ratio | 54 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings video title and time stamp overlay, video orientation ( ip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure, VCA-based Smart IR III Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask pixel calculator Scheduled pro le settings |
| Display Mode | HDMI output (type D; 1080p/720p @30/25fps(60/50Hz)) |
| Audio | |
| Audio Capability | Two-way audio (Full duplex)* * Requires AO-014 cable |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone Input* External line output* * Requires AO-014 cable |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed rmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certi ed Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, , NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Pro le G, S, T supported, speci cation available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time lter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| Solution Integration | |
| VADP Package | Trend Micro (Default, 3-year free trial) |
| Video motion detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording noti cation, SD card life expectancy, shock detection, system boot * Requires AO-014 cable |
| Event Action | Event noti cation via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card * Requires AO-014 cable |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, L-shaped wrench |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | 85.5 m (280.5 ft) |
| Observation (63PPM/ 19PPF) | 34.2 m (112.2 ft) |
| Recognition (125PPM/ 38PPF) | 17.1 m (56.0 ft) |
| Identi cation (250PPM/ 76PPF) | 8.5 m (27.9 ft) |
