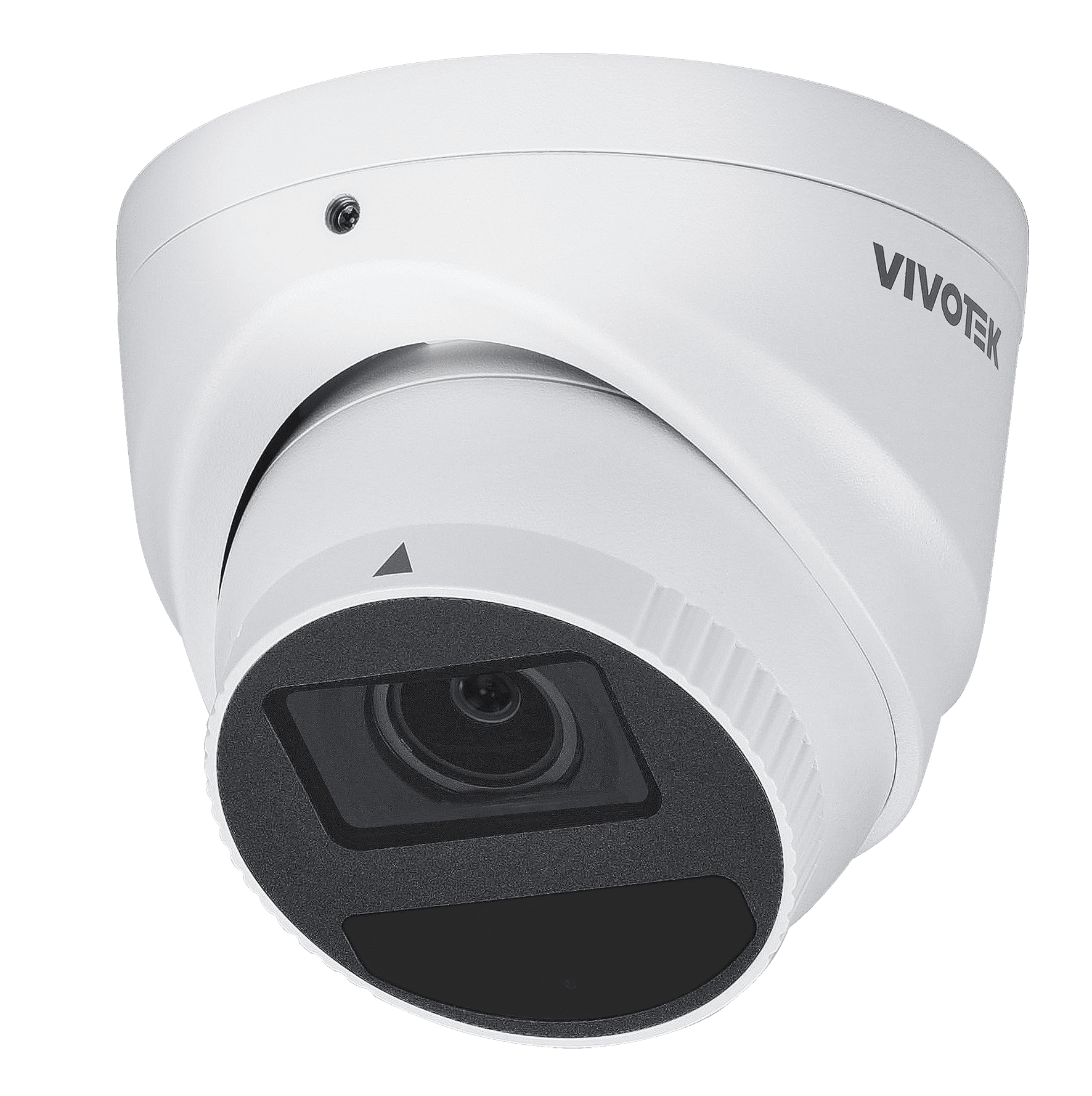

Vivotek - IT9380-HTV-V2 - 5MP Smart IP Outdr IR Turret 2.7-13.5mm Mic
Part number:
Price:
- • Detect people & vehicles with Vision Object Analytics
- • Accurate alarm with Smart VCA
- • Built-in IRs up to 30M with Smart IR
- • Metal housing with IK10 certification
- • Cyber protection via Trend Micro IoT Security
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256MB |
| RAM | 512MB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2880x1616 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.7 ~ 13.5mm |
| Aperture | F1.6 ~ F3.1 |
| Iris Type | Fixed iris |
| Field of View | 111.0° ~ 32.2° (Horizontal) 57.0° ~ 18.0° (Vertical) 136.0° ~ 37.0° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR Illuminator up to 30 meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel Calculator |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2880x1616 |
| Maximum Streams | 3 video streams (Up to 7 configurable profiles) |
| Main Stream | 30fps @ 2880x1616, 2688x1512, 2560x1440, 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) |
| 2nd Stream | 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) |
| 3rd Stream | 30 fps @ 1280x720, 640x360, 480x272 (16:9) |
| S/N Ratio | 52 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, illuminators, anti-overexposure/smart IR Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR Focus: zoom, focus Privacy mask Pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way Audio |
| Compression | MPEG-2 AAC-LC, G.711, G.726 |
| Interface | Built-in microphone External line Input External line output |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS, IEEE 802.1x, Password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, Onvif 21.06 |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: People, Vehicle (4-wheeled), Human / Vehicle Bestshot, Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart VCA - Group 1: Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection) |
| Solution Integration | VADP Package Trend Micro (Default, 1-year free trial) |
| Video Motion Detection | |
| Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Event Trigger | Periodically trigger, system boot, manual trigger, digital input, motion detection, tampering detection, recording notification |
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100/100 Mbps Network/PoE connection Audio line input Audio line output DC 12V power input Digital input *1 Digital output *1 |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 DC 12V |
| Power Consumption | DC12V: Max. 8.4W PoE: Max. 8.49W, typical 3.0W |
| Dimensions | Ø 120 x 90.5 mm |
| Weight | 690 g |
| Certifications | EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1) Environment: IK10 (IEC 62262), IP66, IP67 (IEC 60529) IA: BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/8PPF) | Wide: 67.0 m (219.9 ft) Tele: 205.7 m (674.8 ft) |
| Observation (63PPM/19PPF) | Wide: 26.7 m (87.5 ft) Tele: 81.6 m (267.8 ft) |
| Recognition (125PPM/38PPF) | Wide: 13.3 m (43.7 ft) Tele: 41.0 m (134.4 ft) |
| Identification (250PPM/76PPF) | Wide: 6.6 m (21.7 ft) Tele: 20.5 m (67.1 ft) |
Name
Description
Size
Downloads
File
Certificate CB
0.2mb
File
Certificate CE(UKCA)
0.1mb
File
Certificate FCC
0.1mb
File
Certificate CES
0.1mb
File
Certificate IEC
0.2mb
File
Certificate UL
0.2mb
File
Specification
0.6mb
File
Quick Install Guide
1.6mb
File
Datasheet
0.8mb
The Vivotek IT9380-HTV-V2 is a 5MP outdoor turret camera with a motorized vari-focal lens (2.7~13.5mm) and remote focus, offering 111° to 32° horizontal FOV. It delivers 30 fps at 2880x1616 resolution, features WDR Pro (120dB) for high-contrast scenes, and provides up to 30m of IR night vision with Smart IR. Built with IK10 vandal-resistant and IP66/IP67 weatherproof housing, it operates in extreme temperatures (-30°C to 60°C). On-device AI analytics powered by a deep learning accelerator enable people/vehicle detection, path extraction, and smart VCA (intrusion, loitering, line crossing). H.265 compression and Smart Stream III optimize bandwidth, while Trend Micro IoT Security protects against cyber threats. It supports two-way audio, up to 1TB of edge storage, and ONVIF G/S/T compliance.
