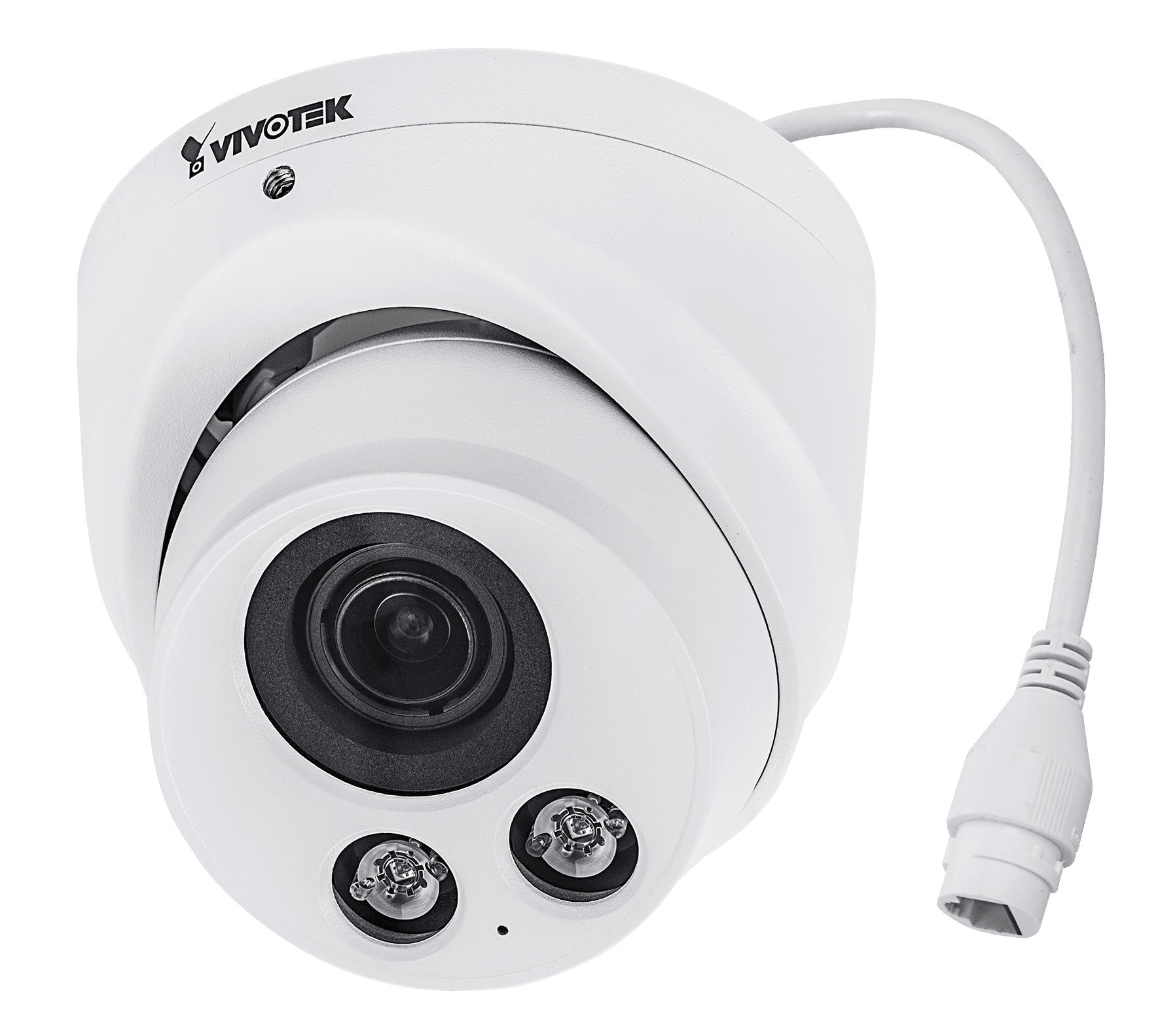

Vivotek - IT9388-HT - 5MP 30M IR H.265 Outdoor WDR Pro Remote Focus Turret, IoT Security
Part number:
IT9388-HT
Price:
5MP 30M IR H.265 Outdoor Turret, Embedded: Trend Micro™ IoT Security for Surveillance Cameras, 2.8~12 mm Remote Focus Lens, 20 fps @ 2560x1920, 120 dB WDR PRo, PoE, 1-Way Audio with built in microphone, MicroSD/SDHC/SDXC Card Slot, ONVIF, Supreme Night.
Features:
- Image Sensor 1/2.7" Progressiv e CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Vari-focal, Remote Focus
- Focal Length f = 2.8~ 12 mm
- Aperture F1.4 ~ F2.8
- Auto-iris Fixed-iris
- Field of View 30° ~ 90° (Horizontal), 23° ~ 65° (Vertical), 38° ~ 115° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day /Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination 0.035 Lux @ F1.4 (Color), <0.005 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot ty pe: MicroSD/SDHC/SDXC card slot
- Seamless Recording
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 20 fps @ 2560x1920
- Maximum Streams 3 simultaneous streams
- S/N Ratio 61 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Time stamp, text overlay, f lip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, video rotation
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone
- Effective Range 5 meters
- Users Live viewing f or up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv 4, IPv 6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interace 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported, specif ication av ailable at www.onv if .org
- Video Motion Detection Five-window video motion detection
- VADP Package Trend Micro IoT Security, Stratocast
- Alarm Triggers Motion detection, periodical trigger, sy stem boot, recording notification, camera tampering detection, audio detection, manual trigger, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification v a email, HTTP, FTP, NAS server, SD card, File upload v ia email, HTTP, FTP, NAS server, SD card
- Connectors RJ-45 cable connector f or 10/100Mbps Network/PoE connection*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0
- Power Consumption Max. 9.8 W (IR on), Max. 6.29 W (IR off )
- Dimensions Ø 120 x 90.5 mm
- Weight 625 g (1.37 lb)
- Casing IP66, IK10(Metal Housing)
- Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
- Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
- Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
- Humidity 90%
- Warranty 24 Months
- Others Quick installation guide, alignment sticker, screw pack, cable gland
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 512MB |
| Camera Features |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 2.8~ 12 mm |
| Aperture | F1.4 ~ F2.8 |
| Auto-iris | Fixed-iris |
| Field of View | 30° ~ 90° (Horizontal) 23° ~ 65° (Vertical) 38° ~ 115° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR II, IR LED*2 |
| Minimum Illumination | 0.035 Lux @ F1.4 (Color) <0.005 Lux @ F1.4 (B/W) 0 Lux with IR illumination o |
| Pan Range | 360° |
| Tilt Range | 70° |
| Rotation Range | 360° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 20 fps @ 2560x1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 61 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings |
| Audio |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card, push notification File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector f or 10/100Mbps Network/PoE connection |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 9.8 W/6.29 W (IR on/of f ) |
| Dimensions | Ø 120 x 90.5 mm |
| Weight | 625 g |
| Certifications | EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Saf ety : UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252) |
| Operating Temperature | Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F) Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F) |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only ) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
