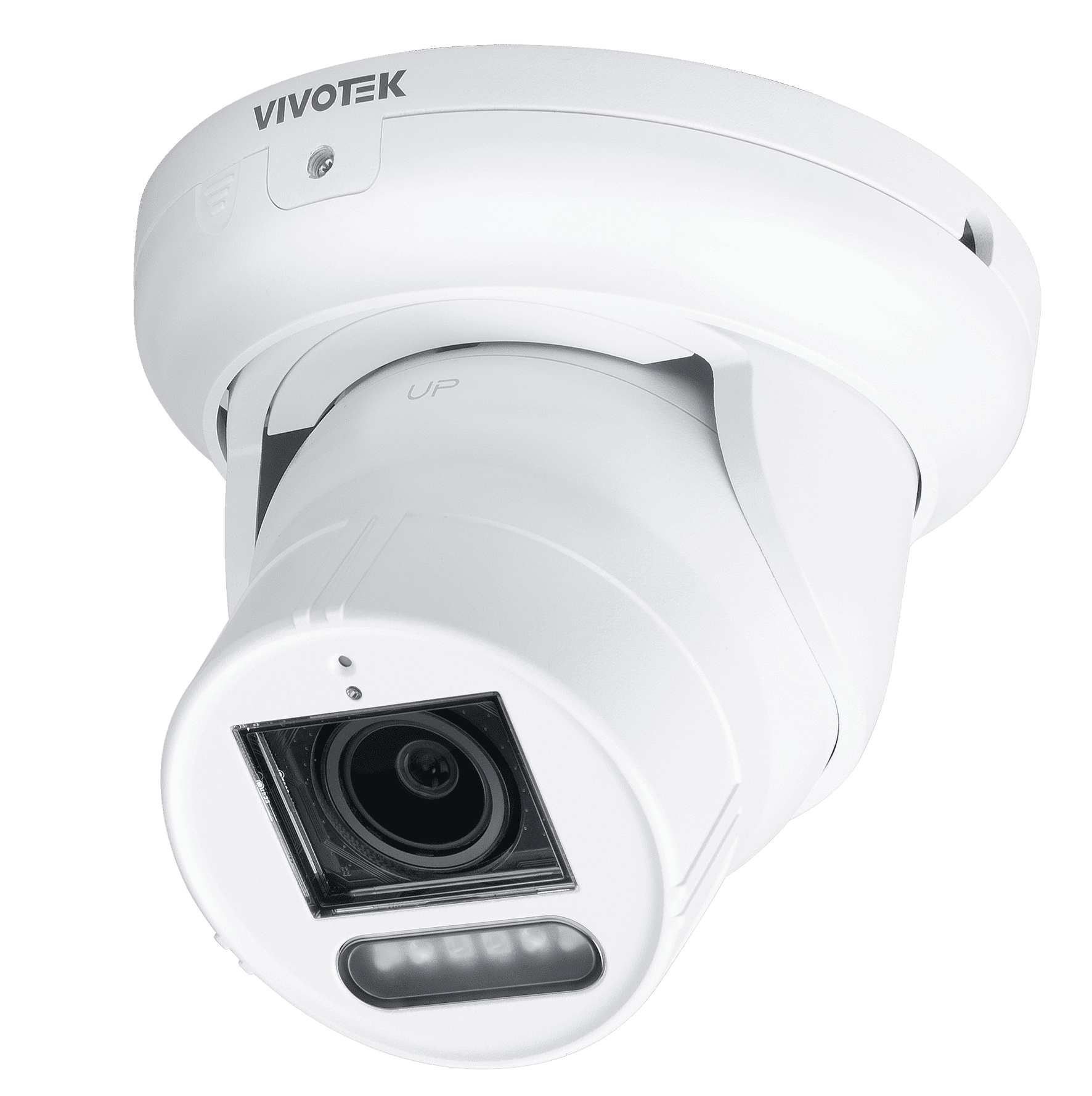

Vivotek - IT939-HTVW-1Y - VORTEX Prem 4K Outdoor VF Turret Dual Light Speaker 1yr lic
Part number:
IT939-HTVW-1Y
Price:
- • Premium Series
- • 8MP Outdoor Turret
- • 2.8~12 mm
- • WDR Pro
- • IP66/IK10
- • FCC/CE/UL/NDAA/TAA
| Camera Features | |
|---|---|
| Image Sensor | 1/1.8" Progressive CMOS |
| Resolution | SD: 1280 x 720, HD: 3840 x 2160 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 4.3~9.8mm |
| Aperture | F1.6 ~ F2.6 |
| Iris | P-iris |
| Field of View | 110.4° ~ 45.1° (Horizontal), 57.9° ~ 25.4° (Vertical), 133.9° ~ 51.8° (Diagonal) |
| Camera Movement | Pan: 350°, Tilt: 70°, Rotate: 350° |
| Shutter Speed | 1/5 sec. to 1/32,000 sec. |
| Day/Night | Yes |
| IR Cut Filter | Yes |
| IR Range | Built-in Warm Light & Infrared (Hybrid) illuminators, IR effective up to 40 meters & warm light effective up to 30 meters with Smart IR/warm light |
| WDR Technology | WDR Pro |
| Minimum Illumination | 0.02 lux @ F1.6 (Color), <0.005 lux @ F1.6 (B/W), 0 lux with IR illumination on |
| Onboard Storage | MicroSD/SDHC/SDXC card slot (Built-in 512GB industrial SD Card) |
| Standard Video Settings | |
| Frame Rate | 15FPS |
| Video Streaming Settings | |
| HD Video | 3840 x 2160 (8MP) @15fps 3Mbps upload |
| SD Video | 1280 x 720 @15fps 300Kbps upload |
| Standard Audio Settings | |
| Audio | Two-way audio (Full duplex) |
| Interface | Built-in microphone, Built-in speaker, External microphone Input, External line output |
| Effective Range | 5 meters |
| Power and Network | |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4W/ 9.6W (IR on/off) |
| Connectivity | RJ-45 cable connector for 10/100 Mbps Network/PoE connection, Audio line input, Audio line output, Digital input: 1, Digital output: 1 |
| Protocols | WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, NTP, RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | Up to 6 clients (Live viewing for 6 clients, live viewing up to 4 clients and playback 2 clients) |
| Security | |
| Security Features | Secure boot, Signed firmware, HTTPS/TLS encryption, Video encryption |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| General | |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F) (IR off), -30°C ~ 45°C (-22°F ~ 113°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Certifications | |
| EMC | CE (EN55032, EN55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A); IC (ICES-003 Issue 7, Class A) |
| Safety | UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 62368-1, IEC/EN 62471); UKCA (BS EN IEC 62368-1) |
| Environment | IK10 (IEC 62262), IP66 (IEC 60529) |
| IA | BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1) |
| Warranty | |
| Warranty | 10 years |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| Mechanical | |
| Weight | 780 g |
| Dimensions | ø 137.9 x 116.9 mm |
| Body | Metal |
| AI Analytics | |
| Audio Detection | Yes |
| Tampering Detection | Yes |
| People Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, Profile Search |
| Vehicle Analytics | Intrusion detection, Line crossing detection, Loitering detection, Attribute Search, Scene Search, Re-Search, LPR Search |
| Object Analytics | Unattended object detection, Missing object detection |
Name
Description
Size
Downloads
File
Specsheet_Outdoor_Turret_Camera.pdf
0.3mb
File
Accessory_Outdoor_Turret_Camera.pdf
1.2mb
