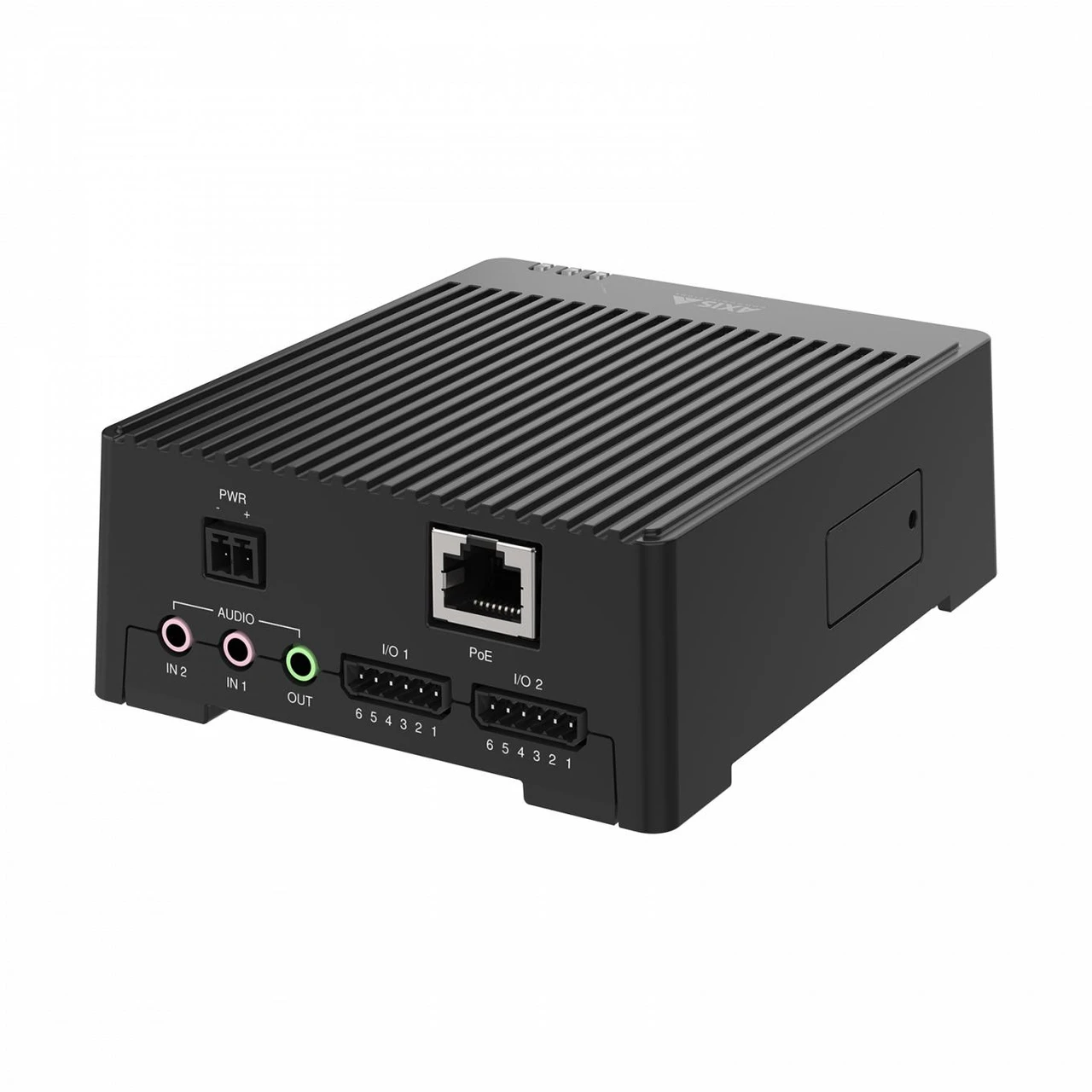

Axis - 02232-001 - Connectivity Hub for Secure Sensor and Audio Integration
Product Overview
The Axis is a professional-grade connectivity hub designed to bridge analog sensors and audio equipment with network video systems. It offers eight supervised I/Os and bidirectional audio support, enabling advanced logic and communication at the edge. Built on ACAP version 4, it supports containerized apps and integrates seamlessly via MQTT, SIP, and VAPIX®.
Key Configuration
- • I/O ports: 8 × supervised configurable I/Os (12V DC output, max load 50mA)
- • Audio: 2 × 3.5mm input ports, 1 × 3.5mm output port
- • Network: 1 × shielded RJ45 10BASE-T/100BASE-TX PoE
- • Additional interfaces: 2 × USB Type A, 1 × RS485/RS422 full duplex, 1 × relay terminal block
- • Power: PoE (IEEE 802.3af/at Type 1 Class 3) or 10–28V DC; typical 4W (PoE) / 5W (DC)
Key Features
The AXIS 02232-001 acts as a secure bridge for non-visual sensors, turning analog inputs into actionable network events. It supports high-quality audio for real-time situational awareness and utilizes ACAP v4 with Docker/container support for bespoke edge applications. Integration is seamless across IoT and VoIP platforms via MQTT, SIP, and VAPIX®, while Axis Edge Vault ensures hardware-based cybersecurity through secure boot and signed firmware.
Technical Context
Built for extreme reliability, the hub is NEMA TS 2 compliant, capable of withstanding temperatures up to 74°C (165°F). It meets rigorous NIST SP500-267 network security standards and features an onboard microSD slot for edge recording. The device is also environmentally conscious, featuring a PVC-free and BFR/CFR-free construction, backed by a 5-year warranty.
Installation Notes
This compact 392g unit is designed for versatile mounting, with optional DIN rail clips and strain relief accessories available. It supports a global range of 12 languages and includes a complete connector kit for immediate setup. With its UL 2043 plenum rating, safe for installation in air-handling spaces, making it ideal for discreet integration in commercial ceilings or industrial enclosures.
| System on Chip (SoC) | |
|---|---|
| Model | i.MX 6ULL |
| Memory | 512 MB RAM, 512 MB Flash |
| Audio | |
| Audio streaming | Two-way, full duplex |
| Audio encoding | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726, ADPCM 8 kHz, Opus 8/16/48 kHz |
| Audio input/output | Input: 2 x 5V Unbalanced microphone / 12V Balanced Phantom power Microphone Input / 12V digital audio input / Line in Output: Line out |
| Network | |
| Security | Password protection, IP address filtering, HTTPS encryption, IEEE 802.1x (EAP-TLS) network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, Axis Edge Vault with Axis device ID |
| Network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, MQTT v3.1.1, Syslog |
| System Integration | |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Event triggers | External input, supervised external input, edge storage events, virtual inputs through API Detectors: audio detection Hardware: network, ring power overcurrent Input Signal: virtual input, digital input, supervised input tampering, manual input Storage: disruption, health issues detected, recording System: system ready, new IP address, IP address removed, live stream active Time: recurrence, use schedule MQTT: stateful, stateless Audio: audio clip playing Digital audio signal: invalid sample rate, contains axis metadata, missing, okay SIP: call state |
| Event actions | Record audio: SD card and network share Notification: email, HTTP, HTTPS, TCP and SNMP trap External output activation, play audio clip, MQTT, make call, status LED |
| Filters | Voice enhancer, Automatic Gain Control (AGC), graphic equalizer |
| General | |
| Casing | Aluminum casing Color: black NCS S 9000-N |
| Mounting | T91A03 DIN Clip A Mounting bracket |
| Sustainability | PVC-free, BFR/CFR free |
| CFR-free | |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4 W, max 12.95 W or 10–28 V DC, typical 5 W, max 13.5 W |
| Connectors | |

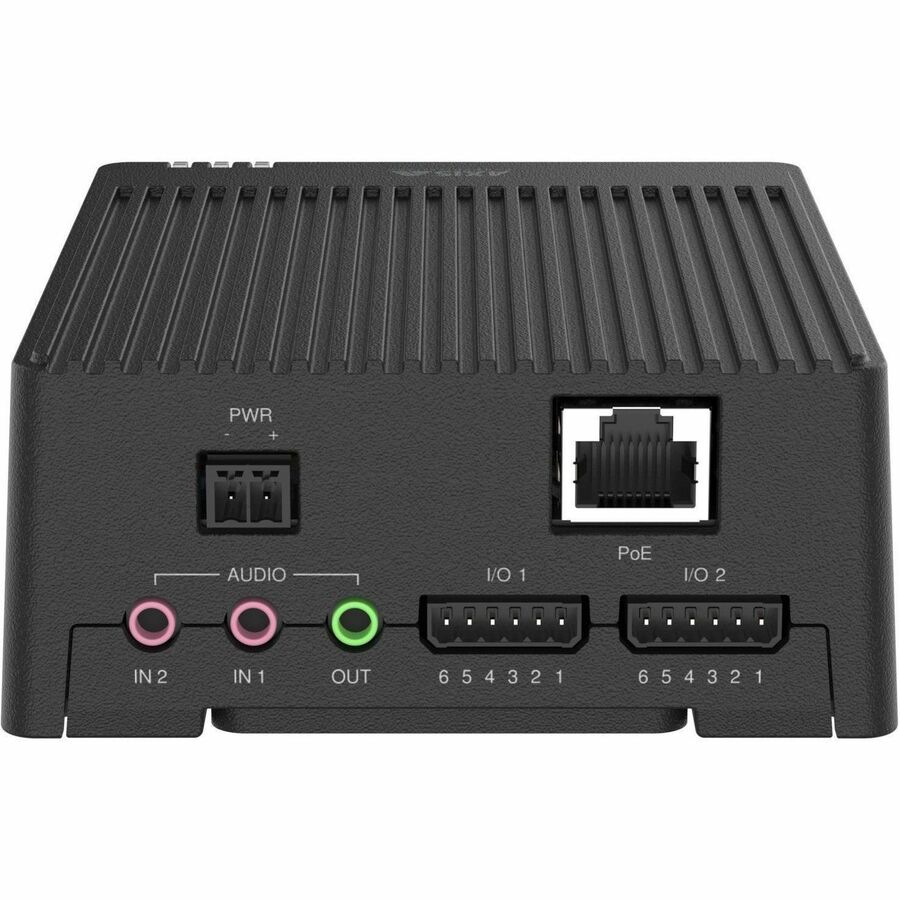

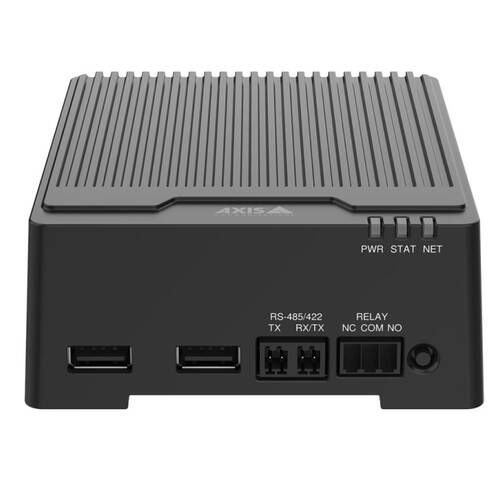

| Connectors | • 1 x Shielded RJ45 10BASE-T/100BASE-TX PoE • 2 x 6-pin 2.5 mm terminal block for 8 x supervised configurable I/Os (12 V DC output, max load 50 mA) • 2 x USB Type A • 1 x RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block • 1 x relay, terminal block • 1 x DC input, terminal block • 2 x 3.5 mm input • 1 x 3.5 mm output |
| Storage | |
| Storage | Support for microSD/microSDHC/microSDXC card |
| Operating Conditions | |
| Operating conditions | • -40 °C to 65 °C (-40 °F to 149 °F) • Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) • Humidity 10–85% RH (non-condensing) |
| Storage conditions | • -40 °C to 65 °C (-40 °F to 149 °F) • Humidity 5-95% RH (non-condensing) |
| Approvals | |
| EMC | CISPR 35, EN 50121-4, EN 50130-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Safety | CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, UL 2043 |
| Environment | IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, NEMA TS 2 (2.2.7-2.2.9) |
| Network | NIST SP500-267 |
| Dimensions & Weight | |
| Dimensions | • Height: 42.2 mm (1.7 in) • Depth: 117.8 mm (4.6 in) • Width: 99 mm (3.9 in) |
| Weight | 392 g (0.9 lb) |
| Accessories | |
| Included accessories | Installation guide, connector kit, terminal block connector |
| Optional accessories | DIN T91A03 Clip A, AXIS TD3901 Strain Relief, AXIS T8415 Wireless Installation Tool, AXIS Surveillance Cards For more accessories, see axis.com |
| Languages & Warranty | |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Polish, Traditional Chinese |
| Warranty | 5-year warranty |
