Cyber Power - PDU15B2F8R - 15A (Derated to 12A), 120 V, 50Hz/60Hz, NEMA 5-15P plug, 10 NEMA 5-15R, 1U Rackmount, 15 ft Cord
Part number:
PDU15B2F8R
Price:

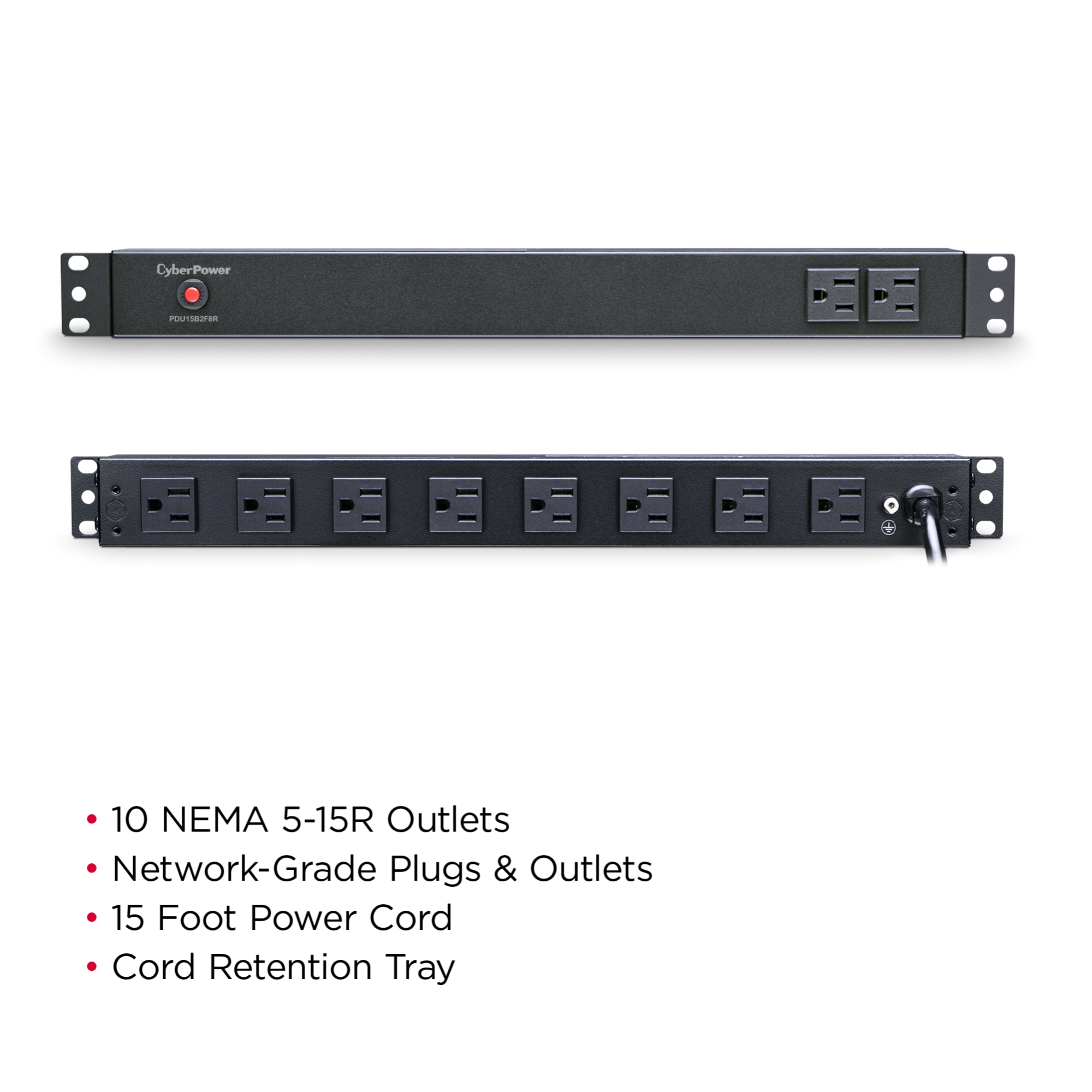

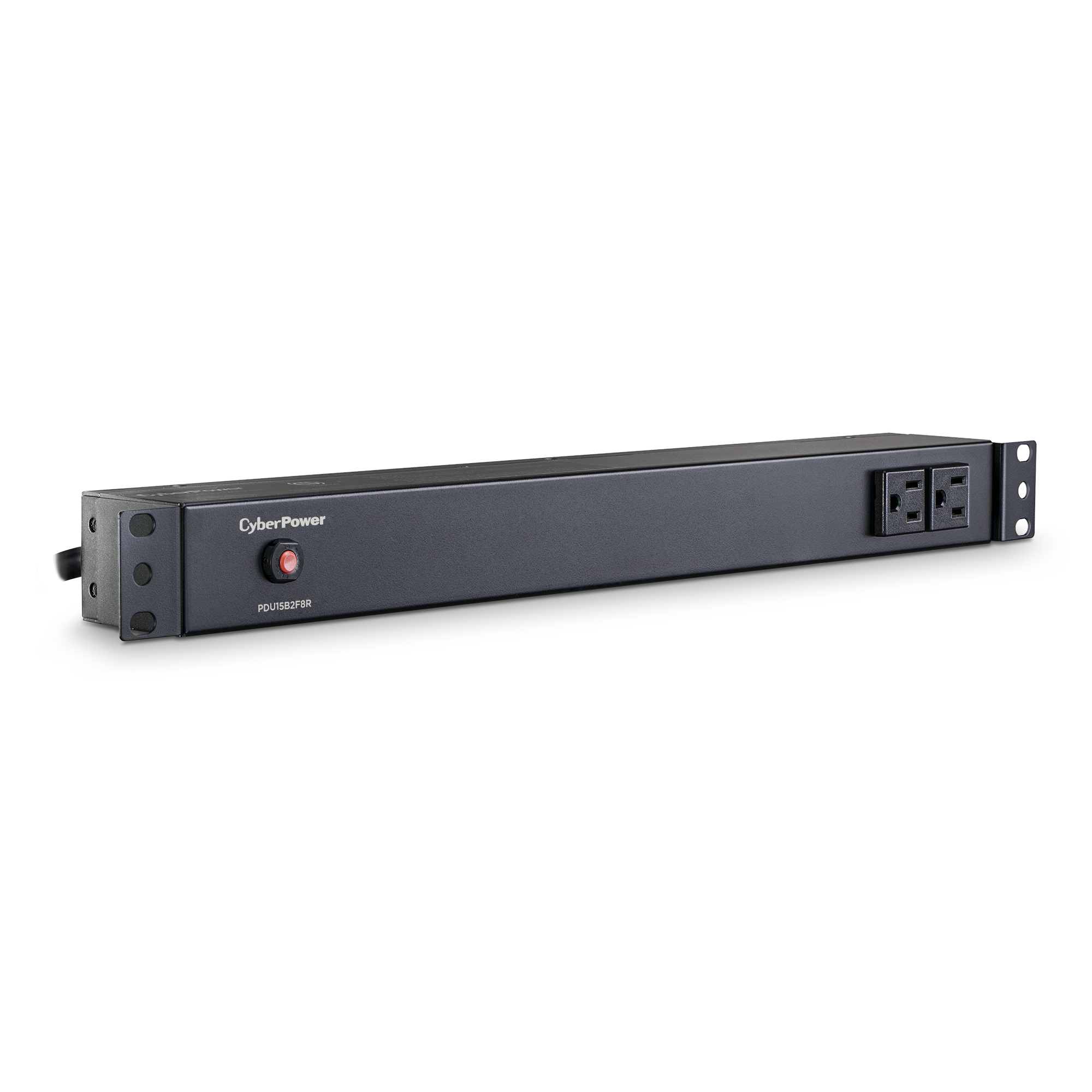

The CyberPower PDU15B2F8R, a 10-outlet (2 front, 8 rear) rackmount basic power distribution unit (PDU), provides 120V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU15B2F8R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.



Product Features:
  • Extended Battery Module
    Expands runtime and quickly restores full backup power with Fast Charge Technology.



  • Smart Battery Management
    Uses a three-cycle charging mode that improves battery life and reduces generated heat.



  • Hot-Swappable Batteries
    Can be replaced without powering down vital equipment.



  • Rack/Tower Configuration
    Allows for horizontal rack or vertical tower installation.



  • Three-Year Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
Input
Cord Length15 ft (4.6 m)
Derated Input Current12:00 AM
Input Frequency Range50 Hz – 60 Hz
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
Plug StyleStraight
Output
Nominal Output Voltage100 – 125 VAC
Outlet Type10 – NEMA 5-15R
Outlets – Front2

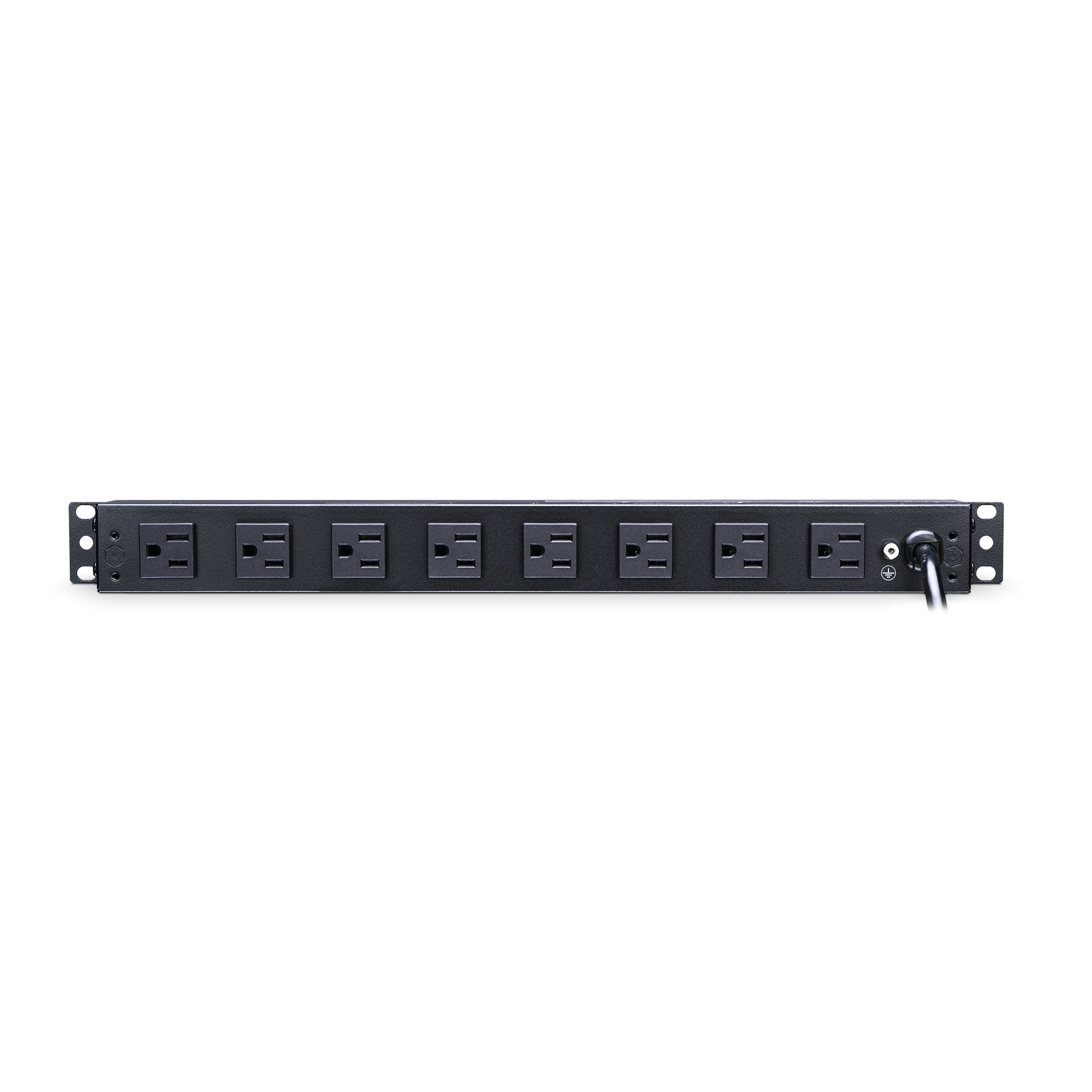

Outlets – Rear8
Outlets – Total10
Overload Protection15A
USB Charge PortNo
Physical
Adjustable Mounting Brackets2 sets (L-Short, L-Long)
ColorBlack
Cord Retention Tray/Cord OrganizersYes
External Site Ground PinYes
Form Factors Supported1U Rackmount
0U Vertical Rackmount
Undercounter Installation Supported
Material of ConstructionMetal
Rack Height1U
StyleRackmount
Vertical Rackmount
Under-Counter

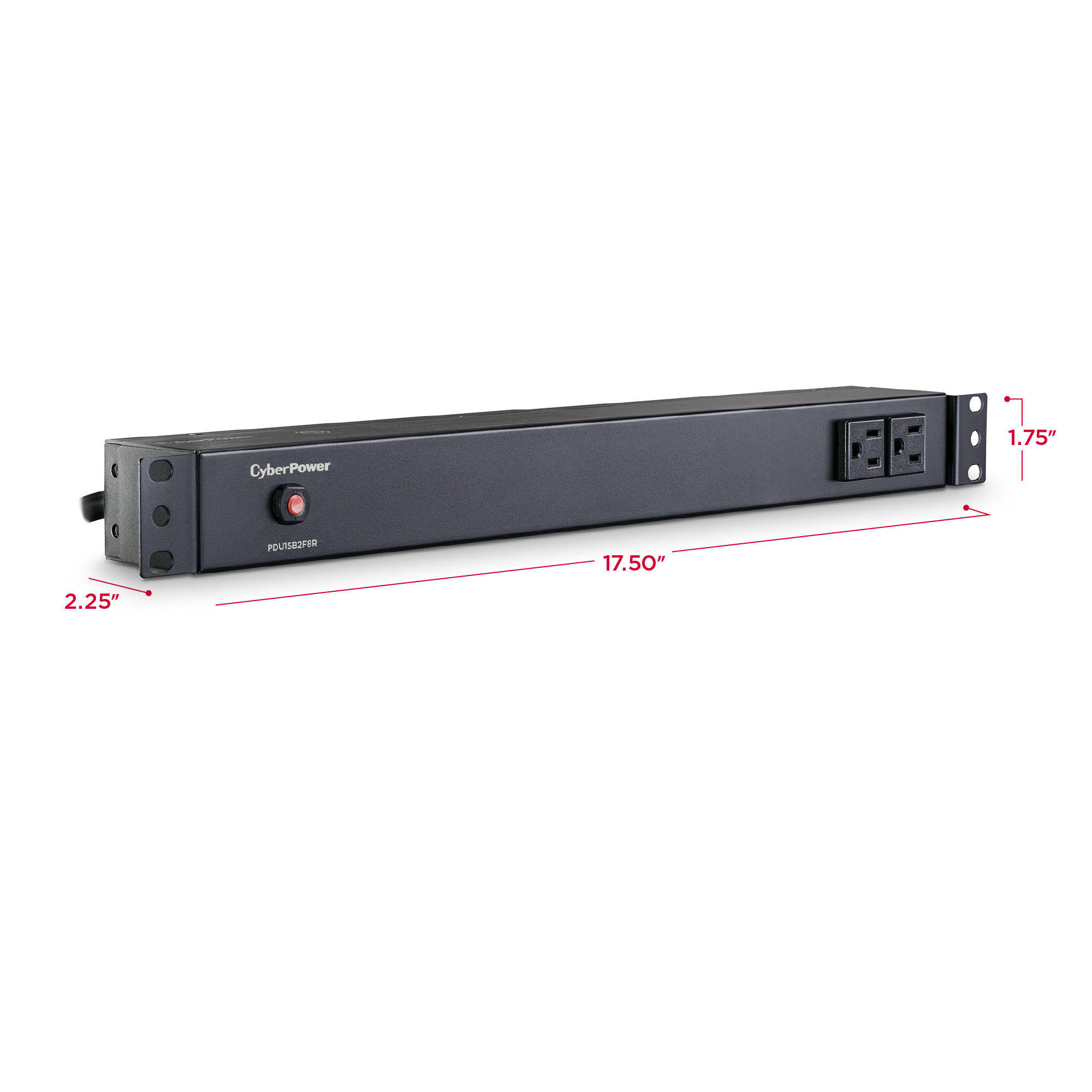

Dimensions
Physical Dimensions – (WxHxD) (cm)44.45 x 4.45 x 5.72 (cm)
Physical Dimensions – (WxHxD) (in)17.5 x 1.75 x 2.25 (in)
Physical Dimensions – (WxHxD) (mm)445 x 44 x 57 (mm)
Physical Weight (kg)1.81
Physical Weight (lb)4
Dimensions – Shipping
Shipping – Weight (kg)9.47
Shipping – Weight (lb)20.88
Shipping Dimensions – (WxHxD) (cm)17.83 x 6.68 x 51.13 (cm)
Shipping Dimensions – (WxHxD) (in)7.02 x 2.63 x 20.13 (in)
Shipping Dimensions – (WxHxD) (mm)178.31 x 66.8 x 511.3 (mm)
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 95 °F (0 – 35 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
EnvironmentalRoHS Compliant
SafetyUL1363 certified by ETL
Warranty
Product WarrantyLimited Lifetime Warranty
Name
Description
Size
Downloads
File
Datasheet
0.4mb
