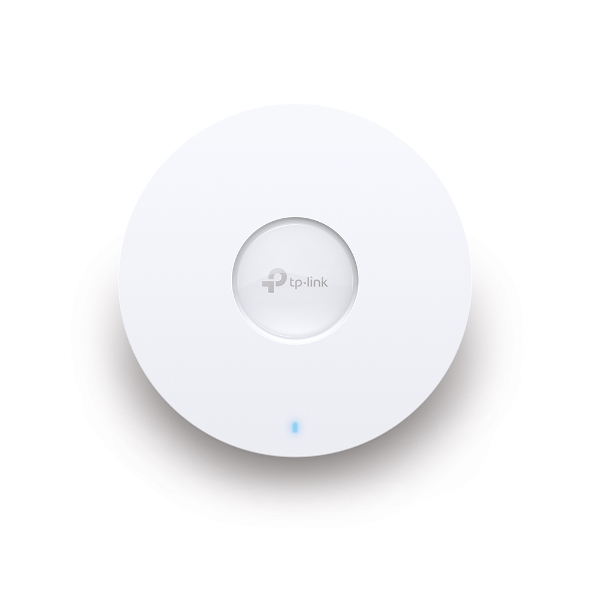

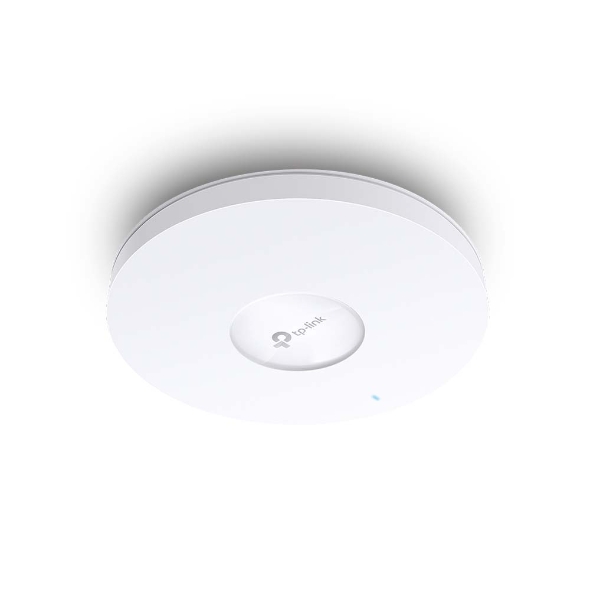

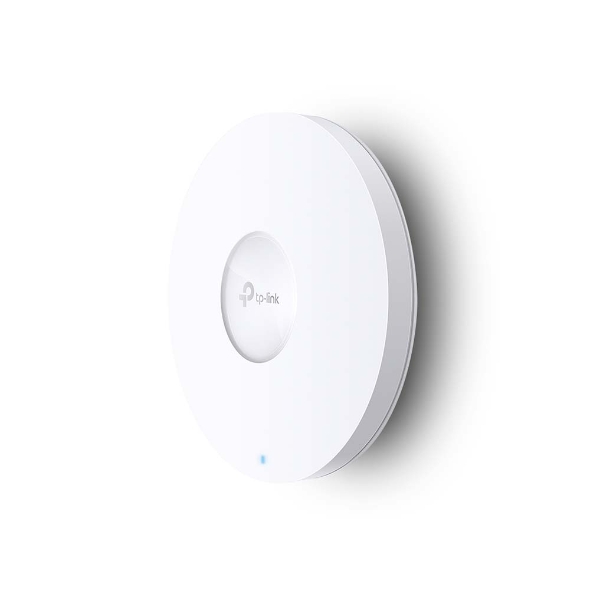

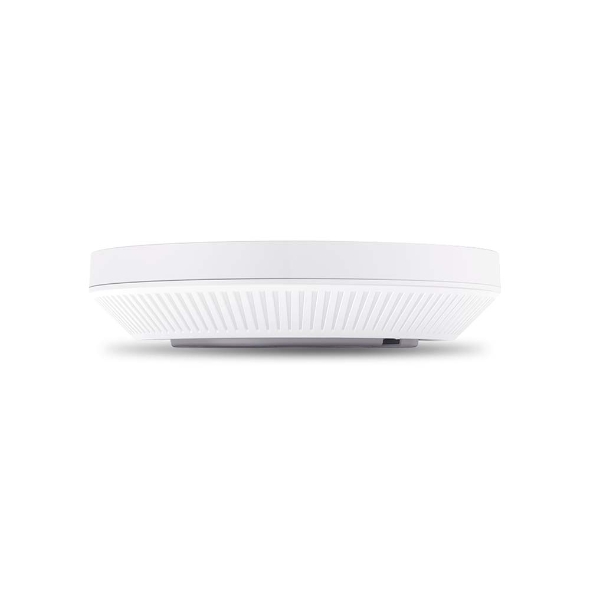

TP-Link - EAP620 HD_V3 - AX1800 CEILING MOUNT WI-FI 6 ACCS ACCESS POINT
Part number:
EAP620 HD_V3
Price:
AX1800 Ceiling Mount WiFi 6 Access Point
Features:
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Ultra-Slim Design: Φ6.3 in. × 1.3 in. elegant design brings more agility.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter included), 802.3at PoE+, and Passive PoE for flexible installations.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE and Passive PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 48 V Passive PoE | |
| • 12 V / 1.5 A DC | |
| Power Consumption | • EU: 14.4 W (For PoE); 13.1 W (for DC) |
| • US: 14.9 W (For PoE); 13.4 W (for DC) | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni Antenna |
| • 2.4 GHz: 2× 4 dBi | |
| • 5 GHz: 2× 5 dBi | |
| Mounting | • Ceiling /Wall Mounting (Kits included) |
| • Junction Box Mounting | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 1201 Mbps |
| • 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | • 1024-QAM |
| • 4× Longer OFDM Symbol | |
| • OFDMA | |
| • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| • Enable/Disable Wireless Radio | |
| • Automatic Channel Assignment | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS(WMM) | |
| • MU-MIMO | |
| • Seamless Roaming△ | |
| • Omada Mesh△ | |
| • Band Steering | |
| • Load Balance | |
| • Airtime Fairness | |
| • Beamforming | |
| • Rate Limit | |
| • Reboot Schedule | |
| • Wireless Schedule | |
| • Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | • Captive Portal Authentication△ |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz band1/2, EIRP) <25 dBm (5 GHz band3) | |
| • FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller |
| • Omada Hardware Controller (OC300) | |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller (Supported by EAP620 HD v2.0 and above) |
