Name: TRENDNET - TEW-929DRU-CA - AX1800 Dual-Band WiFi 6 Gigabit Dual-WAN VPN SMB Router
Brand: Trendnet
SKU: TEW-929DRU-CA

Home — Brands — Trendnet — Wireless —

TRENDNET - TEW-929DRU-CA - AX1800 Dual-Band WiFi 6 Gigabit Dual-WAN VPN SMB Router

Part number:

TEW-929DRU-CA

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

TRENDnet’s AX1800 Dual-Band Wireless Gigabit Dual-WAN VPN SMB Router, model TEW-929DRU, features two concurrent WiFi bands to maximize device networking speeds: two separate high performance 802.11ax networks (5GHz: 1201Mbps / 2.4GHz: 574Mbps). It features dual-WAN ports for load balancing or fail-over modes, and encrypted Virtual Private Network (VPN) access for remote users. Dual-WAN ports smooth network loading, minimize network downtime, and allow employees to access your network from the Internet—all with a single router. This WiFi 6 router comes equipped with a 2.5GBASE-T RJ-45 LAN port that provides higher gigabit speeds capable of up to 2.5Gbps over your existing Cat5e or better cabling. Providing faster throughput to your 2.5G compatible devices such as Network attached storage and high-speed WiFi 6 access points.

This wireless router features advanced management, QoS, VLAN, VPN, and other capabilities to ensure optimal performance, scalability, and protection of your network. Intelligently manage your offices’ web access with our advanced content filtering tool powered by Bark, increase employee productivity and finally take control of your internet.

Easily manage and configure TRENDnet’s AX1800 Dual-Band WiFi Gigabit Dual-WAN VPN SMB Router remotely with TRENDnet Hive. TRENDnet Hive is a remote network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with this WiFi 6 dual-WAN VPN router and TRENDnet’s reliable cloud service.

Features:

Dual-WAN ports support load-balancing and fail-over modes
1x 2.5G LAN port, 2 x Gigabit LAN ports, 1 x RJ-45 console port, 1 x USB 2.0 share port
SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
IEEE 802.1Q inter-VLAN routing
Two concurrent WiFi bands maximize device networking speeds
Dual Band support: 1201Mbps (5GHz) / 574Mbps (2.4GHz)
Pre-encrypted WiFi for your convenience
Wireless client isolation
Web browser and CLI management
Online firmware notification and upgrade
QoS for VoIP and media streaming applications
Deep Packet Inspection traffic monitoring
Advanced web content filtering service powered by Bark
Remote cloud management with TRENDnet Hive (Additional fee applies)
NDAA / TAA compliant (U.S. and Canada only)

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3bz (2.5GBASE-T) IEEE 802.1Q IEEE 802.1X IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n (up to 400Mbps @ 256QAM)* IEEE 802.11ac (up to 867Mbps @ 256QAM)* IEEE 802.11ax Wi-Fi 6 (5GHz: up to 1201Mbps, 2.4GHz: up to 574Mbps @ 1024QAM)*

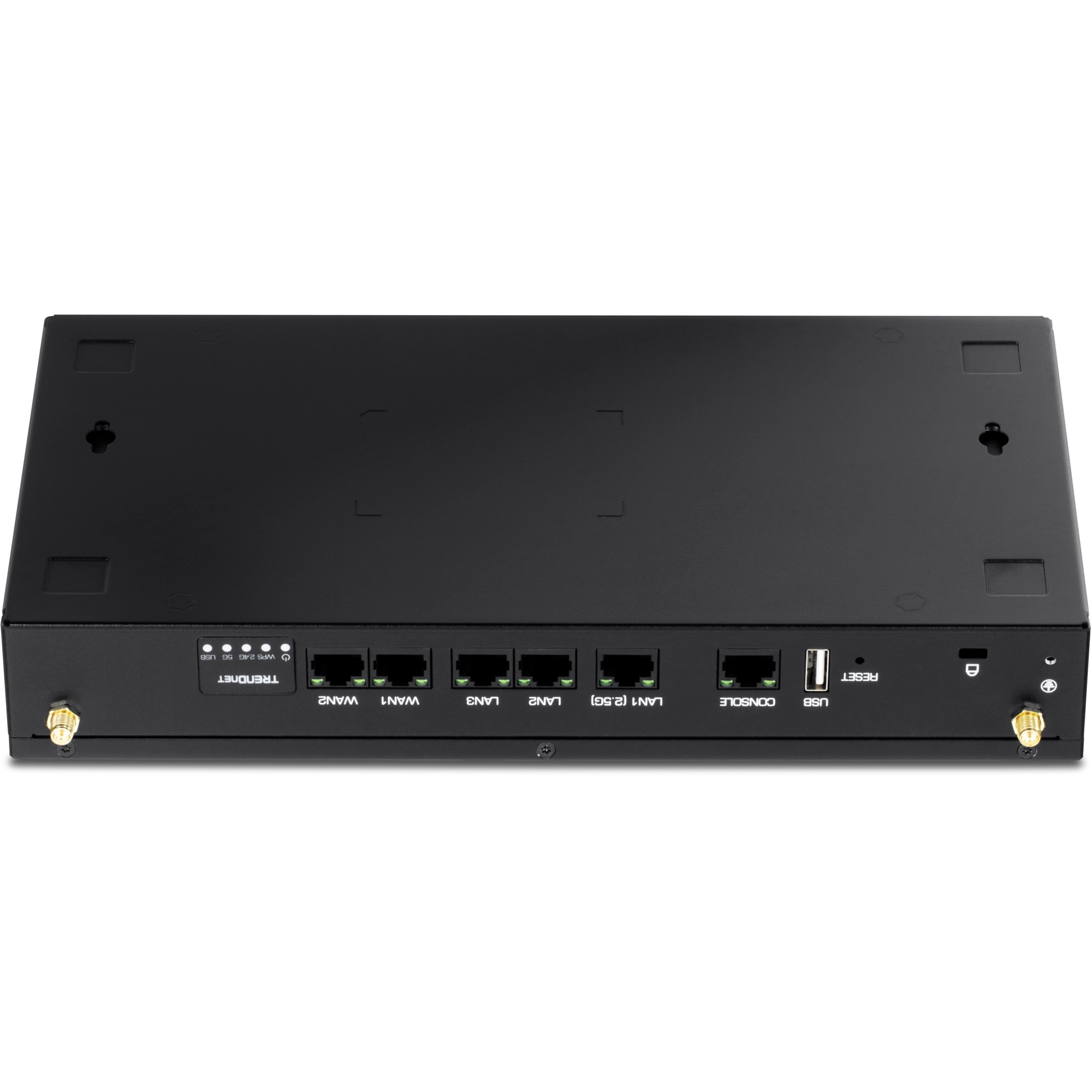

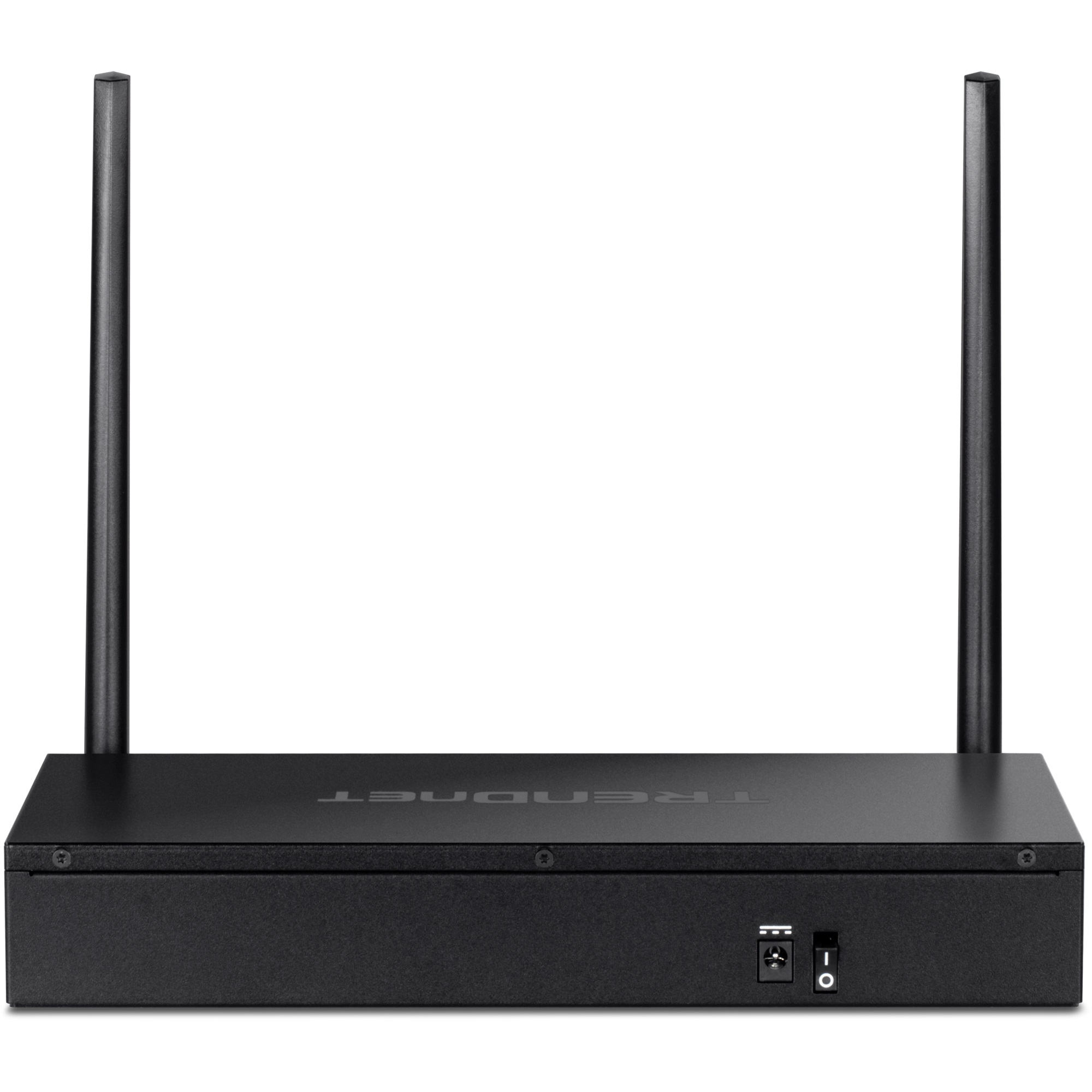

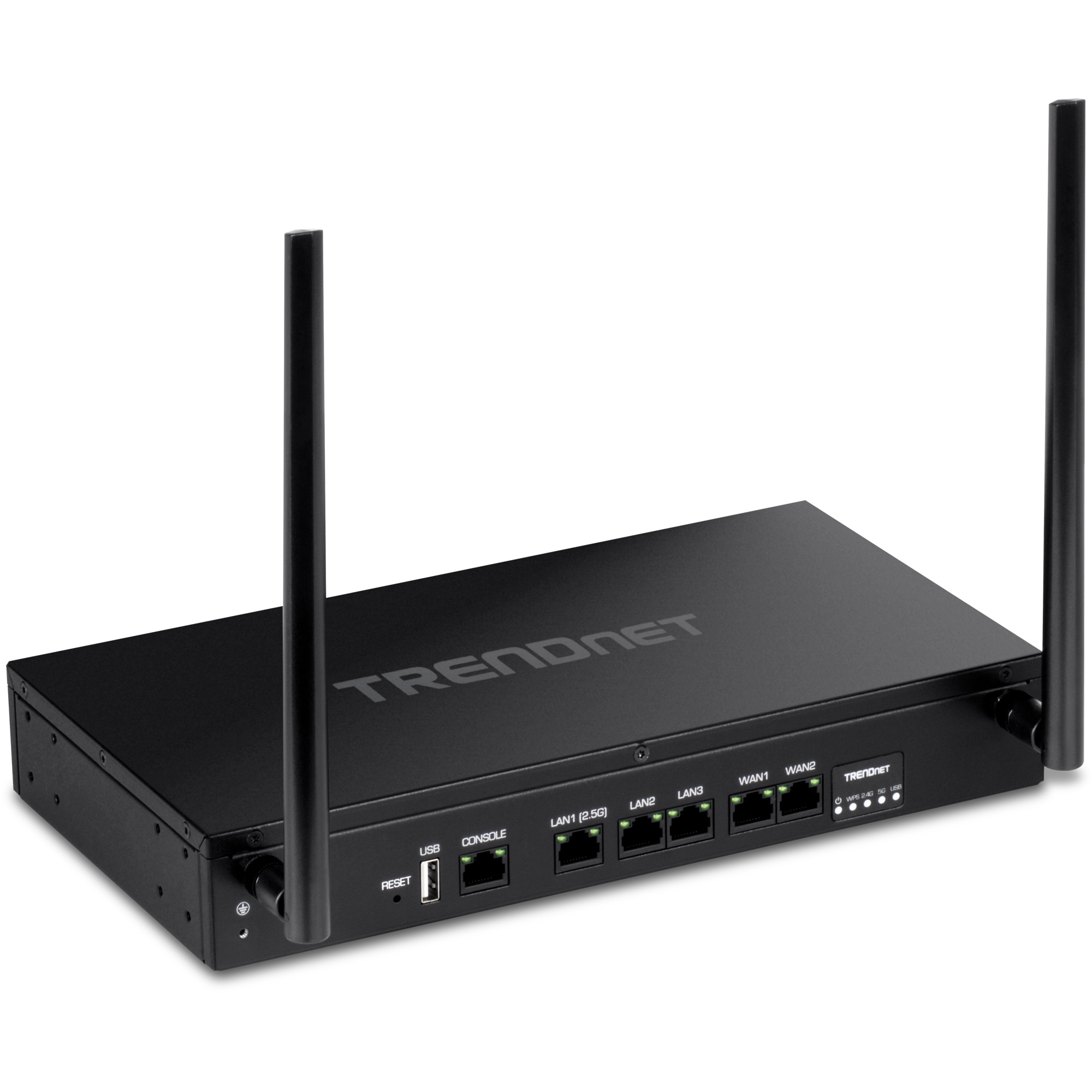

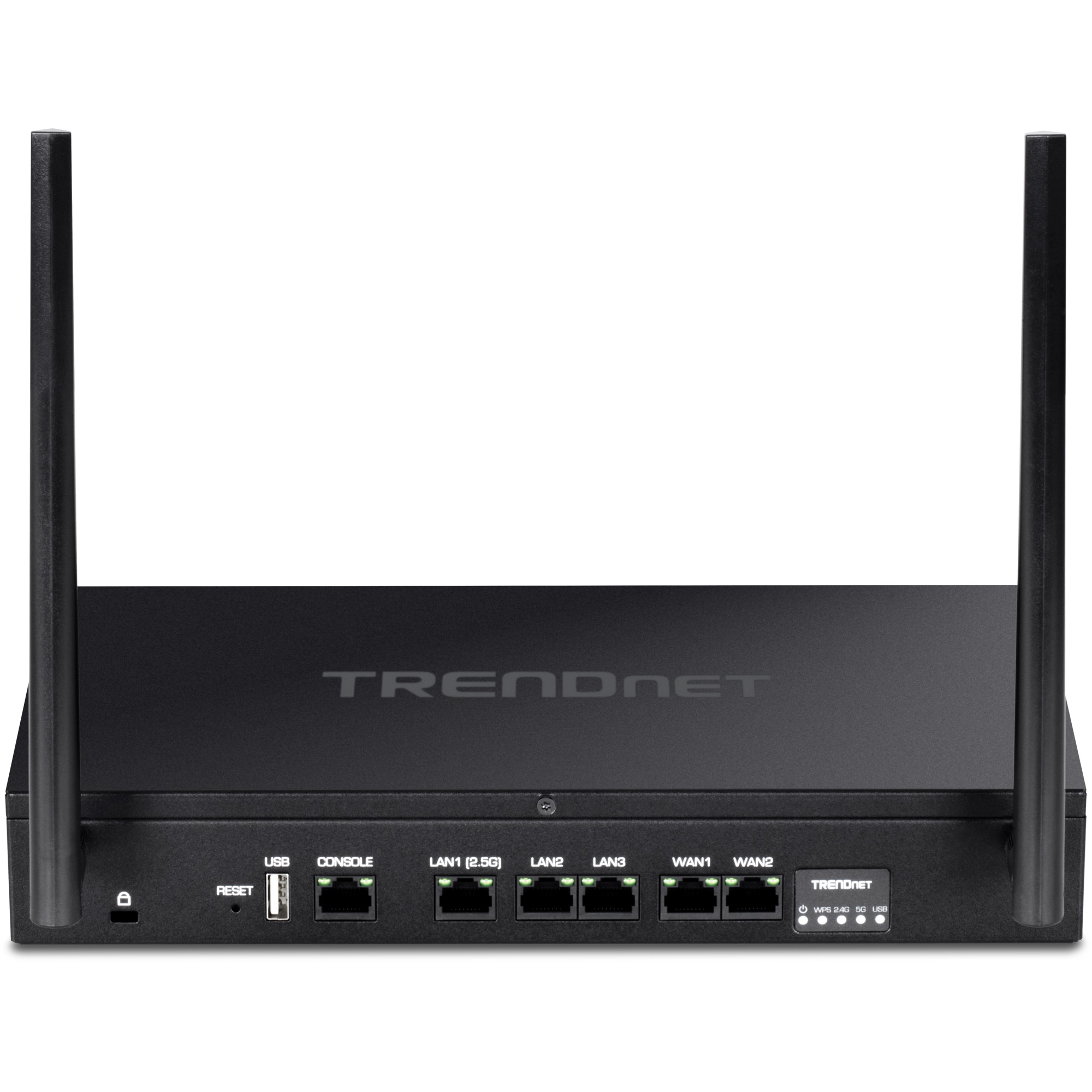

Device Interface	1 x 2.5GbE LAN port (LAN1) 2 x Gigabit LAN ports (LAN2-LAN3) 2 x Gigabit WAN ports (WAN failover / load balancing) 1 x USB 2.0 (USB Storage Device Sharing) 1 x RJ-45 console port Security slot Grounding screw Power switch Reset button LED indicators
Performance	NAT (LAN-to-WAN) throughput: 900Mbps Routing performance: 900Mbps Maximum concurrent sessions: 32,768 Maximum number of VLANs: 8 (ID: 1-4094) IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 64Mbps SSL VPN (OpenVPN) Throughput (Blowfish/SHA-1/Bridge): 12Mbps
Virtual Private Networking	SSL VPN Server Mode (OpenVPN) (Up to 10 tunnels) SSL VPN Client Mode (OpenVPN) SSL (OpenVPN) Encryption: BF-CBC, AES-128-CBC, AES-256-CBC SSL (OpenVPN) HMAC Authentication: SHA1, SHA256 SSL VPN Certificate: RSA IPsec VPN Server (Dynamic) / Site-to-Site (Up to 15 tunnels) IPsec Encryption: DES, 3DES, AES-128/256 IPsec Authentication: MD5, SHA1, SHA2-256, Certificate: X.509v3 IPsec Key Exchange: IKE: IKEv1/2, Main Mode, RSA, Pre-shared Key, DH Groups 1/2/5/14 IPsec Protocols: ESP (Transport/Tunnel), PFS (Per DH Groups 1/2/5/14, DPD (Dead Peer Detection), Local/Remote ID: IP Address, FQDN (Fully Qualified Domain Name) IPsec NAT Traversal IPsec VPN failover support PPTP/L2TP VPN Server (Up to 10 tunnels) L2TP with IPsec VPN Server (Up to 8 tunnels shared with L2TP) PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec PPTP/L2TP Authentication: MS-CHAPv1/2
Networking	WAN Modes: NAT, Classical Routing NAT Modes: NAT, PAT (Port Address Translation), One-to-One NAT WiFi client bridge mode ISP IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP, L2TP IPv4 WAN client ID and vendor class for DHCP, override/clone MAC address ISP IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE IPv6 LAN Modes: SLAAC, Stateless/Stateful DHCPv6 VLAN ID assignment on WAN interface Routing: Static, RIPv1/v2, OSPFv1/2, routing policies (Up to 20 entries) Static ARP entries (Up to 32 entries) Static host entries (Up to 32 entries) Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces) SSID per VLAN assignment DHCP Server/Relay DHCP static leases/reservation Dynamic DNS: dynu.com, freedns.afraid.org, changeip.com, ydns.io, duckdns.org, no-ip.com WAN Failover WAN Load Balancing
Access Control	Wireless encryption: WPA2/WPA3-Personal (PSK), WPA2/WPA3-Enterprise (EAP) Wireless captive portal (external RADIUS authentication, internal user authentication, redirect URL) NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interfaces ALG: PPTP/L2TP/IPsec VPN passthrough, PPPoE Relay, FTP/TFTP/SNMP/SIP/RTSP/IRC/H.323 passthrough MAC & IP filtering Advanced Traffic/Firewall rules configuration Custom scheduling for access control rules Wireless guest network WPS (WiFi Protected Setup™) Virtual PBC (Push Button), PIN Wireless client isolation DoS prevention (TCP/UDP/ICMP Flood Prevention) Advanced web content filtering service powered by Bark RADIUS Server
Quality of Service	User defined classification rules with 4 priority queues WMM (Wireless Multimedia Extensions)
Management/Monitoring	CLI (Console/Telnet/SSH) command line management HTTP/HTTPS web based management Security certificates: Create, Import/Export Scheduled automatic reboot Scheduled Wake-on-LAN (WoL) for remote WoL device View ARP and routing table entries View CPU load, traffic/wireless usage, NAT sessions, and Internet bandwidth usage Internet speed test Internal system logging Manual or online firmware upgrade and notification Backup and restore configuration Internal logging Ping watchdog DPI (nDPI deep packet inspection) monitoring Ping, traceroute, ns-lookup, Internet speed test, and multi-WAN diagnostic tools
Hive Cloud Management**	Configure, monitor, and manage through the TRENDnet Hive Cloud Management Portal remotely via PC or Mac web browser Multi-device management Provisioning through scheduled batch firmware or configuration updates for multiple switches Event/hardware network monitoring (CPU/memory utilization) Configure features such as interface IP address settings, VLANs, WiFi, VPN, WAN failover and load balancing, DMZ, port forward, and firewall access control settings through cloud management
Frequency	2.412 – 2.462GHz 5.180 – 5.250GHz, 5.745 – 5.825GHz
Modulation	802.11b: CCK, DQPSK, DBPSK 802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM 802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM 802.11ax: BPSK, QPSK, and 16/64/256/1024-QAM
Media Access Protocol	CSMA/CA with ACK

Antenna Gain	2 x dual band detachable/external antennas (2.4GHz: 3.2 dBi (max.) / 5GHz: 5.5 dBi)
Wireless Output Power (max output power without antenna gain)	802.11b/g/n/ac/ax (2.4GHz): FCC: 24 dBm (max.) / IC: 24 dBm (max.) 802.11a/n/ac/ax (5GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.)
Receiving Sensitivity (per chain)	802.11a: -70 dBm (typical) @ 54Mbps 802.11b: -80 dBm (typical) @ 11Mbps 802.11g: -69 dBm (typical) @ 54Mbps 802.11n (2.4GHz): -59 dBm (typical) @ 300Mbps 802.11n (5GHz): -56 dBm (typical) @ 300Mbps 802.11ac: -56 dBm (typical) @ 866Mbps 802.11ax (2.4GHz): -50 dBm (typical) @ 574Mbps 802.11ax (5GHz): -51 dBm (typical) @ 1201Mbps
Wireless Channels	2.4GHz: FCC: 1–11 5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165
Power	Input: 100 – 240 V AC, 50 – 60 Hz, 0.9A Output: 12V DC, 2A external power adapter Max. Consumption: 17.4W
Operating Temperature	0° – 40° C (32° – 104° F)
Operating Humidity	Max. 90% non-condensing
Certifications	FCC IC
Dimensions	280 x 160 x 44.45mm (11 x 6.3 x 1.75 in.) Rack mountable 1U height
Weight	1.215kg (2.68 lbs.)
Warranty	3 year

PACKAGE CONTENTS

TEW-929DRU
Quick Installation Guide
2 x detachable high gain antennas
Network cable (1.5m / 5 ft.)
RJ-45 to RS-232 console cable (1.5m / 5 ft.)
Power adapter (12V DC, 2A)
Rackmount kit
