Dahua - DHI-NEB0105HI-4K - 1-Channel Distributed Encoding Box
Part number:
DHI-NEB0105HI-4K
Price:
Dahua’s Media Encoder Box, is a powerful audio-visual encoding solution designed to expand the capabilities of advanced video security systems. Its seamless integration options with Dahua’s NVR or RTSP protocol allow for streamlined installation, deployment, and administration, resulting in significant cost savings. Additionally, the Media Encoder Box enables video transmission over long distances, overcoming the limitations of traditional HDMI cables. When connected to the network, it allows for long-distance video feeds to Dahua’s NVRs, making it ideal for auditing computer operations in 4K or distributing video feeds to multiple monitors when used in conjunction with our decoder.
Features:
- Supports 1-channel DP and HDMI 1-channel HDMI independent collection and 4K resolution
- H.265 real-time encoding
- Powerful 10/100/1000M self-adaptive Ethernet interface
- Compatible with TCP, IP, RTP, RTSP, HTTP, TCP, UDP, DHCP, NTP network protocols
- Remote reboot/upgrade/default setting operations
- Provides SDK, demo software, and development manual
- 1-channel HDMI and HDMI loop output
- Uses two (2) redundant power input channels: PoE and 12 VDC
| Functions | ||
| System | ||
| Processor | High-performance Industrial Micro Processor | |
| Operating System | Embedded LINUX | |
| Interface | ||

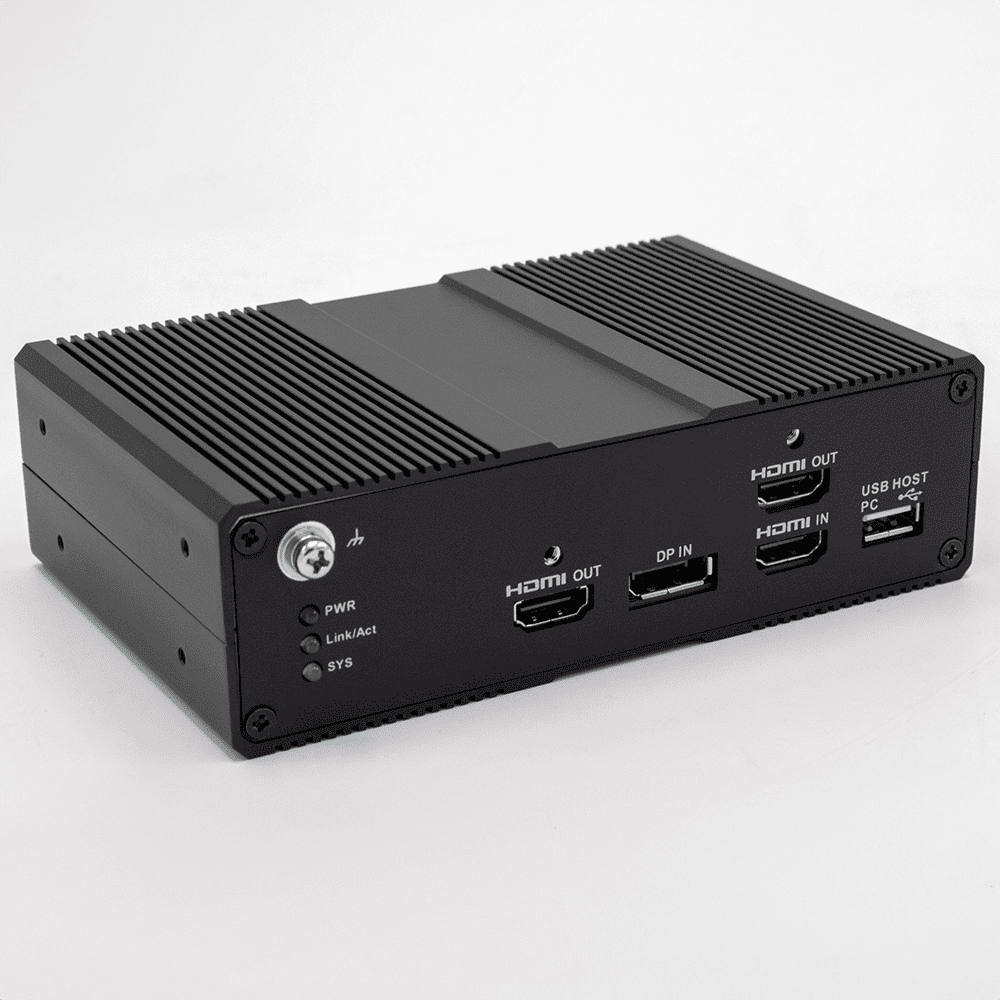

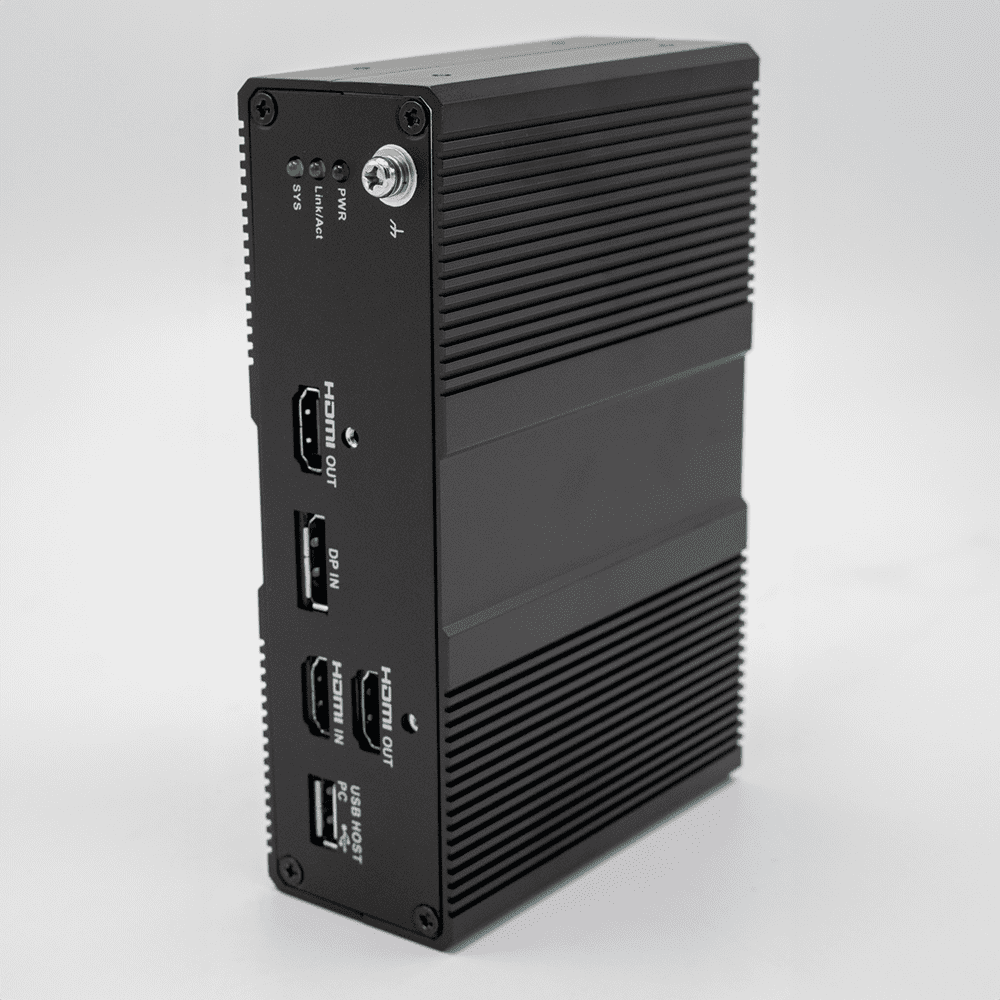

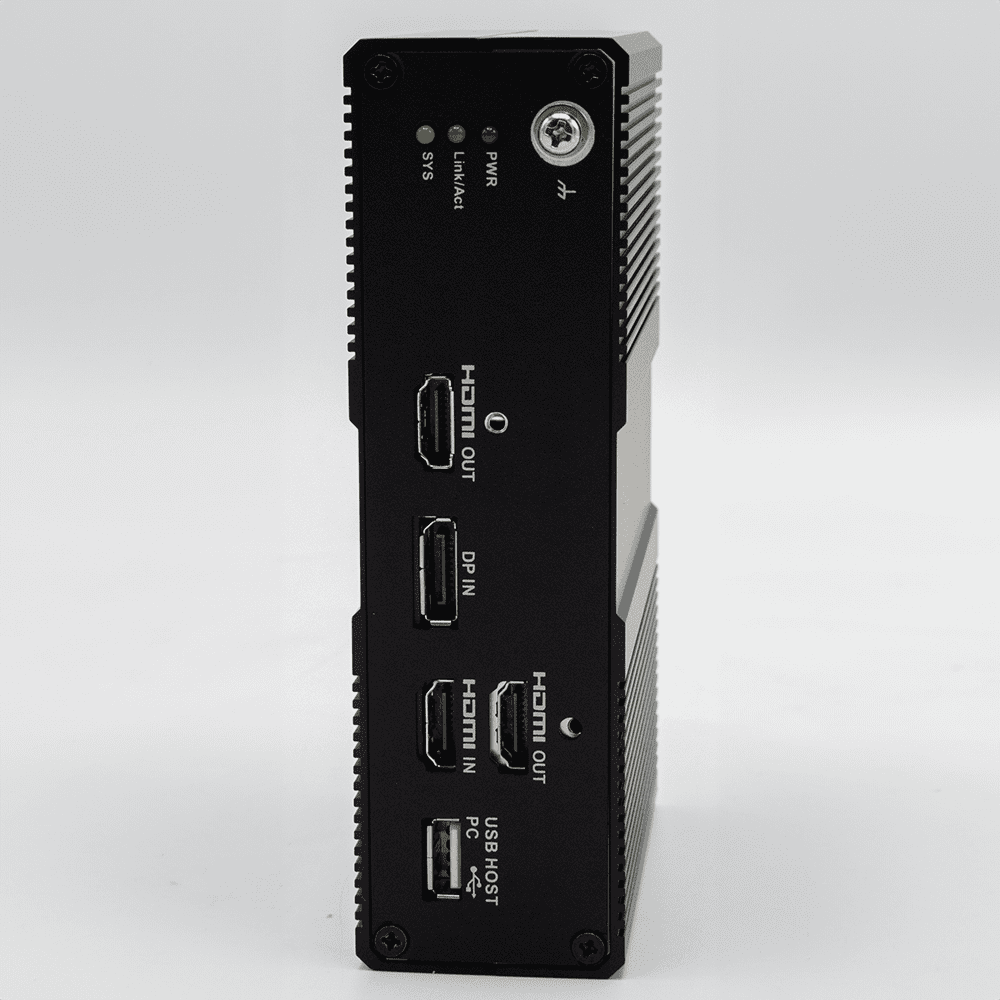

| Video | Input | • One (1) HDMI 1.4 (Supports DVI with converter) • One (1) DP |
| Output | • One (1) HDMI 2.0 (Left) (Reserved, Non-functional) • One (1) HDMI Loop | |
| Audio Input | • One (1) Embedded HDMI and DP • One (1) 3.5 mm Jack | |
| Intercom | Input | One (1) 3.5 mm Microphone Jack (Reserved, Non- functional) |
| Output | One (1) 3.5 mm Earphone Jack (Reserved, Non- functional) | |
| Alarm | Input | Two (2) Channels (Reserved, Non-functional) |
| Output | Two (2) Channels (30 VDC 1A,125 VAC 0.5A Linkage) (Reserved, Non-functional) | |

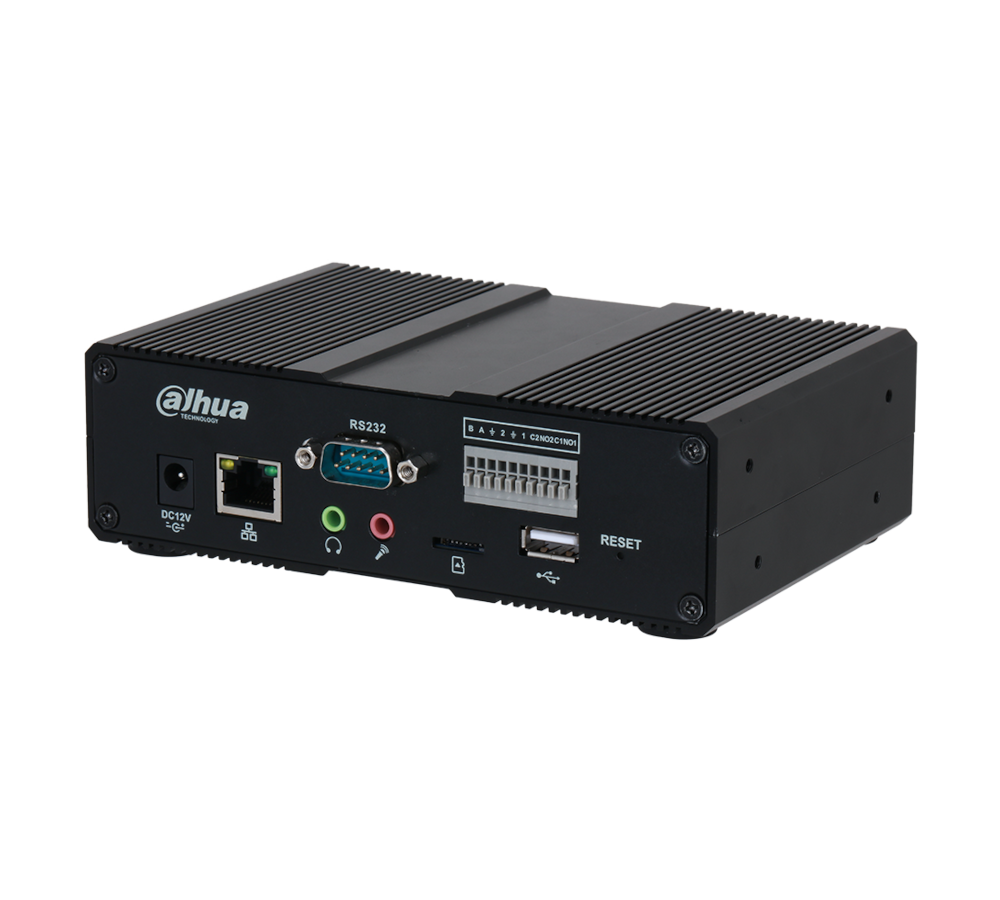

| Network Port | One (1) RJ45 10/100/1000M Self-adaptive Ethernet | |
| RS-232 (DB9) | One (1) for debugging purposes only | |
| RS-485 | One (1) | |
| USB | • One (1) USB 2.0 (Left) (Reserved, Non-functional) • One (1) USB (Reserved) | |
| SD Card Slot | • One (1) (Reserved, Non-functional) | |
| Performance | ||
| Access Resolution | 4096 x 2160, 3840 x 2160, 2560x1440, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 | |
| Video Frame Rate | 1 to 60 fps (Max. 24 fps at 4096 × 2160 and 30 fps at 3840 × 2160) | |
| Encoding Capacity | • 4096 × 2160 at 24 fp • 3840 × 2160 at 30 fps • 2560 × 1440 at 60 fps • 1920 × 1080 at 60fps • 1280 × 1024 at 60fps • 1280 x 960 at 60fps • 1280 × 720 at 60 fps • 1024 x 768 at 60fps | |
| Video Encoding Format | H.265, H.264 (Default) | |
| Audio Encoding Format | G.711a | |
| Stream Type | Composite, Video | |
| Protocol | RTSP, Private | |
| Electrical | |

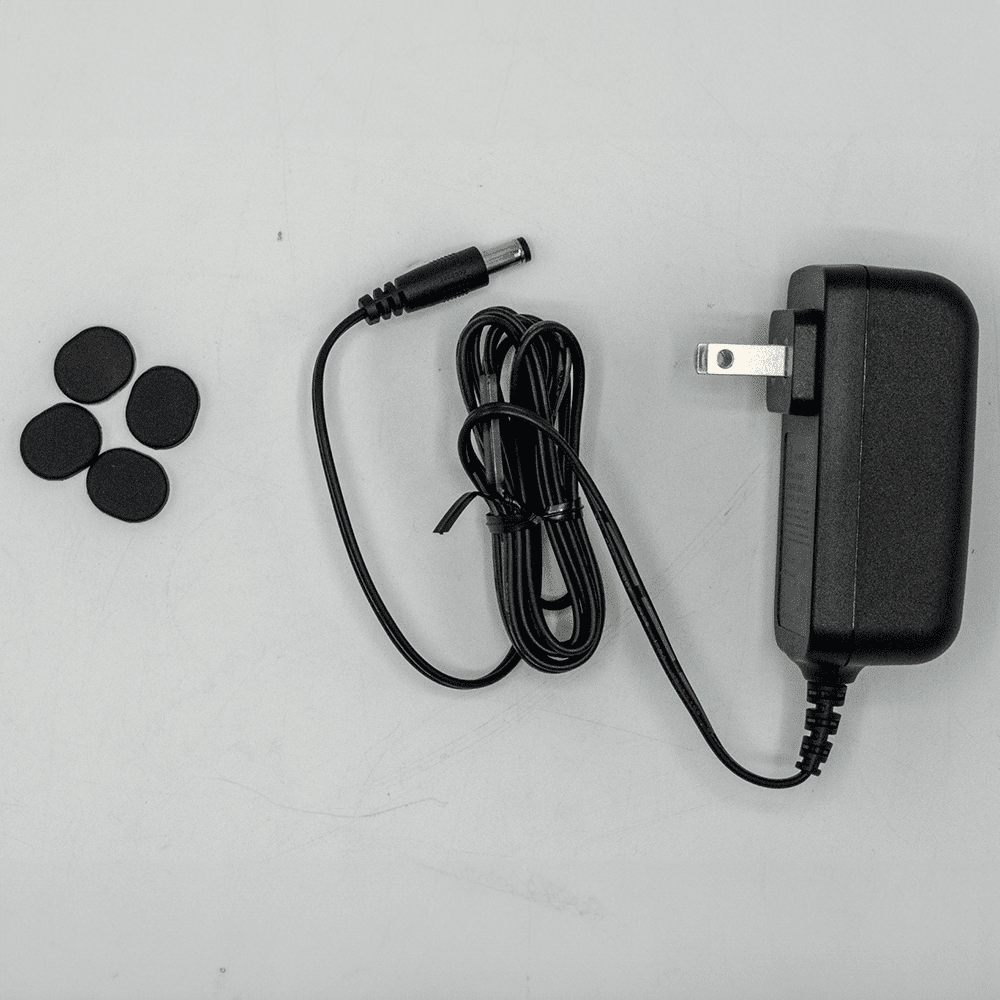

| Power Supply | 12VDC 2.0A, PoE |
| Power Consumption | ≤ 10 W |
| Construction | |
| Operating Temperature | -10 °C to 55 °C (14 °F to 131° F) |
| Operating Humidity | 10% to 90%, 86 kpa to 106 kpa |
| Dimensions (H x D x W) | 45mm × 153.8 mm × 100 mm (1.77 in. × 6.06 in. × 3.93 in.) |
| Weight | 0.65 kg (1.43 Ib) |
