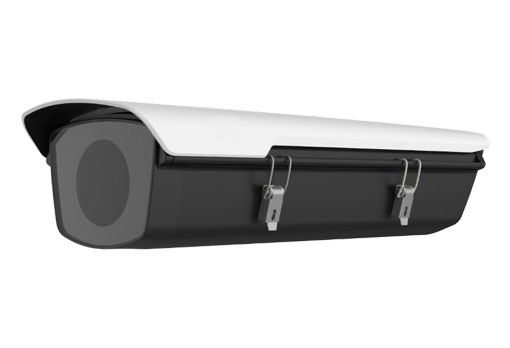

Uniview - HS-217SHB-B-NB - Outdoor-Housing
Part number:
HS-217SHB-B-NB
Price:
Outdoor installation (-40 ℃~70 ℃) - Box Camera
Features:
- Anti-corrosive and ultraviolet-proof material to enhance outdoor durability
- Combined with adjustable sun shade from direct solar radiation
- Built-in temperature control module, it can automatically control heater and fan's working condition according to ambient temperature
- Easy and flexible installation with side open structure
- IP66-rated
| HS-217SHB-B-NB (including sun shade,Heater,Fan) | |
| Application | Indoor\Outdoor |
| Power supply | AC24V |
| Power | Heater:20W, Fan:1.8W |
| Operating Condition | –40℃~70℃(-40°F ~ 158°F) Humidity ≤95%RH( non-condensing) |
| Working conditions of temperature control module | The heating on:≤9±3℃ The heating off:≥14±3℃ The fan opens when the heat is turned on |
| Dimensions (L × W × H) | 497.7mm×122.6mm×168.9mm |
| Weight | 2.7kg(5.95lb) |
| Material | Shell:aluminum alloy Sun shade:plastic |
| Ingress Protection | IP66 |
