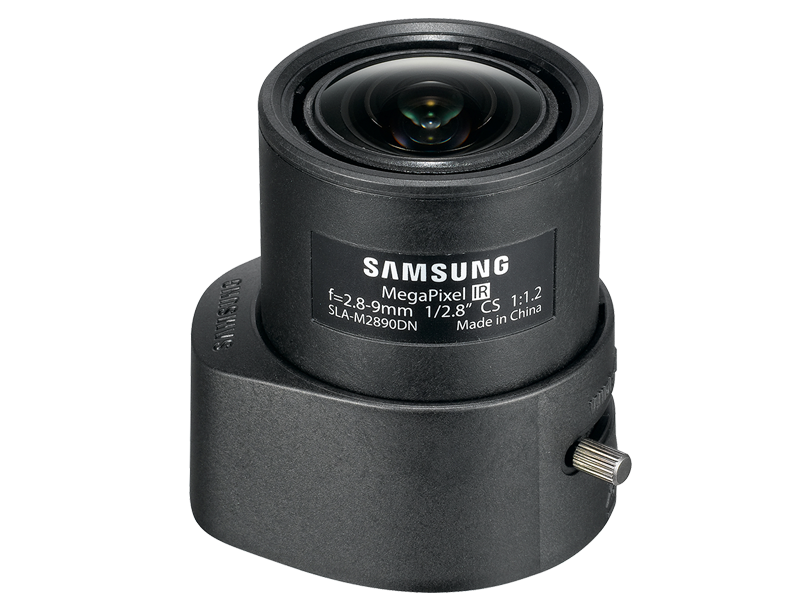

Hanwha - SLA-M2890DN - Lens, 1/2.8", 3 MP, Vari-focal (2.8-9.0mm), Auto DC Iris, CS-Mount
Part number:
SLA-M2890DN
Price:
Lens, 1/2.8", 3 MP, Vari-focal (2.8-9.0mm), Auto DC Iris, CS-Mount
Features:
- F1.2 DC type iris
- Varifocal 2.8 ~ 9mm / 0.11" ~ 0.35"
| CCD | 1/2.8" |
| Resolution | 3Megapixel |
| Zoom Ratio | 3.2x |
| Focal Length | 2.8 ~ 9mm (0.11" ~ 0.35") |
| Max. Aperture Ratio | 1 : 1.2 ~ 360 |
| Max. Image Format | 5.12(H) x 3.84(V) (Ø6.7mm) |
| Angle of View | Diagonal: 134.2˚ ~ 42.7˚ Horizontal: 104.2˚ ~ 33.7˚ Vertical: 77.2˚ ~ 25.3˚ |
| Operation | Iris: P-Iris (F1.2 ~ 360) Focus: Manual (0.3m ~ ∞) Zoom: Manual (2.8 ~ 9mm) |
| Iris Type | DC |
| Effective Lens Aperture | Front: Ø25mm (Ø0.98") Rear: Ø6.8mm (Ø0.27") |
| Back Focal Length | 7.52mm (0.3") (In air) |
| Flange Back Length | 12.5mm (0.49") |
| Mount | CS-mount |
| Dimensions (WxHxD) | 45.0 x 51.5 x 54.3mm (1.77" x 2.03" x 2.14") |
| Weight | 84g (0.19 lb) |
