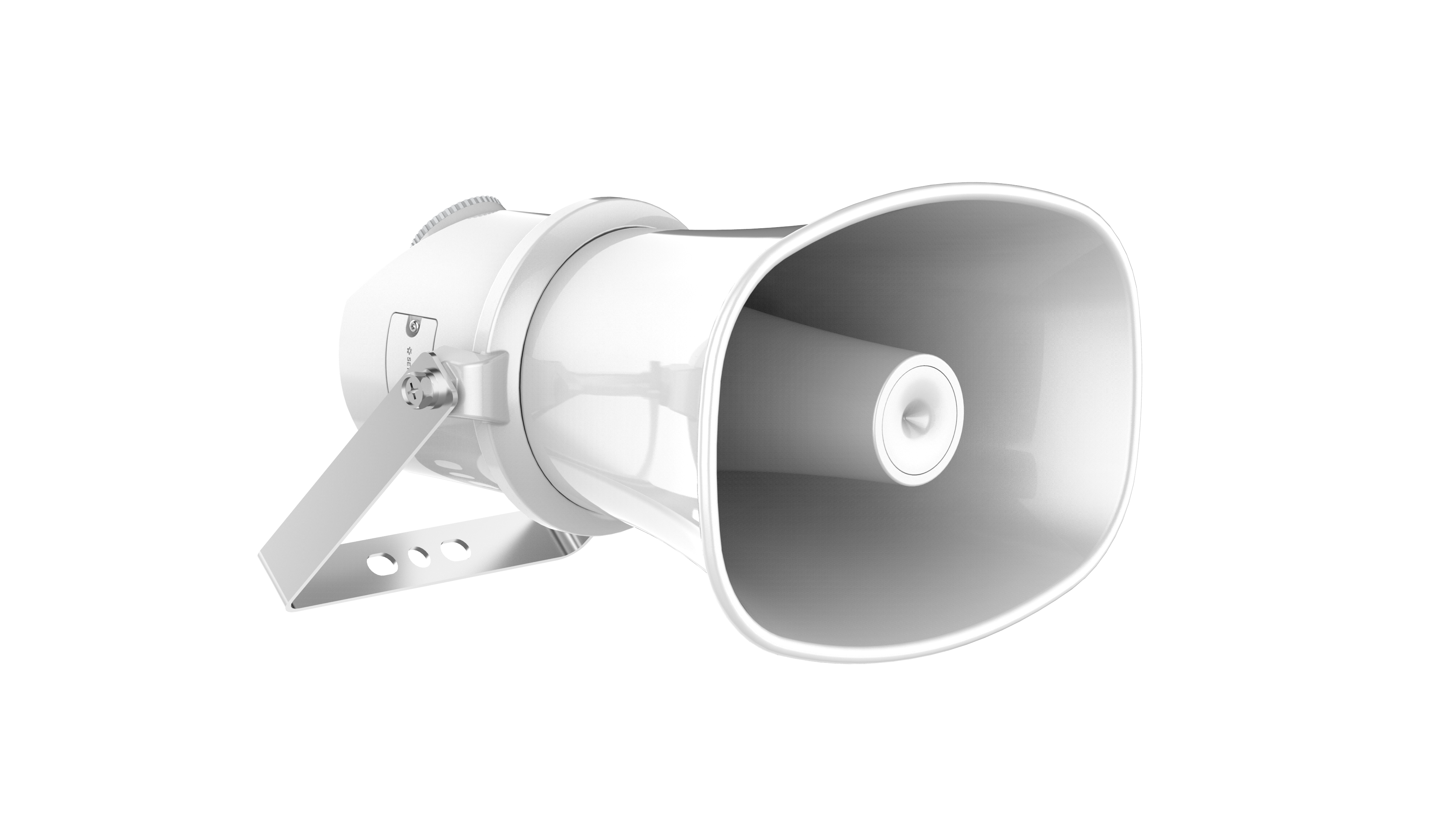

Hikvision - NP10W-H - 10 W Network Horn Speaker
Part number:
NP10W-H
Price:
10 W Network Horn Speaker
Features:
- Support batch unified management of remote platforms through IP networks (local area networks/public networks) and flexible configuration of local WEB single machines, while also support local audio collection and playback, adapting to various scene applications
- Support alarm input, arming schedule, and audio linkage, support TTS speech synthesis and text broadcasting, with natural and smooth standard male and female dual audio options
- Support two-way audio by SIP
| Specification | |
| Microphone | |
| Type | Electret |
| Amount | 2 |
| Frequency Response | 100 Hz to 20 kHz |
| Sensitivity | -42 dBV/Pa |
| Sampling Rate | 48 kHz |
| Quantization Bits | 16-bit |
| Speaker | |
| Rated Power | 10 W |
| Impedance | 8 Ω |
| Sensitivity(1 m, 1 W) | 110 dB |
| Max. Acoustic Pressure | 121 dBSPL |
| Direction | 70° horizontal by 100° |
| Frequency Response | 300 Hz to 13 kHz |
| SNR | 85 dB |
| Function | |
| Audio Algorithm | AEC, AGC, ANS, DRC |
| Audio Bit Rate | G.711ulaw (64 Kbps)/G.711alaw (64 Kbps)/MP3 (128 Kbps) |
| Audio File Format | WAV, MP3, MP2, and AAC (ADTS encapsulation only) |
| NTP Timing | Support |
| Broadcast | Regular broadcast, live broadcast, emergency broadcast |
| Two-Way Audio | Support |
| Speech Synthesis | Language Type: English, Spanish, Japanese, Thai |
| Network | |
| Network Protocol | IPv4, HTTP, HTTPS , SIP, SSL/TLS , DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP |
| Communication | |
| Communication Method | Support wired network communication |
| Interface | |
| Ethernet Interface | RJ45 10 M/100 M Adaptive Ethernet port × 1 |
| Power Output | 12 VDC, 25 mA, 0.3 W, PoE: max. 5 W |
| Local Storage | Built-in 64 GB EMMC (Audio file storage is 55 GB.) |
| Reset | Support |
| General | |
| Material | Metal |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | ＜90% (No condensation) |
| Dimension | 175 mm × 237 mm × 272 mm(6.9" × 9.3" × 10.7") |
| Power | 12 VDC, 1500 mA, 18 W, PoE: IEEE 802.3at, Class 4 |
| Package Dimension | 310 mm × 245 mm × 350 mm (12.2" × 9.6" × 13.8") |
| Weight | Approx. 2.1 kg (4.63 lb.) |
| With Package Weight | Approx. 3.0 kg (6.61 lb.) |
| Color | White |
| Packing List | Device × 1 Threading cap × 1 Regulatory Compliance and Safety Information × 1 |
| Approval | |
| Protection | IP67 |
