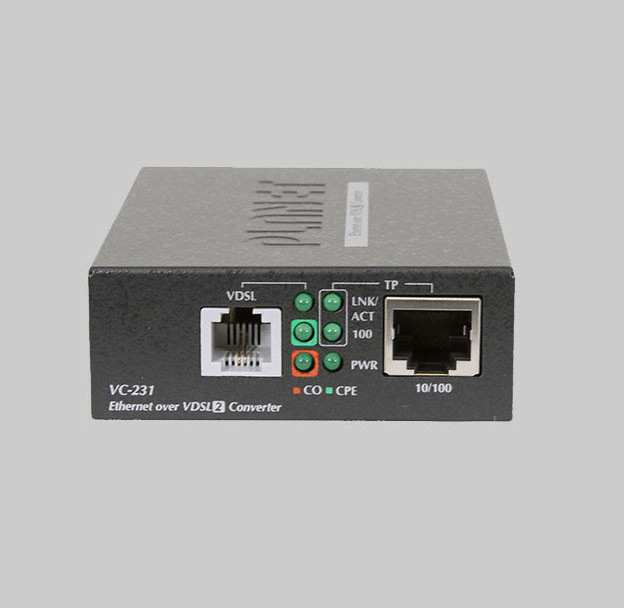

PLANET - VC-231 - 100/100 Mbps Ethernet to VDSL2 Converter - 30a profile
Part number:
VC-231
Price:
100/100 Mbps Ethernet to VDSL2 Converter - 30a profile
Features:
- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
- One box design, CO / CPE selectable via DIP Switch
- Defines symmetric band plan for the transmission of upstream and downstream signals
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
- DMT (Discrete Multi-Tone) line coding
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
- One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
- VDSL2 stand-alone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply as Plug-and-Play)
- Selectable target profile and target SNR margin
- Supports extensive LED indicators for network diagnosis
- Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48)
- Compact in size, easy installation
- 100/100Mbps Downstream / upstream, high Performance Ethernet over VDSL Solution
- Implementing with Existing Telephone Copper Wires
- Delivering High-Demand Service Connectivity for ISP / Triple Play Devices
- Easy & Flexible Installation
- Providing Superior Upstream and Downstream Transmission Performance
- Ethernet Distance Extension
- MTU / MDU / Hospitality Solution
- Last Mile of FTTx Deployment
| Hardware Specifications | |
| Ports | 10/100Base-TX: 1 RJ-45, Auto-Negotiation and Auto-MDI/MDI-X VDSL: 1 RJ-11, female Phone Jack PHONE: Additional Splitter for POST connection |
| DIP Switch & Functionality | – 4 position DIP switch – CO / CPE mode select – Selectable fast and interleaved mode – Selectable target 17a / 30a profiles – Selectable target SNR mode |
| Encoding | – VDSL-DMT – ITU-T G.993.1 VDSL – ITU-T G.997.1 – ITU-T G.993.2 VDSL2 (Profile 17a/30a Support) |
| LED Indicators | – One Power – 3 for RJ-11/VDSL2 – 2 for per RJ-45 10/100Base-TX port |
| Cabling | – Ethernet 10Base-T: 2-pair UTP Cat.3,4,5 up to 100m (328ft) 100Base-TX: 2-pair UTP Cat.5, up to 100m (328ft) – VDSL Twisted-pair telephone wires (AWG24 or better) up to 1.4km |
| Performance* (Downstream / Upstream) | 17a profile 300m -> 86/65Mbps 400m -> 86/52Mbps 600m -> 81/36Mbps 800m -> 72/19Mbps 1000m -> 60/9Mbps 1200m -> 59/6Mbps 1400m -> 50/2Mbps30a profile 300m -> 100/100Mbps 400m -> 90/90Mbps 600m -> 61/40Mbps 800m -> 54/8Mbps |
| Power Requirements | 5V DC, 2A |
| Power Consumption | 6.6 Watts / 22 BTU |
| Dimensions (W x D x H) | 97 x 70 x 26 mm |
| Weight | 199g |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K entries |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Switch fabric | 0.2Gbps |
| Throughput (packet per second) | 0.14Mpps |
| Network cables | 10/100Base-TX: 2-Pair UTP Cat. 3,4, 5 (100 meters, max.) EIA / TIA-568 100-ohm STP (100 meters, max.) |
| Standard Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX ITU-T – G.993.1 (VDSL) – G.997.1 – G.993.2 VDSL2 (Profile 17a/30a) |
| * The actual data rate will vary on the quality of the copper wire and environment factors. | |
