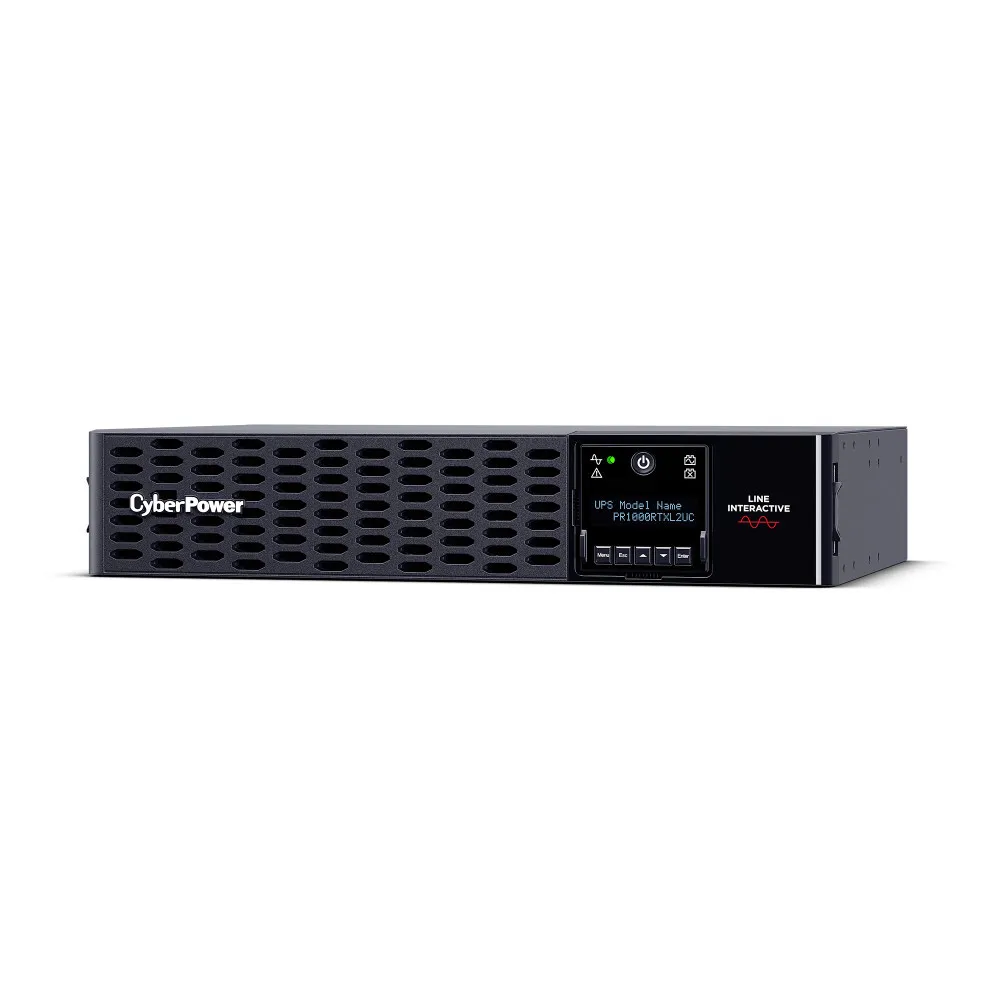

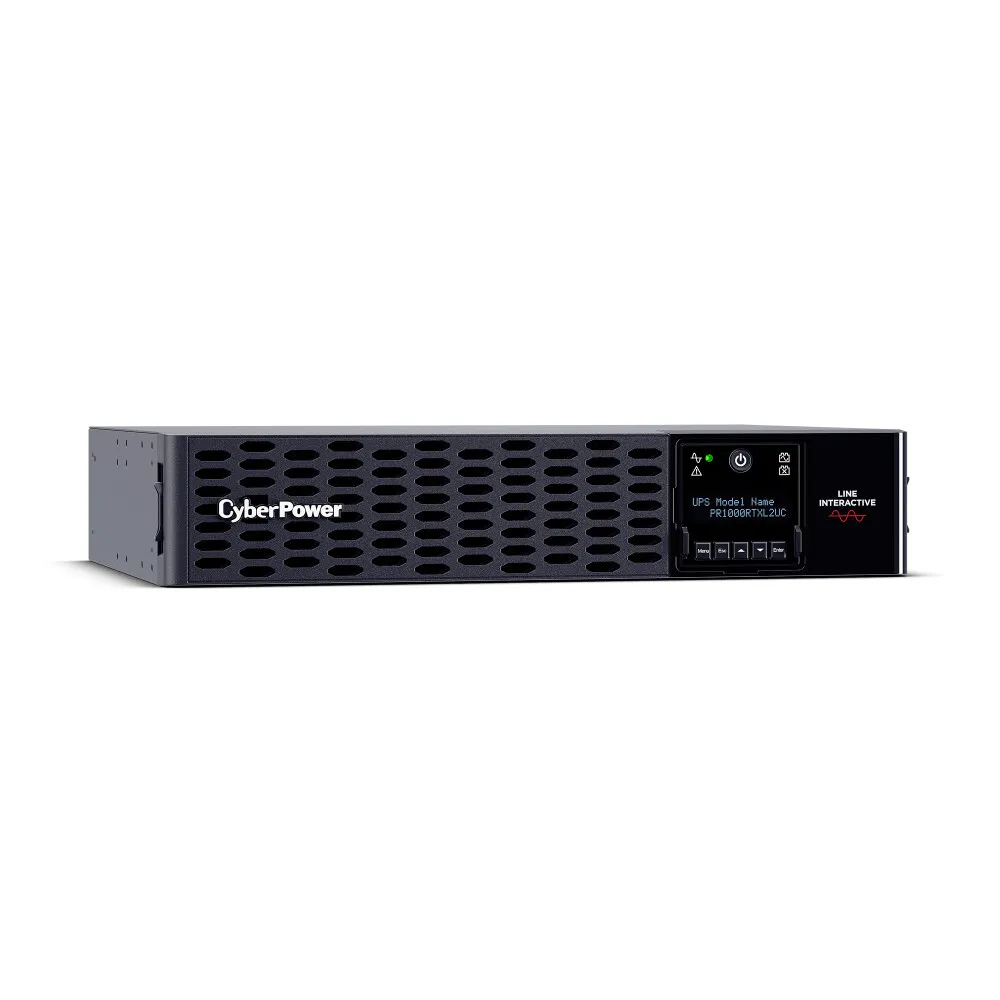

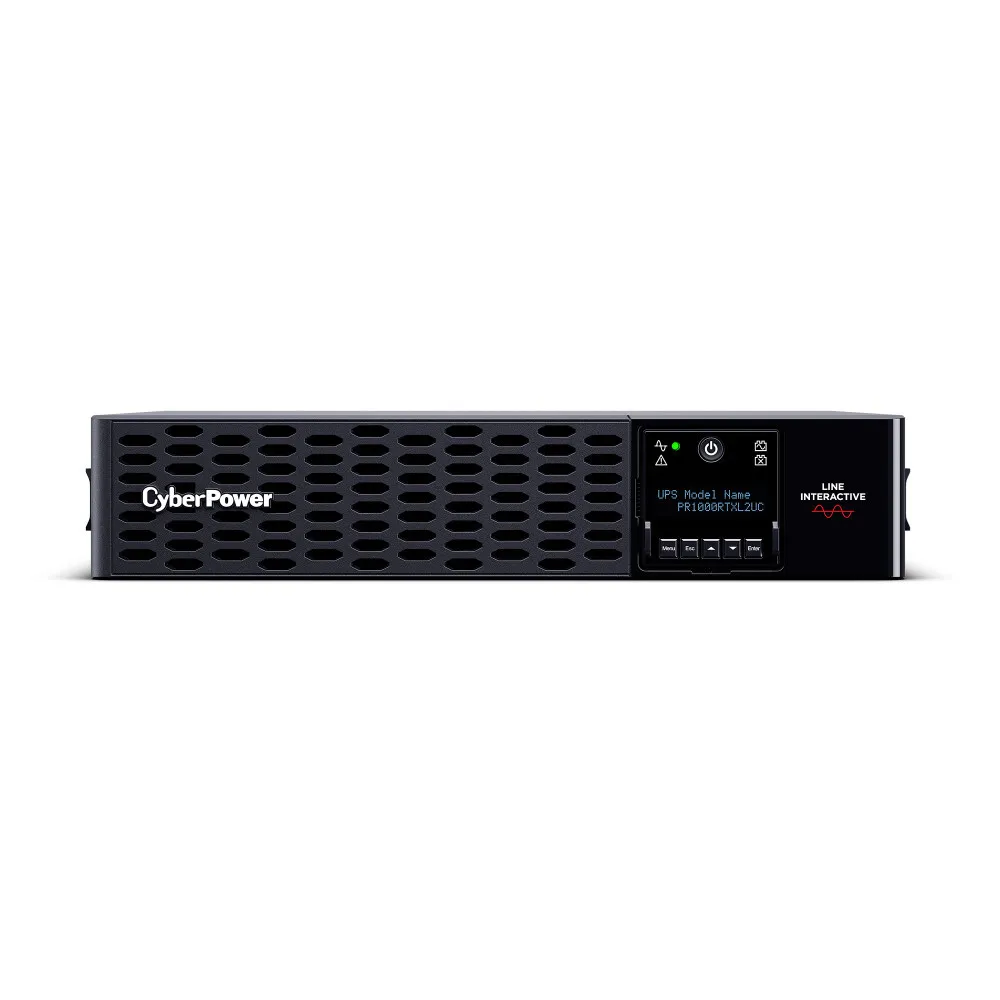

The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower’s Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to the quality of the PR100RTXL2UC.

Features:

• Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
• Line-Interactive Topology: Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
• Sine Wave Output: Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
• Battery Equalization Technology: Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
• Fast Charge Technology: Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
• Rotatable Multifunction LCD Panel: Tilts to provide a better viewing angle when the Smart App Sinewave is mounted low. Rotates 90° when placed in a tower format for horizontal viewing. Provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
• Toolless Battery Panel Access: Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
• Extended Battery Modules (EBMs): Use Fast Charge Technology to quickly restore full backup power to a UPS system. They also extend runtime.
• Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
• Rack/Tower Versatility: Allows for horizontal rack or vertical tower installation.
• PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
• ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
• Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
• Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
