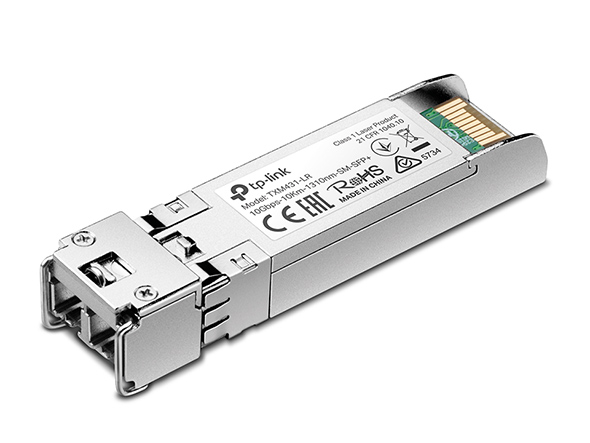

TP-Link - TXM431-LR - 10GBASE-LR SFP+ LC TRANSCEIVER WRLS
Part number:
TXM431-LR
Price:
10GBase-LR SFP+ LC Transceiver
Features:
- Single-mode 10G SFP+ dual LC transceiver
- Up to 10km (6.2miles) transmission distance with 9/125 μm SMF (Single-Mode Fiber)
- Compatible with all SFP+ ports on TP-Link JetStream switches
| PACKAGE CONTENTS | |
|---|---|
| Package Contents | • 10G SFP+ Module TXM431-LR • Installation Guide |
| HARDWARE FEATURES | |
|---|---|
| DDM | Yes |
| SFP-MSA | Yes |
| Hot Swappable | Yes |
| TRANSCEIVER | |
|---|---|
| Standards and Protocols | IEEE 802.3ae |
| Wave Length | 1310nm |
| Power Supply | 3.3V |
| Fiber Type | 9/125um single-mode |
| Max. Cable Length | 10km |
| Data Rate | 10Gbps |
| Port Type | LC/UPC |
| Transmission power | 0.5 dBm(Max) -8.2dBm(Min) |
| Reception power | 0.5dBm(Max) -14.4dBm(Min) |
| Sensitivity | -12.6dBm |
| Safety & Emission | FCC, CE |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
