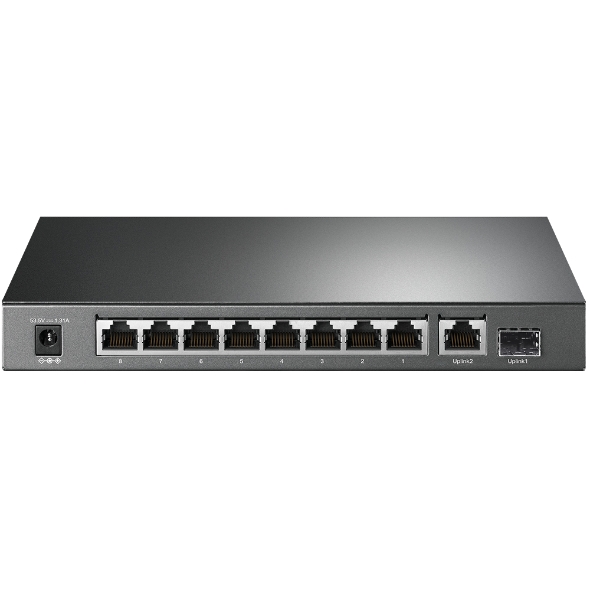

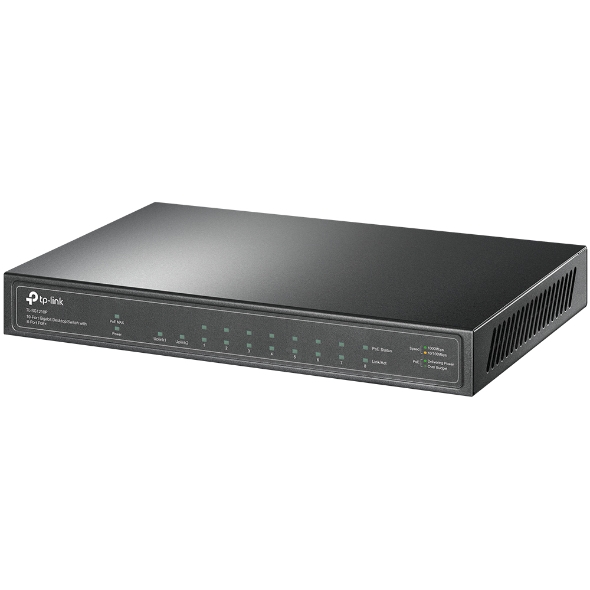

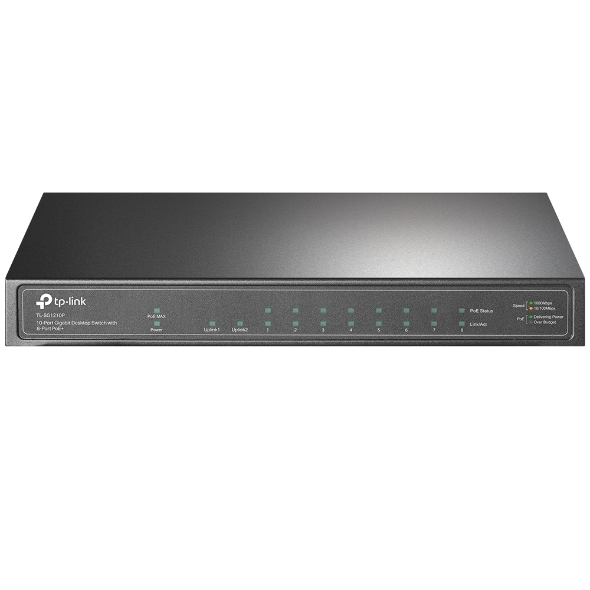

TP-Link - TL-SG1210P - 10PORT GIGABIT DESKTOP SWITCH PERP WITH 8PORT POE
Part number:
TL-SG1210P
Price:
10-Port Gigabit Desktop Switch with 8-Port PoE+
Features:
- 9 10/100/1000Mbps RJ45 ports, 1 Gigabit SFP port
- With 8 PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs and expands office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- High PoE power budget with up to 30W for each PoE port and 63W for all PoE ports
- Easy to use, with no configuration and installation needed
| Technical Specification | |
| Interface | 8 PoE+ 10/100/1000Mbps RJ45 Ports |
| 1 10/100/1000Mbps RJ45 Port | |
| 1 Gigabit SFP Slot | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| Power Supply | External Power Adapter(Output: 53.5VDC / 1.31A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Port1- Port 8 | |
| PoE Power Budget: 63W | |
| Mac Address Table | 4K |
| Jumbo Frame | 16 KB |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 209 × 126 × 26 mm |
| Max Power Consumption | 7.11 W (220/50Hz. no PD connected) |
| 78.13 W (220/50Hz. with 63W PD connected) | |
| Max Heat Dissipation | 24.25 BTU/h (no PD connected) |
| 266.42 BTU/h (with 63W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3af/at Compliant PDs |
| EEE802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC |
| Package Contents | TL-SG1210P, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10% ~ 90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
