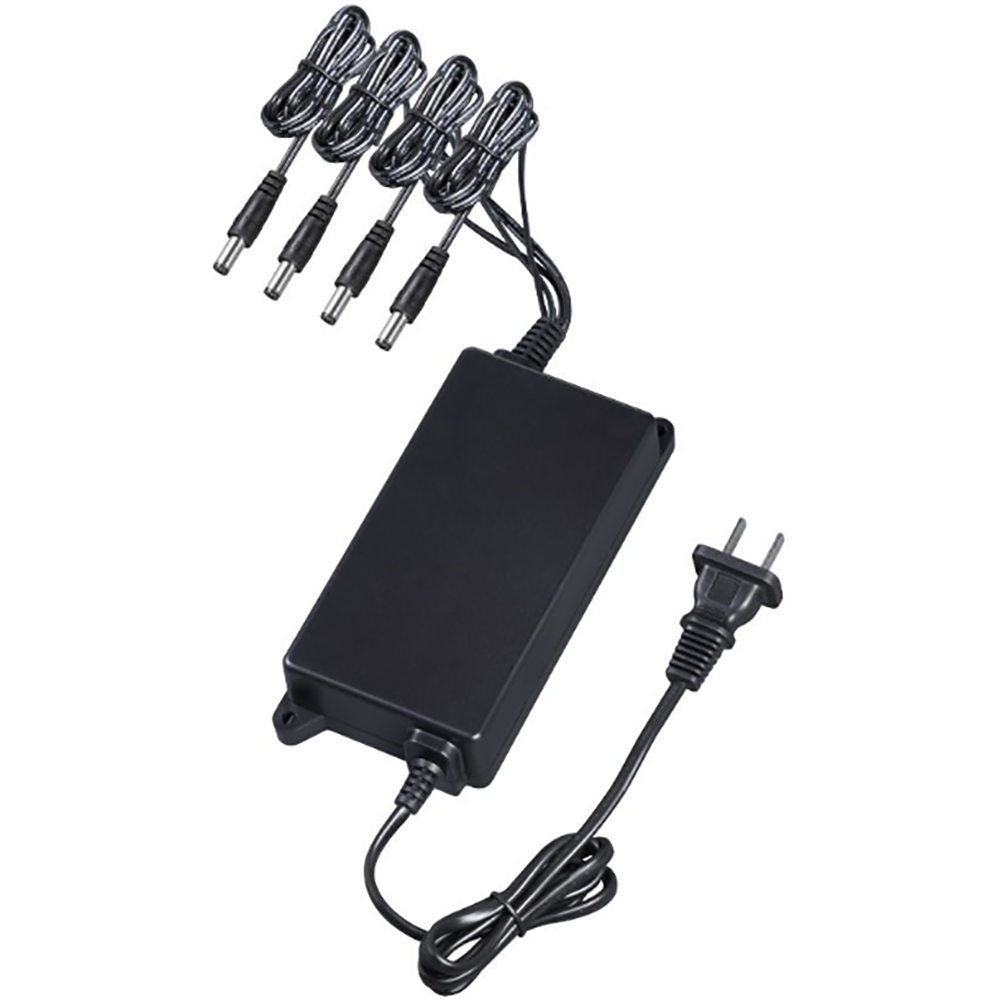

Dahua - EUHA+12120-070D - 12 VDC, 0.7 A Power Adapter
Part number:
EUHA+12120-070D
Price:
12 VDC, 0.7 A Power Adapter
Features:
- Four Independent Power Supply Ports
- Full Power Efficiency at -30 °C to +70° F (-22 °F to 158 °F)
- Accurate Over-current and Over-voltage Protection
| Technical Specification | |
| Electrical | |
| Input | 100 VAC to 240 VAC, 50/60 Hz, 0.6 A |
| Output | 12 VDC (+7%, -3%), 0.7 A (±3%), each port |
| Environmental | |
| Operating Temperature | -30 °C to +70° F (-22 °F to 158 °F) |
| Operating Humidity | 90% |
| Physical Properties | |
| Weight | 210.0 g (0.46 lb) |
| Dimensions (L x W x H) | 148.0 mm x 70.0 mm x 31.0 mm (5.83 in. x 2.76 in. x 1.22 in.) |
| Installation Mode | Plane Installation |
| Color | Black |
| Input Plug | 2-pin North American Plug |
| Cord Lengths | AC Cord: 500.0 mm (19.69 in.) DC Cord: 800.0 mm (31.50 in.) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
