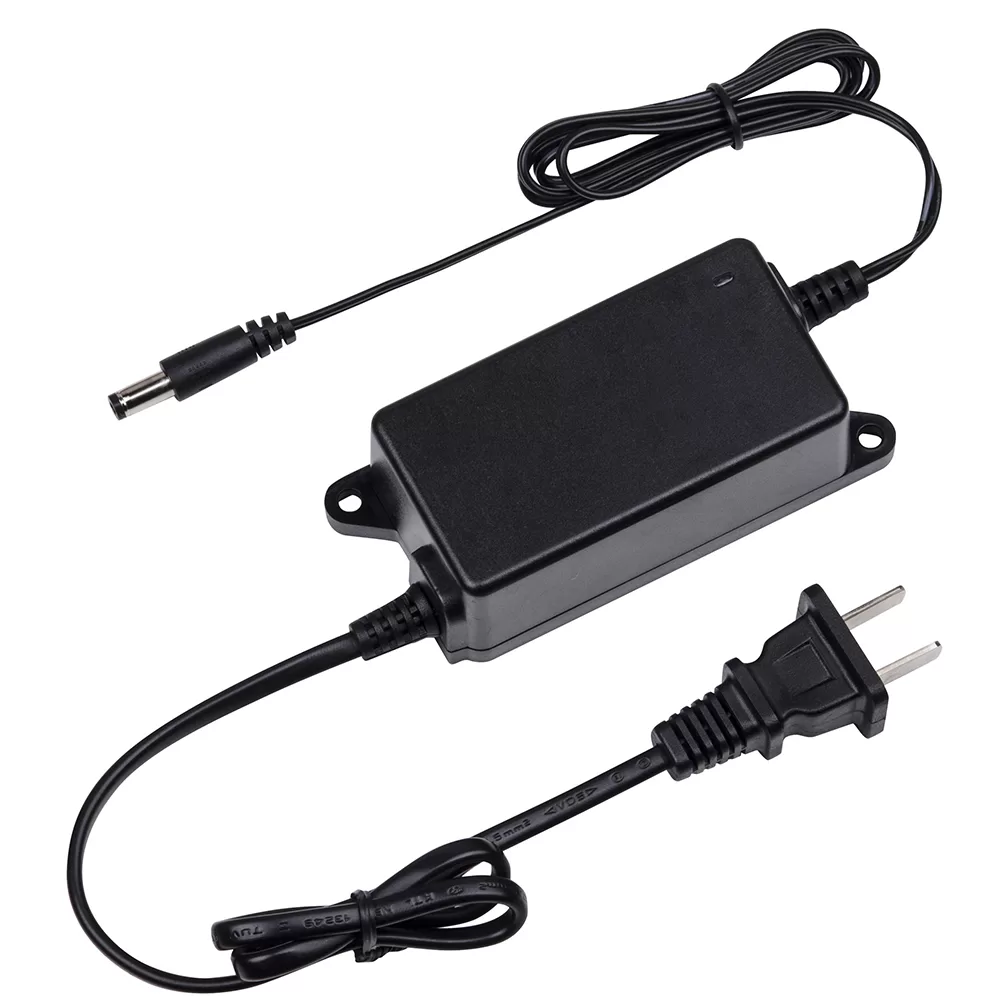

Dahua - DH-PFM321D-US - 12 VDC, 1 A Power Adapter
Part number:
DH-PFM321D-US
Price:
12 VDC, 1 A Power Adapter
Features:
- Visual Indicator when Power Present
- Full Power Efficiency at –30 °C to +70° F (–22 °F to 158 °F)
- Accurate Over-current and Over-voltage Protection
- Surge Protection
| Technical Specification | |
| Electrical | |
| Input Voltage | 90 VAC to 264 VAC, 50/60 Hz |
| Output Voltage | 12 VDC (+7%, -3%) |
| Output Current | 3 A |
| Maximum Power Output | 36 W |
| No Load Power Consumption | < 0.3 W |
| Protection | |
| Protections | Surge protection Over temperature Over current Voltage load |
| ESD | IEC61000-4-2 ±6 kV Contact; ±8 kV Air |
| Surge | Surge: EN61000-4-5 Combination Wave: Common Mode ±4KV (12 Ω) Differential Mode ±2kV (2 Ω) |
| Environmental | |
| Operating Temperature | –10° C to +55° F (14° F to 131° F) |
| Operating Humidity | < 90%, Relative |
| Physical Properties | |
| Dimensions (L x W x H) | 101.50 mm x 51.10 mm x 55.60 mm (4.0 in. x 2.01 in. x 2.19 in.) |
| Weight | 0.17 kg (0.38 lb) |
| Installation Mode | Wall-mount |
| Color | Black |
| Input Plug | 2-pin North American Plug |
| Outgoing Cord | DC wire: 1500.0 mm (59.06 in.) |
| DC Plug | ø5.50 mm x ø2.10 mm x 10.0 mm (ø0.22 in. x ø0.08 in. x 0.39 in.) |
