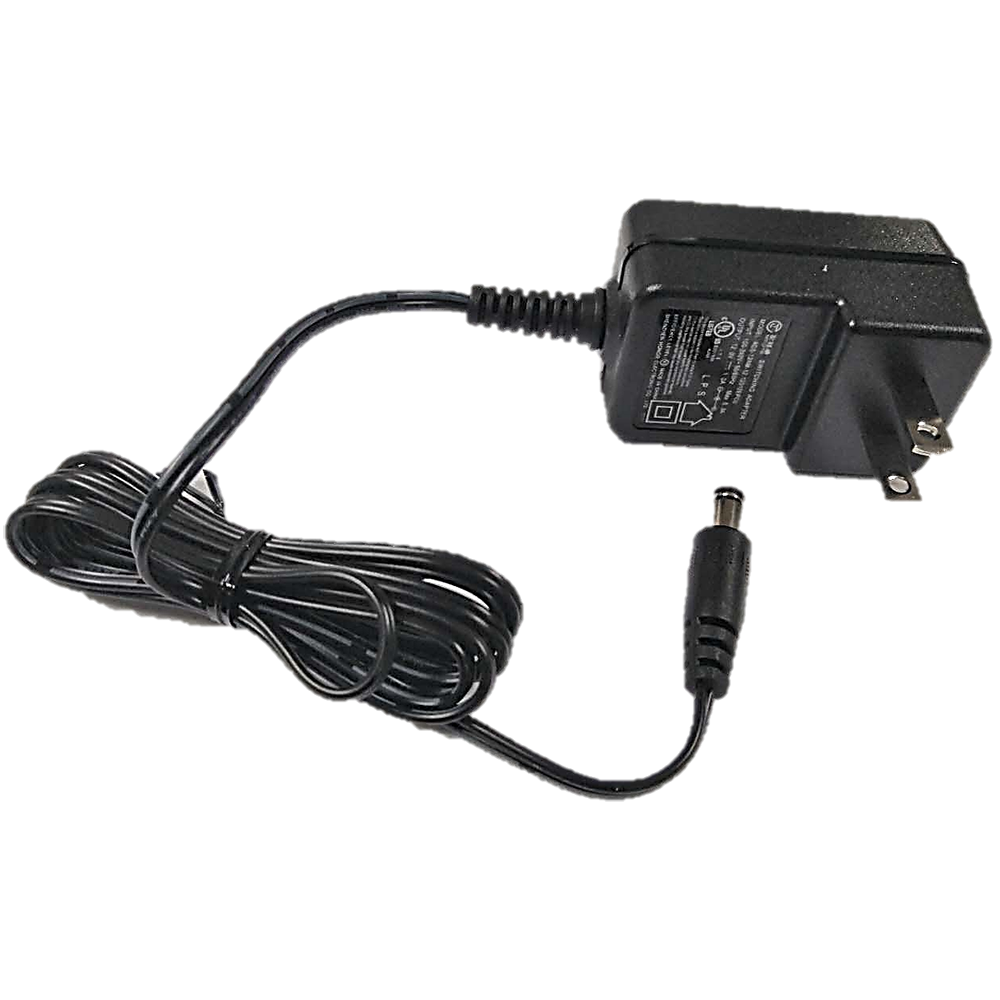

Dahua - ADS-12AM-12 12012EPCU - DC Power (DC12V1A)
Part number:
ADS-12AM-12 12012EPCU
Price:
12 VDC, 1 A Power Adapter
Features:
- Supports 100 VAC to 240 VAC Wide-range Voltage Input
- Meets the Demands of Voltage Fluctuation
- Accurate Over-current and Over-voltage Protection
| Technical Specification | |
| Electrical | |
| Input | 100 VAC to 240VAC, 50/60 Hz |
| Output | 12 VDC, 1 A |
| Protection | |
Protections | Surge Over-current Voltage Load |
ESD | IEC61000-4-2 ±4 kV Contact; ±8 kV Air |
| Environmental | |
| Operating Temperature | –10° C to +55° F (14°F to 131° F) |
| Operating Humidity | < 90%, Relative |
| Physical Properties | |
Dimensions (L x W x H) | 60.80 mm x 37.80 mm x 33.50 mm (2.39 in. x 1.49 in. x 1.32 in.) |
| Installation Mode | Pluggable Installation |
| Color | Black |
| Input Plug | 2-pin NorthAmerican Plug |
| Outgoing Cord | 24 AWG, 1500.0 mm (59.06 in.) |
| DC Plug | ø5.50 mm x ø2.10 mm x 10.0 mm (ø0.22 in. x ø0.08 in. x 0.39 in.) |
| Certifications | |
| Safety | UL |
