Cyber Power - CPS1215RM - 120 V, 50Hz/60Hz, NEMA 5-15P plug, 10 NEMA 5-15R, 1U Rackmount, 15 ft Cord
Part number:
CPS1215RM
Price:

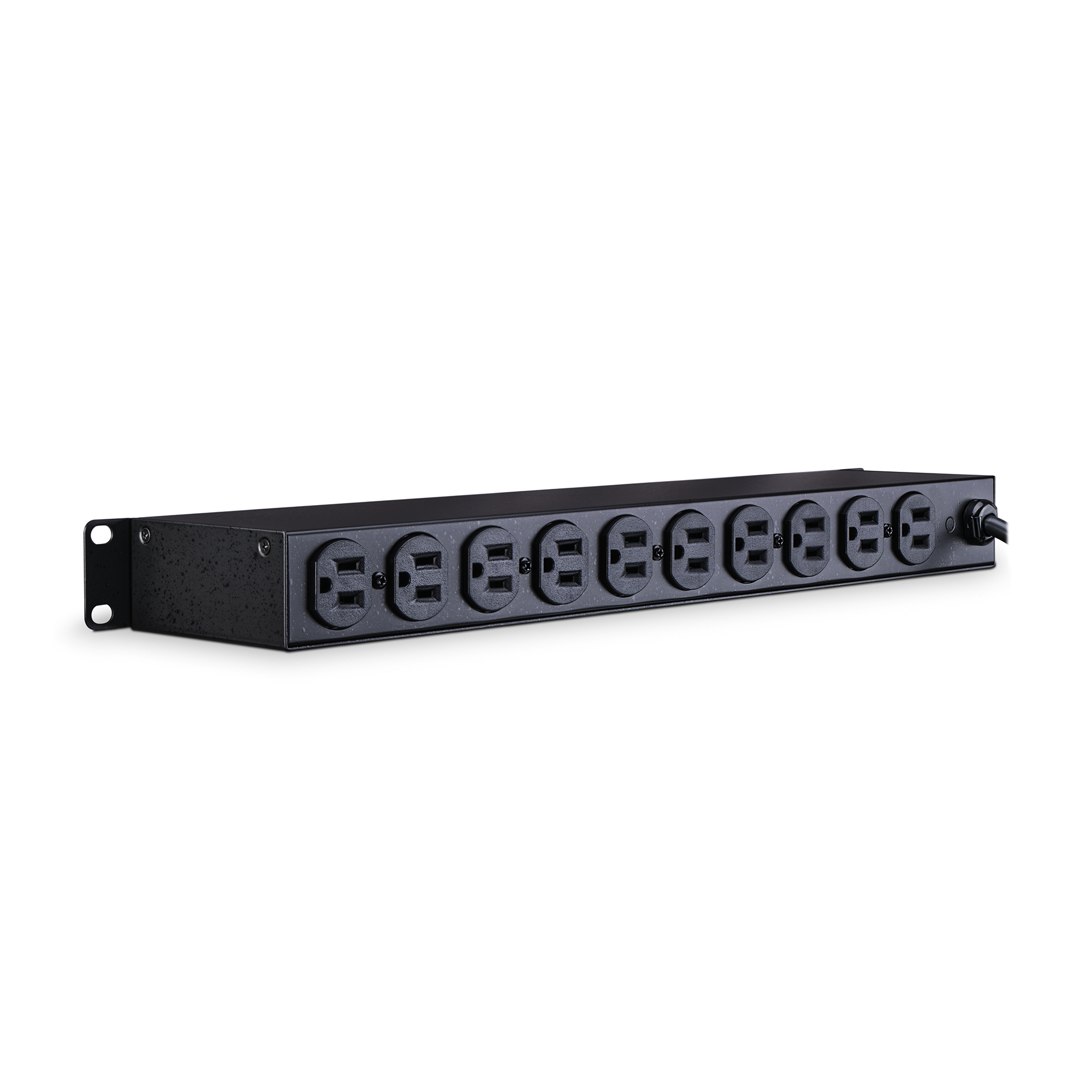

The CyberPower CPS1215RM, a 10-outlet (rear) rackmount power distribution unit (PDU), provides 100-125V 15A output. It distributes power to 10 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the CPS1215RM has durable metal housing and a 15-foot AC power cord. It can be mounted horizontally, includes a cord retention tray, and is UL Recognized. The CPS1215RM comes with a three-year limited warranty and covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date.



Product Features:
  • Power Distribution
    Delivers AC power to servers, equipment, and connected devices via a power distribution unit.



  • Network-Grade Plugs and Outlets
    Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.



  • Long Input Power Cord
    Reaches distant power sources, allowing the PDU to be placed where it’s needed.



  • Cord Retention Tray
    Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.



  • Understanding PDUs

    Power Distribution Units (PDUs) by CyberPower are engineered to distribute reliable network power to multiple devices. A PDU does not generate conditioned power, but delivers AC power from a UPS (uninterruptible power supply), a generator, or utility power source to servers, network/telecom equipment, and other devices. Selecting the best PDU for your needs depends on the output voltage required, the number of outlets needed for connected devices, plug and outlet types, and mounting options.

    Versatile. CyberPower PDUs are designed with as many as 38 outlets. Offered in 0U, 1U, and 2U form factors, each PDU includes the necessary hardware to be mounted vertically or horizontally inside densely configured rack enclosures. The PDU can also be mounted on a wall or under a shelf.

    Scalable. In smaller networks, conditioned power can be distributed through a single PDU from a UPS, while a complex data center might require the connection of multiple PDUs to a large-capacity UPS system.



  • Durable Metal Housing
    Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.



  • Three-Year Limited Warranty
    Covers the CPS1215RM for three years for as long as you own the product
Input
Circuit Breaker15 A
Cord Length15 ft (4.6 m)
Input Plug TypeNEMA 5-15P
Maximum Input Current15A
Nominal Input Voltage100 – 125 VAC
PhaseSingle Phase
Plug StyleStraight

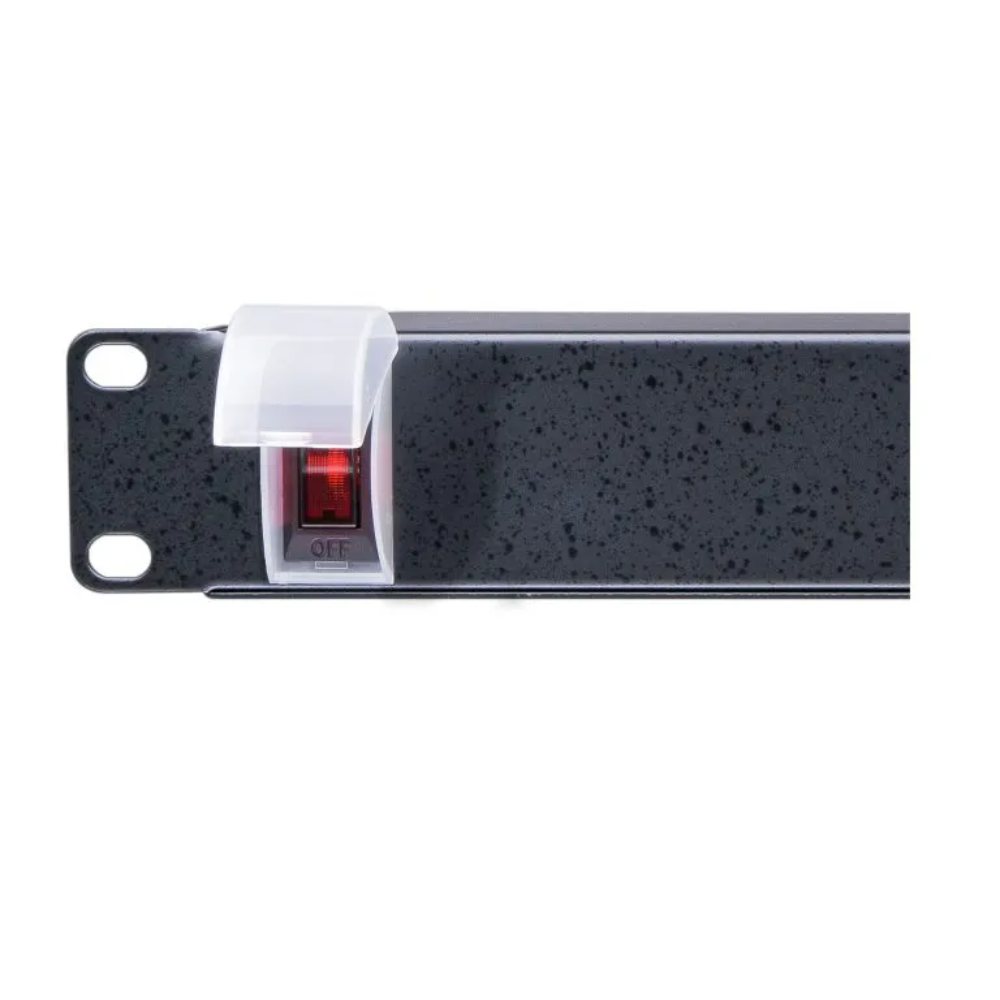

SwitchLighted On/Off
Output
Nominal Output Voltage100 – 120 VAC

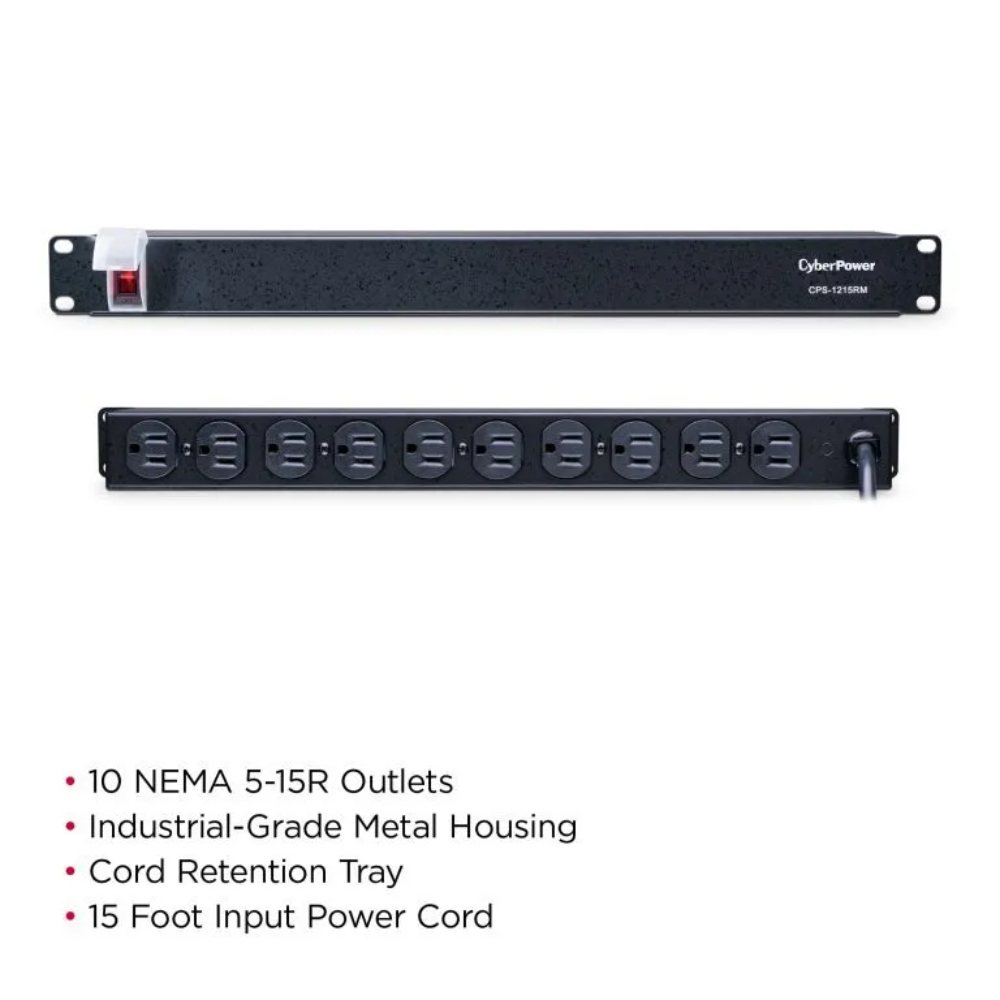

Outlet Type10 – NEMA 5-15R
Outlets – # of Banks1
Outlets – Front0
Outlets – Rear10
Outlets – Total10
Overload Protection15A
USB Charge PortNo
Surge Protection & Filtering
Clamping Voltage800V (H-N)
Physical
ColorBlack
Cord Retention Tray/Cord OrganizersYes
Form Factors Supported1U Rackmount
0U Vertical Rackmount
Undercounter Installation Supported
Material of ConstructionMetal
Rack Height1U

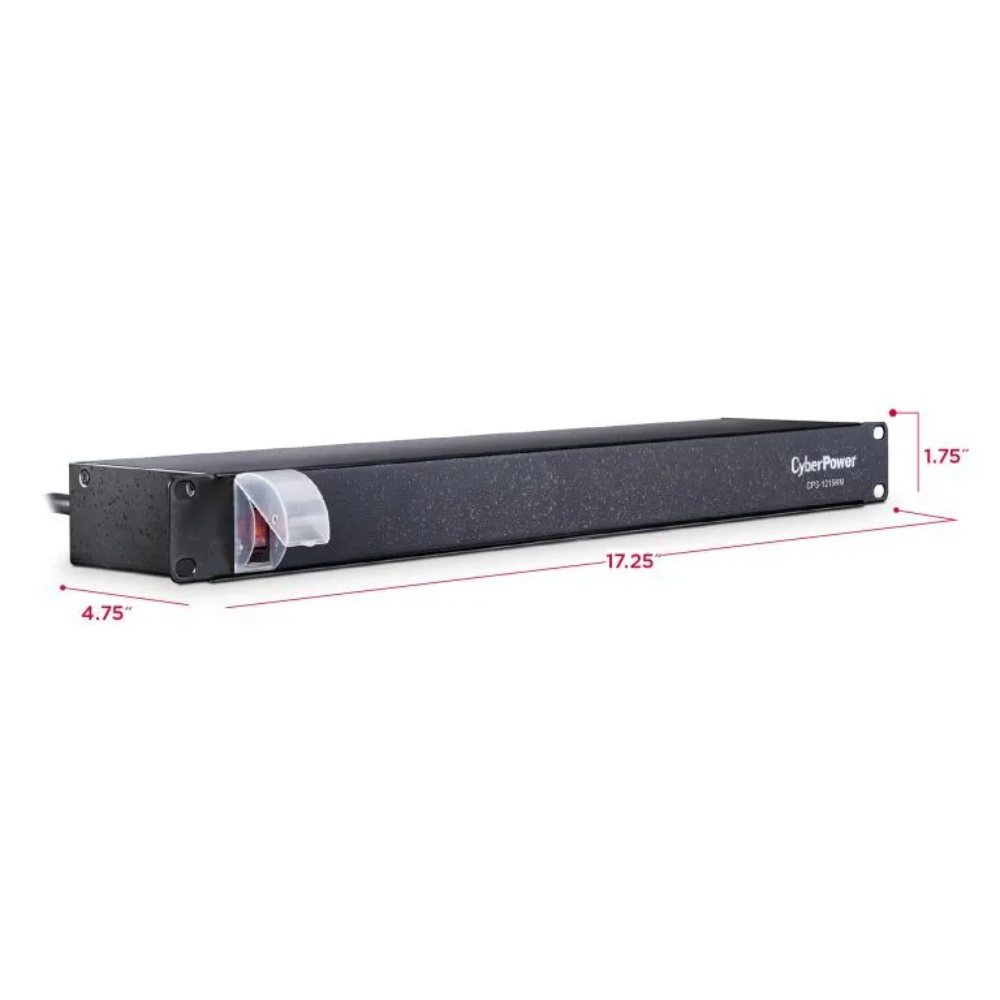

Dimensions
Physical Dimensions – (WxHxD) (cm)43.82 x 4.45 x 12.07 (cm)
Physical Dimensions – (WxHxD) (in)17.25 x 1.75 x 4.75 (in)
Physical Dimensions – (WxHxD) (mm)438 x 44 x 121 (mm)
Physical Weight (kg)2.27
Physical Weight (lb)5
Dimensions – Shipping
Shipping – Weight (kg)9.41
Shipping – Weight (lb)20.75
Shipping Dimensions – (WxHxD) (cm)5.84 x 25.15 x 51.74 (cm)
Shipping Dimensions – (WxHxD) (in)2.3 x 9.9 x 20.37 (in)
Shipping Dimensions – (WxHxD) (mm)58.42 x 251.46 x 517.4 (mm)
Environmental
Operating Elevation0 – 10000 ft (0 – 3048 m)
Operating Relative Humidity0 – 95 % (non-condensing)
Operating Temperature32 – 104 °F (0 – 40 °C)
Storage Elevation0 – 50000 ft (0 – 15239 m)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Certifications
SafetyUL Recognized
Warranty
Product Warranty3 Year Limited Warranty
