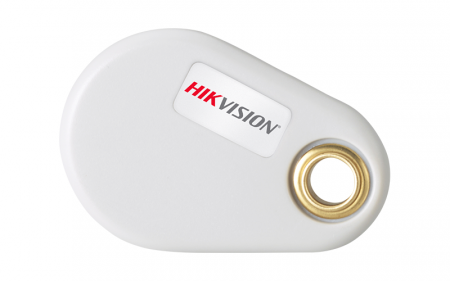

Hikvision - DS-K7M153-P - 125KHz Prox Key Fob 25 Pack
Part number:
DS-K7M153-P
Price:
Hikvision proximity fobs sets the electronic security benchmark for 125 kHz proximity readers, cards, and tags. Based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.
Features:
- 125kHz Frequency
- Up to 3.5" (88 mm) Read Range
- Slot-Punch Standard Vertical Slot
- 25 Clamshell Fobs Included
| DS-K7M153-P | |
| System Parameters | |
| Technology | Proximity |
| Frequency | 125 kHz |
| Operation | Passive (no battery) |
| Type | Key fob |
| Formats | Wiegand (26-bit and custom formats) and ABA Track II magnetic stripe (clock and data) |
| Material | ABS |
| Color | Gray |
| Slot Punch | Standard reinforced brass eyelet |
| Read Range | Up to 3.5" (88 mm) |
| Single Key Fob Dimensions | 1.2" W × 1.5" H × 0.15" D (30 mm × 38 mm × 3.8 mm) |
| Shipping Dimensions (25 Key Fobs) | 3.5" W x 2.3" H x 1.8" D (88 mm x 57 mm x 46.8 mm) |
| Slot Punch | Standard reinforced brass eyelet |
| Read Range | Up to 3.5" (88 mm) |
| Single Key Fob Dimensions | 1.2" W × 1.5" H × 0.15" D (30 mm × 38 mm × 3.8 mm) |
| Shipping Dimensions (25 Key Fobs) | 3.5" W x 2.3" H x 1.8" D (88 mm x 57 mm x 46.8 mm) |
