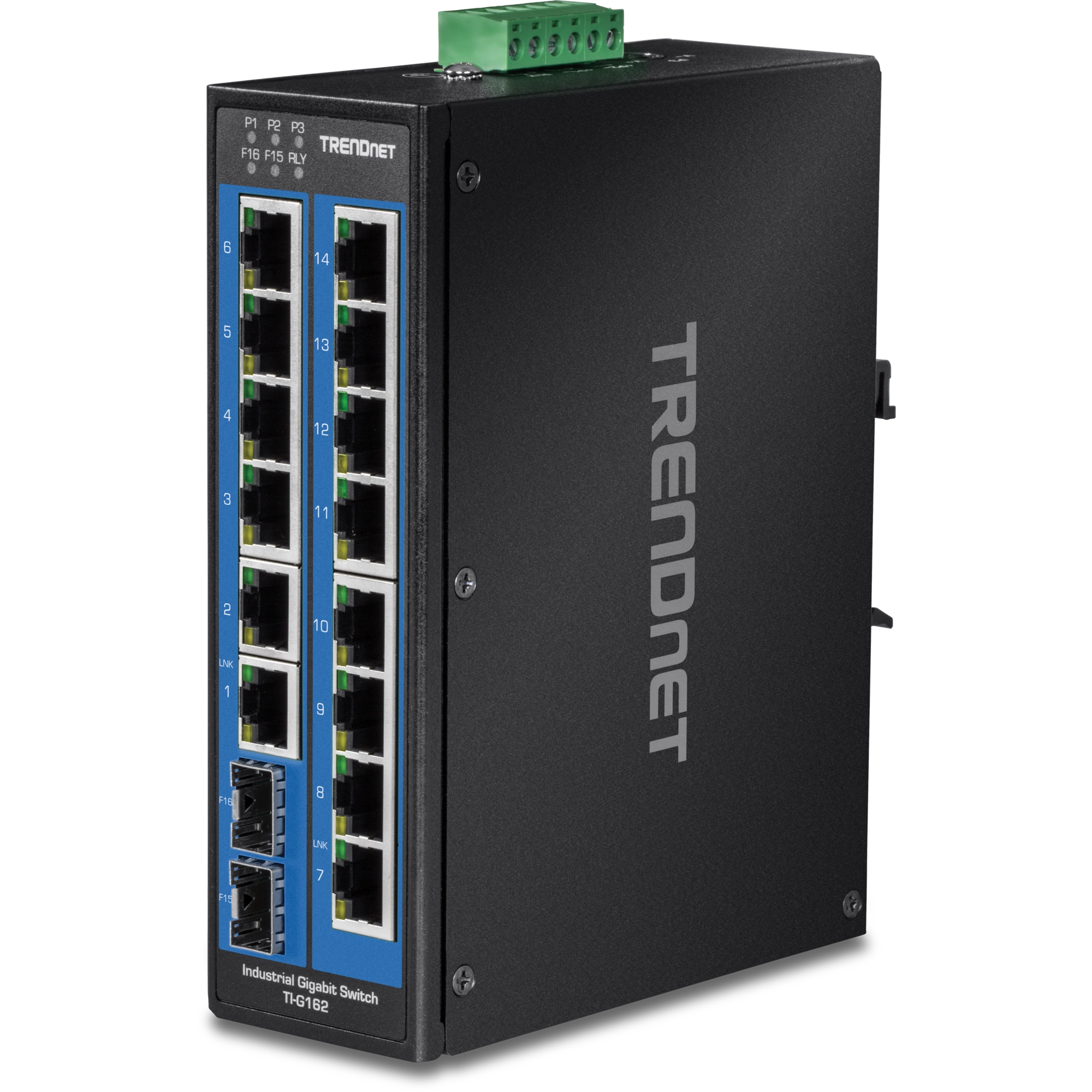

TRENDnet's Industrial Gigabit DIN-Rail Switches are reliable and rugged networking solutions that are designed for use in both extreme and demanding environments. Each Industrial Gigabit DIN-Rail Switch features a rugged IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures for industrial environments within -40° – 75° C (-40° – 167° F). Our hardened industrial switch models feature copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that supports 1000Base-FX modules for long distance fiber networking applications.
Gigabit Ports
This Industrial switch features copper Gigabit ports for high-speed device connections, and Gigabit SFP slots that support 1000Base-FX modules for long distance fiber networking applications.
Redundant Power
Multiple power inputs provide redundant power with overload current protection on this hardened industrial switch, minimizing overall network downtime (power supplies sold separately).
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration, shock, and operate within a wide temperature range of -40° – 75° C (-40° – 167° F).
Features:
- 14 x Gigabit ports
- 2 x Gigabit SFP slots
- 32Gbps switching capacity
- Hardened IP30 rated metal switch

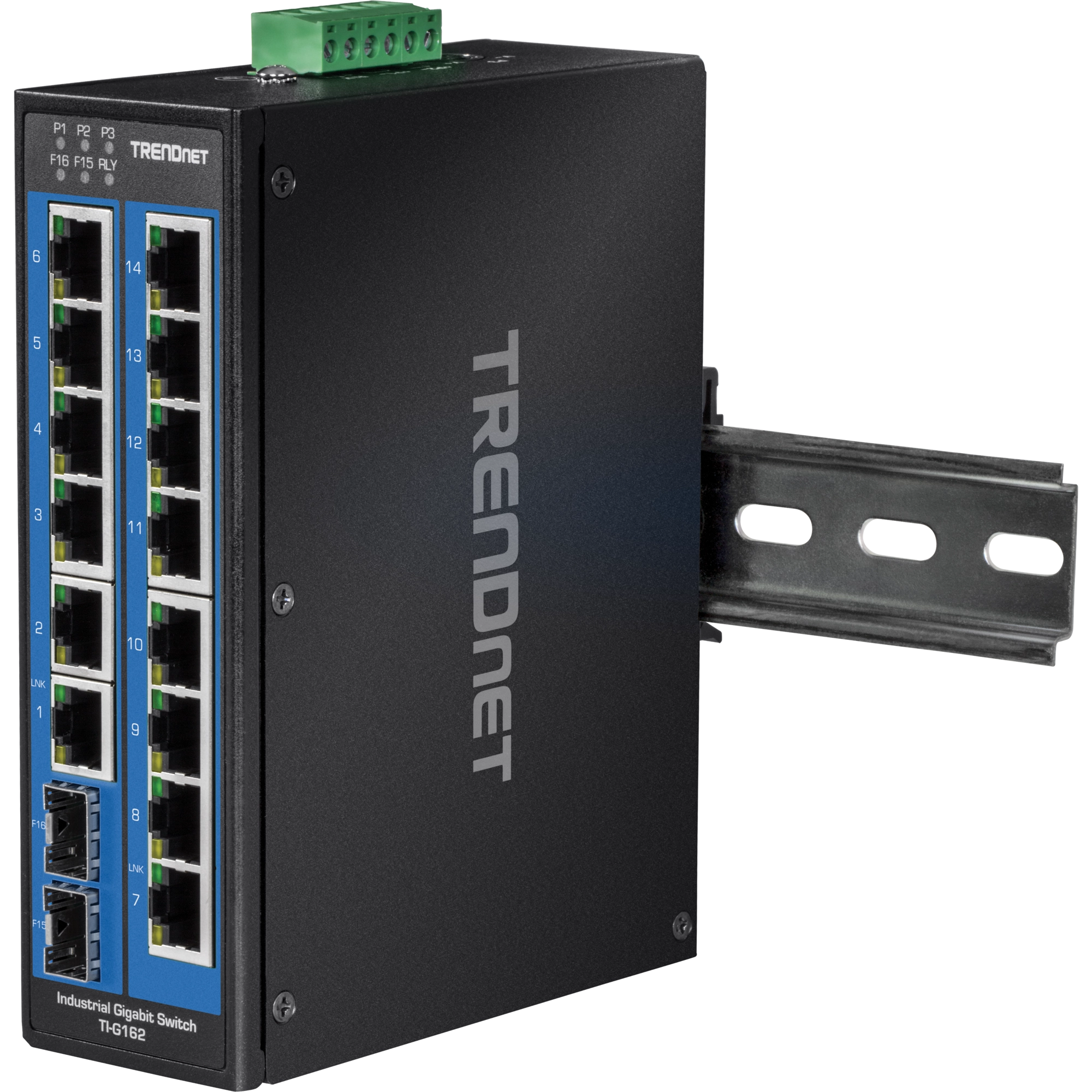

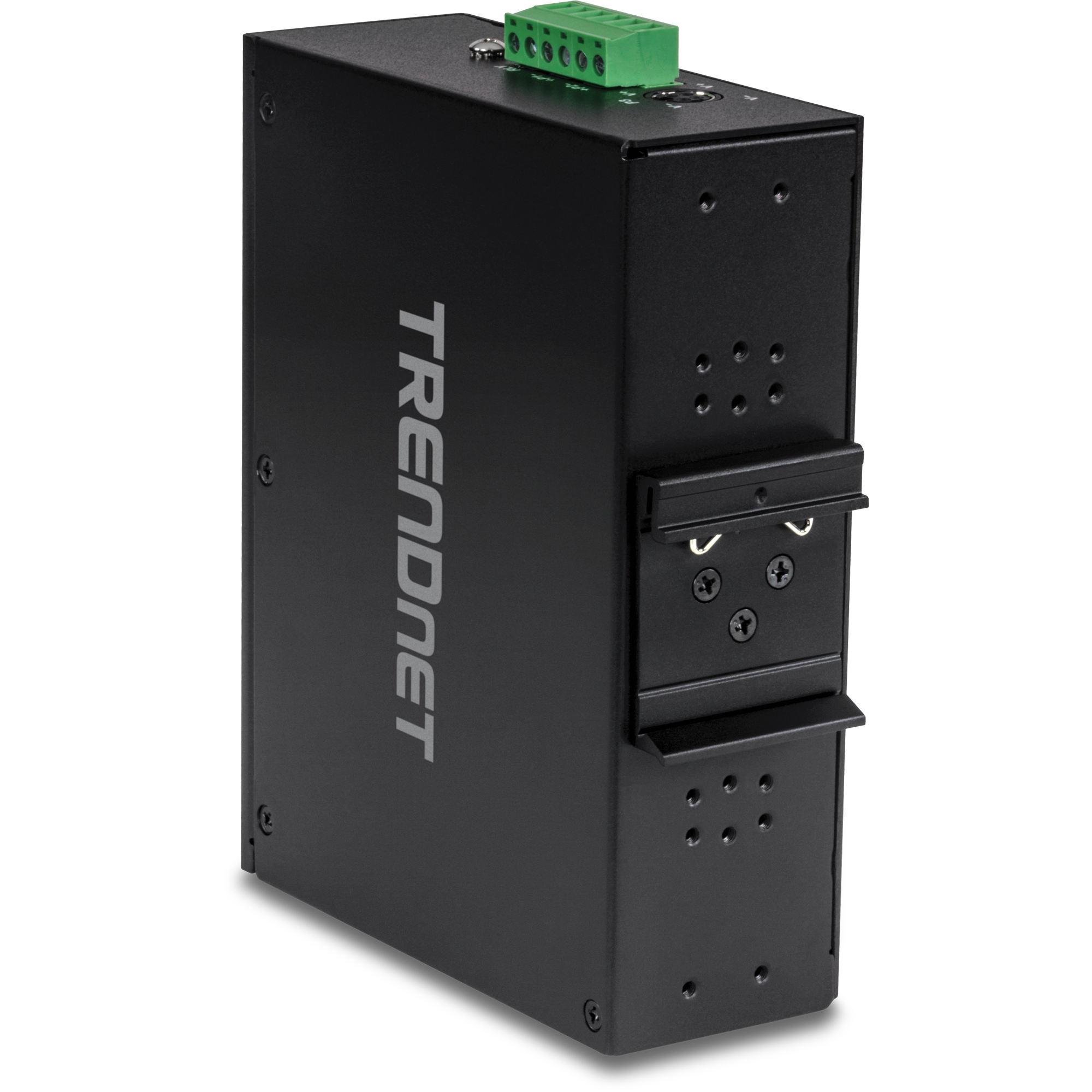

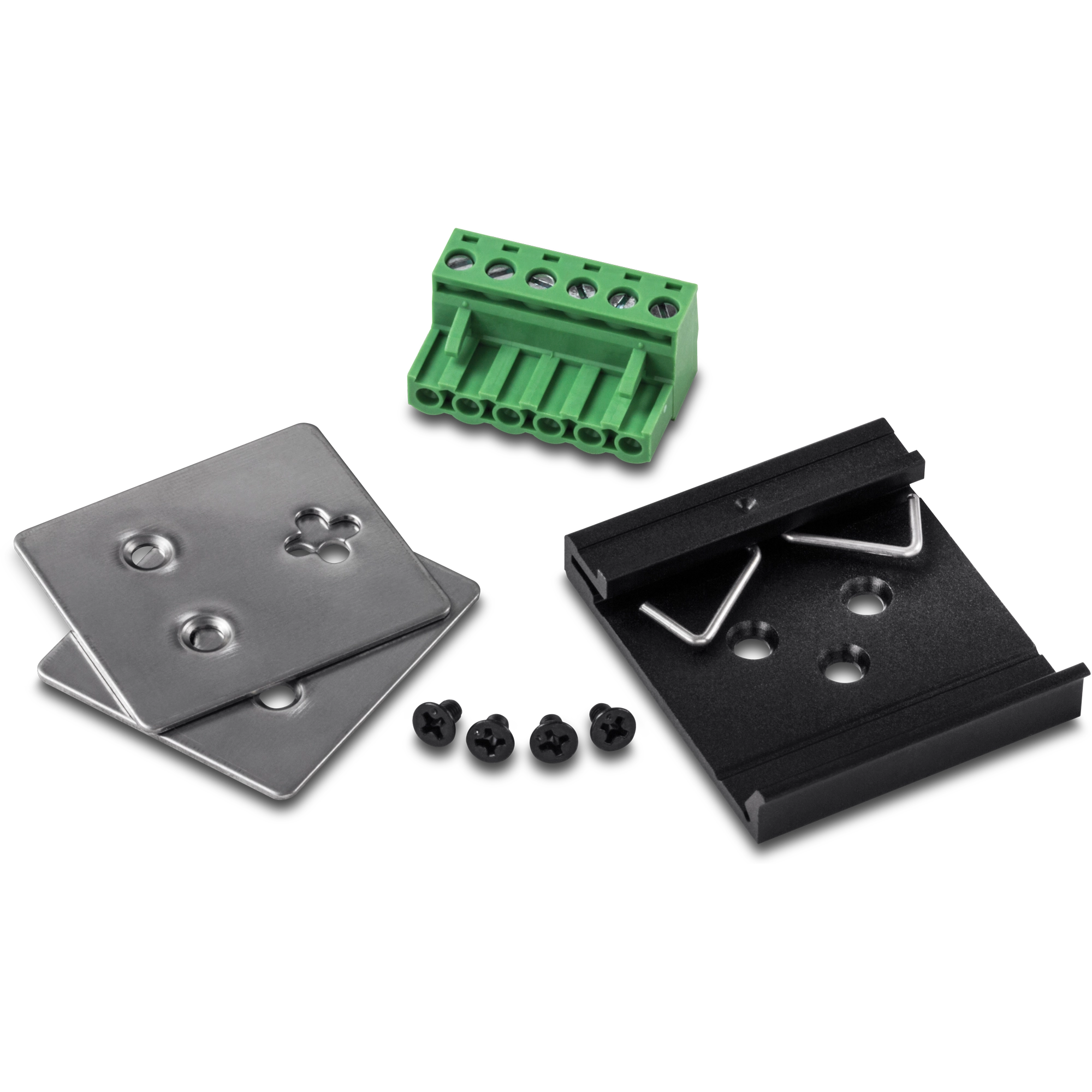

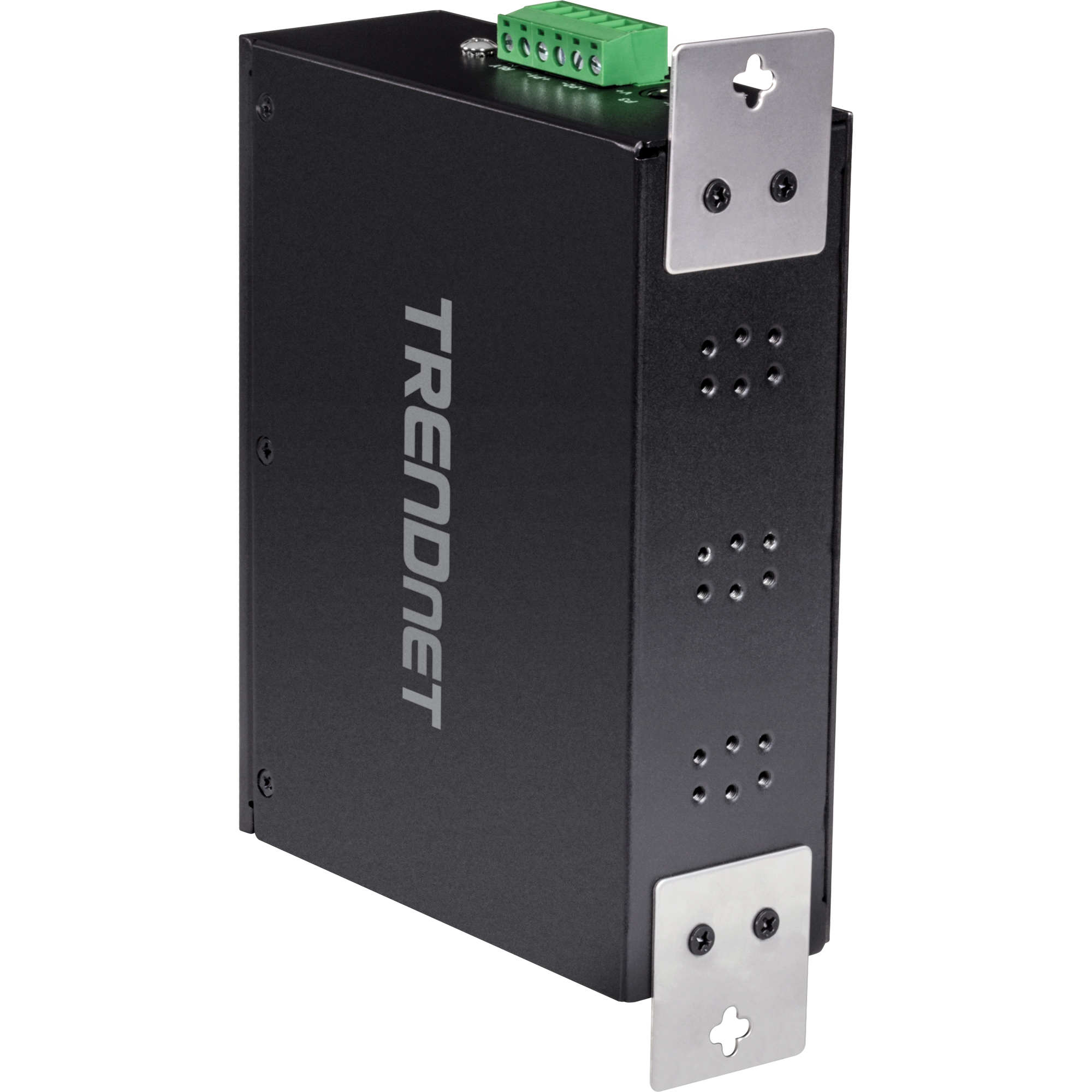

- Includes DIN-Rail mount and wall mount brackets
- Wide operating temperature range of -40° – 75°C (-40° – 167°F)
- Multiple power inputs provide redundant power with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (model: TI-M6024)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3x | |
| IEEE 802.3z | |

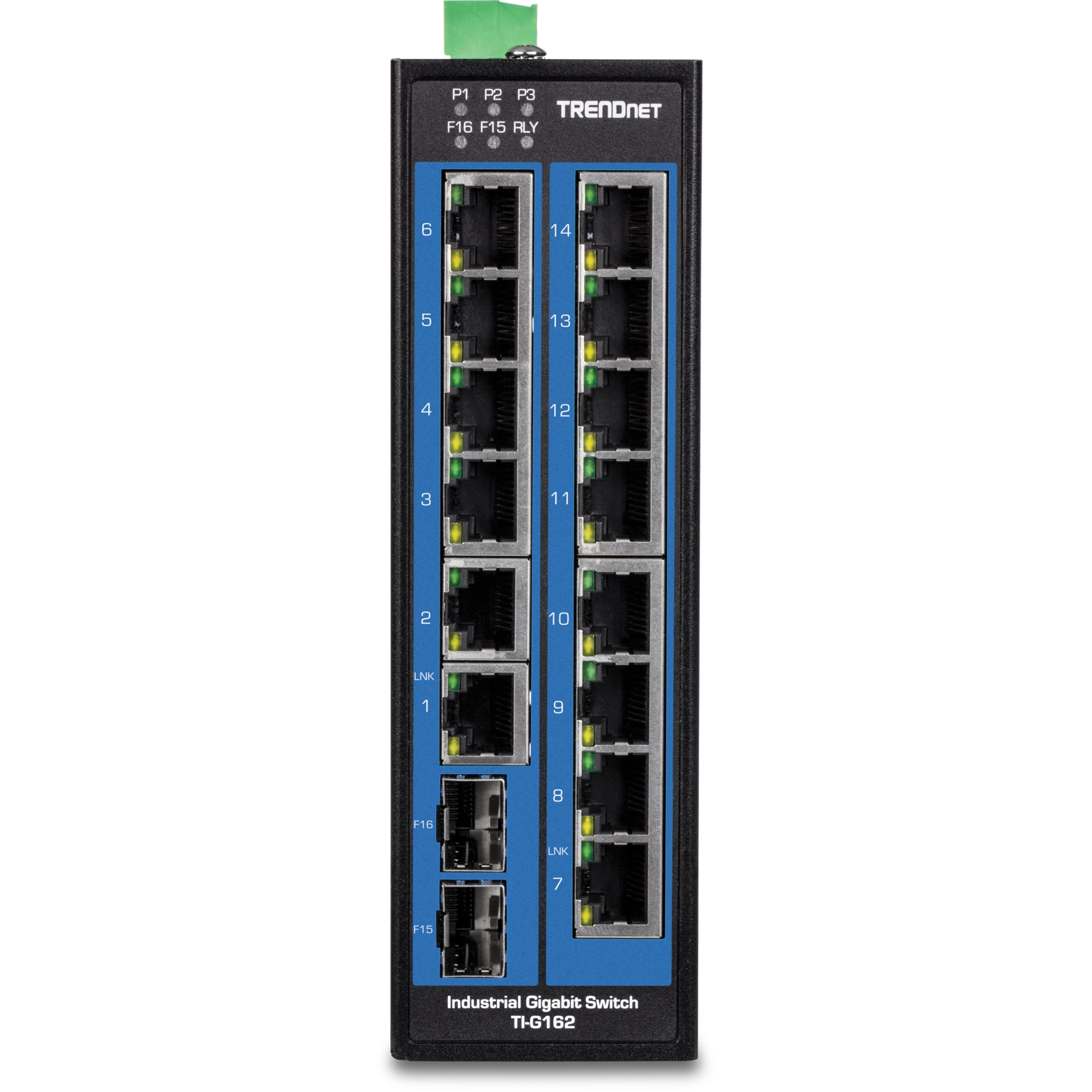

| Device Interface | 14 x Gigabit ports |
| 2 x Gigabit SFP slots | |
| 6-pin removable terminal block | |
| LED indicators | |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2000Mbps (full duplex) | |
| SFP: 2000Mbps (full duplex) | |
| Performance | Data RAM Buffer: 512KB |
| Switching Fabric: 32Gbps | |
| MAC Address Table: 8K entries | |
| Jumbo Frame: 9KB | |
| Forwarding rate: 23.8Mpps (64-byte packet size) | |
| Special Features | Hardened components rated for extreme temperatures |
| Multiple power inputs | |
| ESD contact 6kV, air 8kV, and surge 2kV support | |
| Low-profile design | |
| DC Power | Input: 12 – 56V DC |
| Recommended power supply: TI-M6024 (sold separately) | |
| Max. consumption: 13W | |
| Optional Power Adapter (48VDC3000 sold separately) | Input: 100 – 240V AC, 50/60Hz, 2A |
| Output: 48V DC, 3.34A 160W max. | |

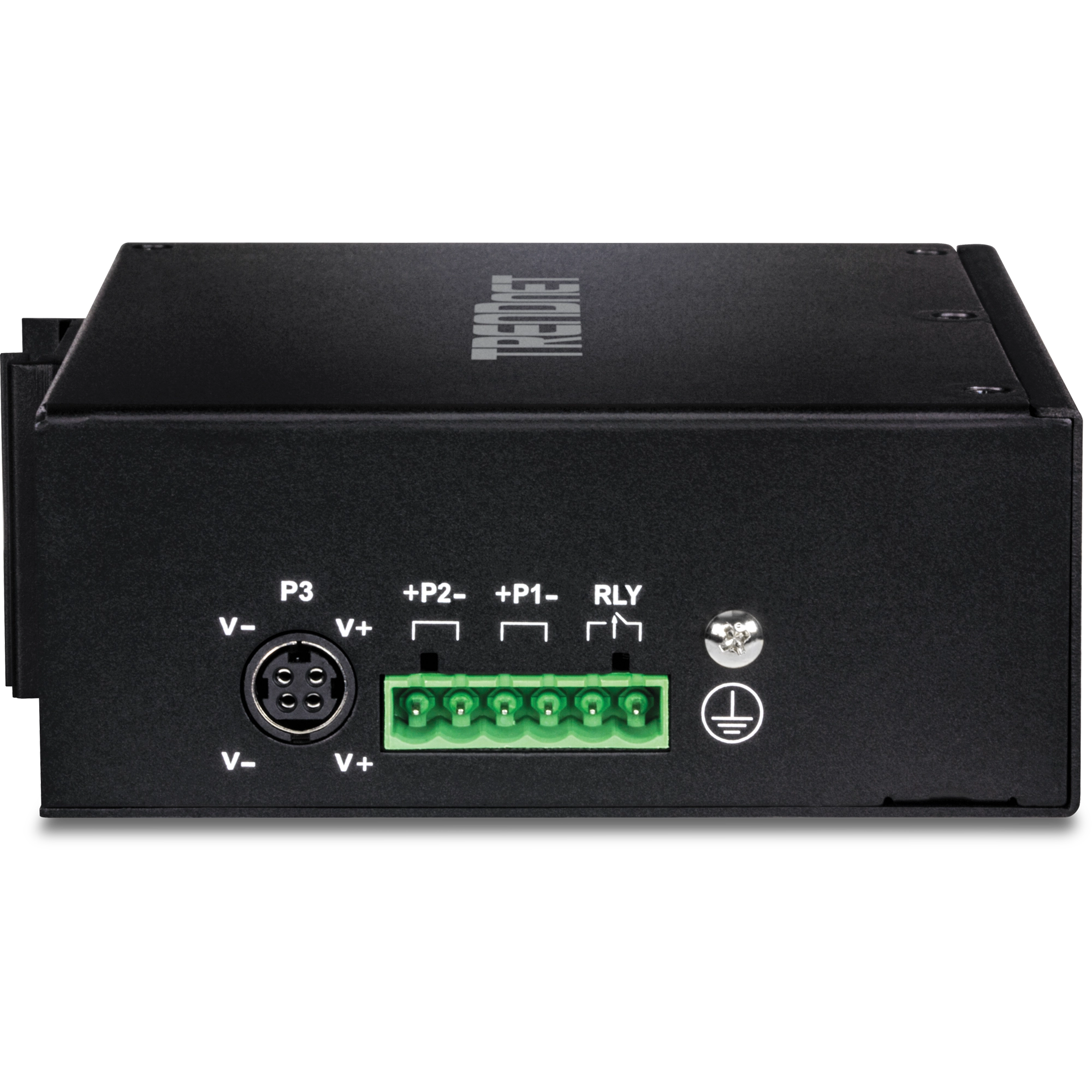

| Terminal Block | Redundant power inputs, alarm relay contact, 6 pin |
| Wire range: 0.34mm^2 to 2.5mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5Nm / 0.56Nm | |
| Wire strip length: 7-8mm | |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1A, 24V DC |
| Open circuit mode when two power sources are connected | |
| Short circuit mode when only one power source is connected | |
| MTBF | 514,167 hrs @ 50° C |
| 188,310 hrs @ 75° C | |
| Housing | IP30 metal case |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| 6kV contact protection | |
| 8kV air protection | |
| 2kV surge protection | |
| Operating Temperature | - 40° – 75° C (-40° – 167° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions (L x W x H) | 155 x 120 x 48mm (6 x 4.7 x 1.9 in.) |
| Weight | 536g (18.9 oz.) |
| Certifications | CE |
| FCC | |
| MET | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| Warranty | Lifetime Warranty* |
