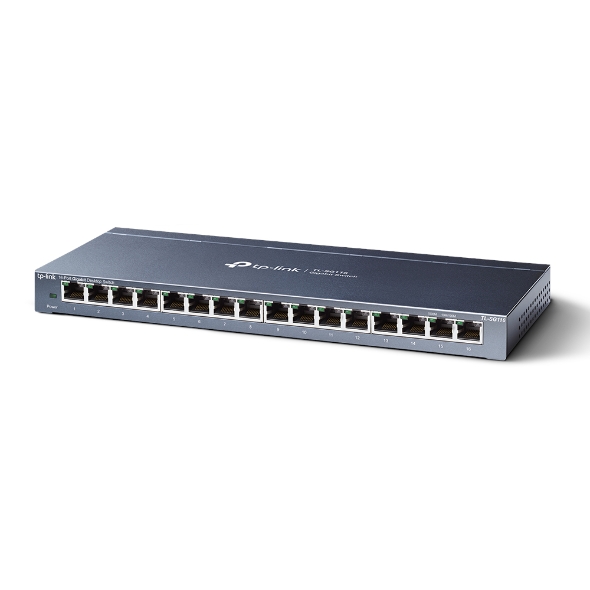

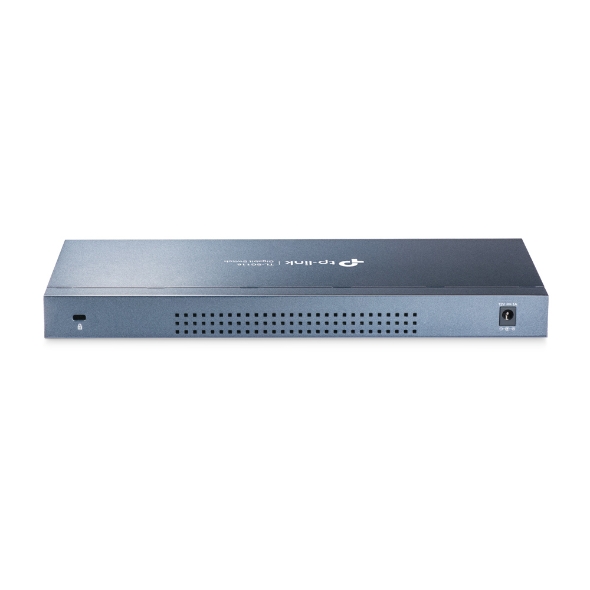

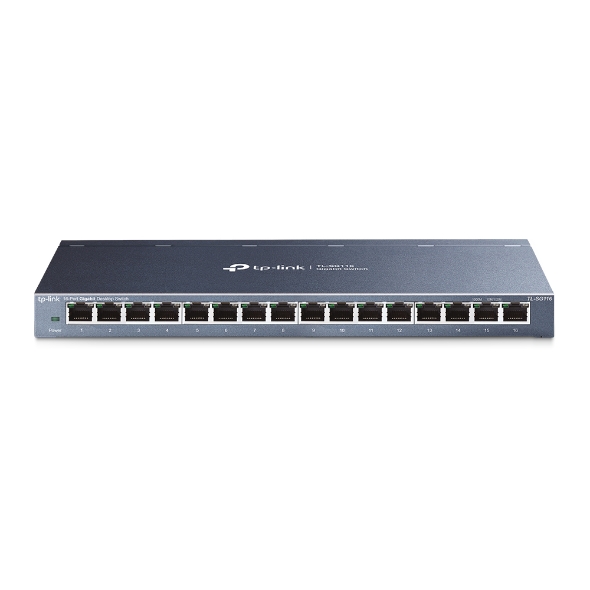

16-Port Gigabit Desktop Switch
Features:
- 16 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Steel housing, desktop or wall-mounting design
- Support 802.1p/DSCP QoS and IGMP Snooping function
- Plug and play, with no configuration needed
| Technical Specification | |
| Standards and Protocols | IEEE 802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1p |
| Interface | 16 × 10/100/1000Mbps Ports |
| Auto-Negotiation, Auto-MDI/MDIX | |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter 100VAC ~ 240VAC |
| (Output: 12VDC / 1.0A) | |
| LED Indicator | System Power |
| Link/Act indicators per port built into each RJ-45 port | |
| Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in. |
| (286 × 112 × 25 mm) | |
| Max Power Consumption | 10W |
| Max Heat Dissipation | 34.1 BTU/h |
| PERFORMANCE | |
| Packet Forwarding Rate | 23.8Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 10KB |
| SOFTWARE FEATURES | |
| Advanced Features | Green Technology |
| 802.3x Flow Control | |
| 802.1p/DSCP QoS | |
| IGMP Snooping | |
| Transfer Method | Store and Forward |
| OTHERS | |
| Certification | FCC ,RoHS |
| Package Contents | 16-Port 10/100/1000Mbps Desktop Switch |
| Power Adapter | |
| Installation Guide | |
| Rubber Feet | |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Storage Temperature: -40°C~70°C (-40°F~158°F) | |
| Operating Humidity: 10% ~ 90%, non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
