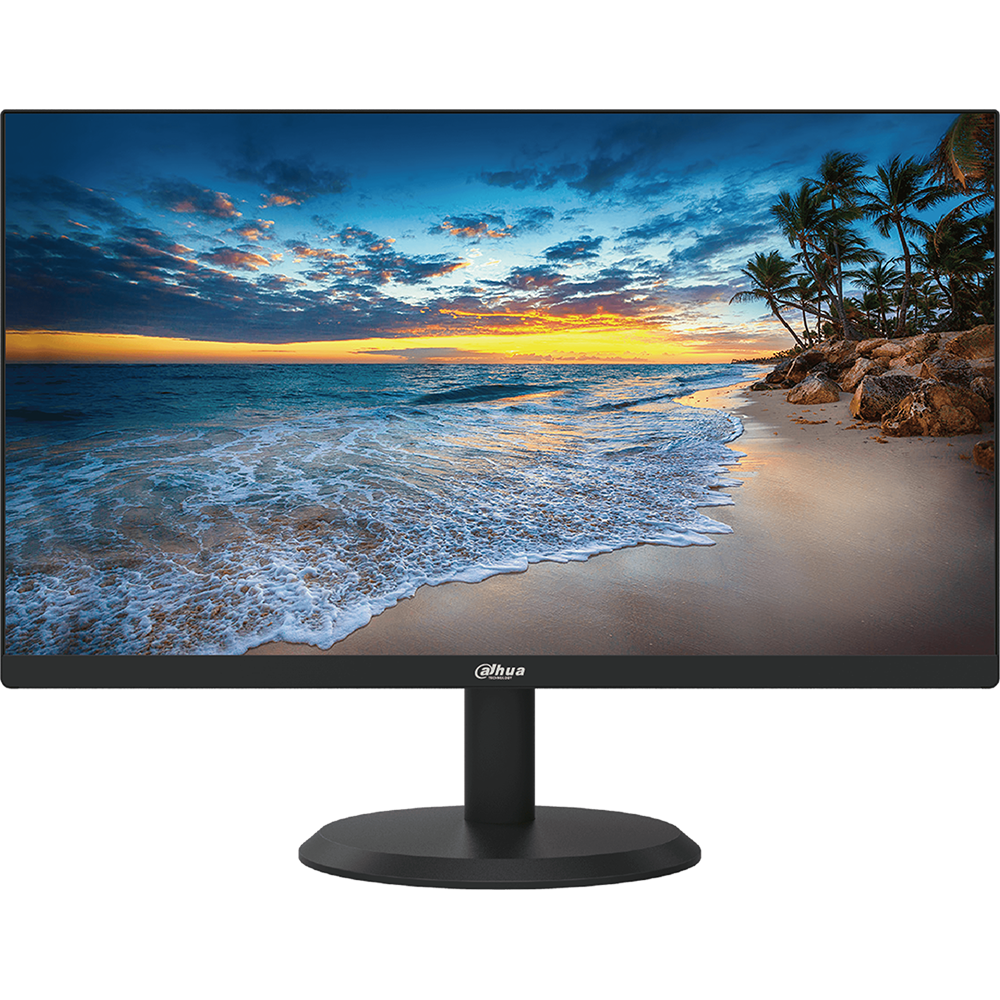

Name: Dahua - DHL22-F600-S - 21.5-in. Full HD LED Monitor
Brand: Dahua
SKU: DHL22-F600-S

Home — Brands — Dahua — Dahua Accessories — Display and Control —

Dahua - DHL22-F600-S - 21.5-in. Full HD LED Monitor

Part number:

DHL22-F600-S

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

21.5-in. Full HD LED Monitor

Features:

Technical Specification
System
Viewable Picture Area	21.5 in. (measured diagonally)
Aspect Ratio	16:9
Resolution	1920 x 1080 (Full HD)
Backlight	LED
Brightness/Luminance	200 cd/m²
Contrast	1000:1
Angle of View	Horizontal: 178° Vertical: 178°
Response Time	5 ms
Display Colors	16.7 Million
Refresh Rate	60 Hz
Interface
Inputs	• One (1) HDMI • One (1) VGA (D-sub) • One (1) Audio
Audio Output	Two (2) Built-in Speakers, 2 W
Electrical
Power Supply	110 VAC to 240 VAC, 50/60 Hz
Consumption	Standard: 25 W Standby: ≤ 0.5 W
Certifications
Safety	EN 60950-1:2006+A11:2009+A1:2010+A12:2011+ A2:2013
Electromagnetic Compensation (EMC)	CFR 47 FCC Part 15 Subpart B EN 55032:2015, EN 55022:2010/AC:2011, EN61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011+A1:2014, EN 55024:2010+A1:2015, IEC 61000-4-2:2008, IEC 61000-4-3:2006+A1:2007+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014+A1:2017, IEC 61000-4-6:2013, IEC 61000-4-8:2009,IEC 61000-4-11:2004+A1:2017

Construction/Environmental
Dimensions, without base	502.80 mm x 299.80 x 47.60 mm (19.80 in. x 11.80 in. x 1.87 in.)
Dimensions, packaging	574.0 mm x 408.0 mm x 107.0 mm (22.60 in. x 16.06 in. x 4.21 in.)
Bezel Width	13.50 mm (U/R/L), 19.0 mm (B)
Wall Mount	75.0 mm x 75.0 mm (3.0 in. x 3.0 in.)
Net Weight	3.20 kg (7.050 lb)
Gross Weight	4.80 kg (10.58 lb)
Operating Conditions	0° C to 40° C (32° F to 104° F), 10% to 85% RH
