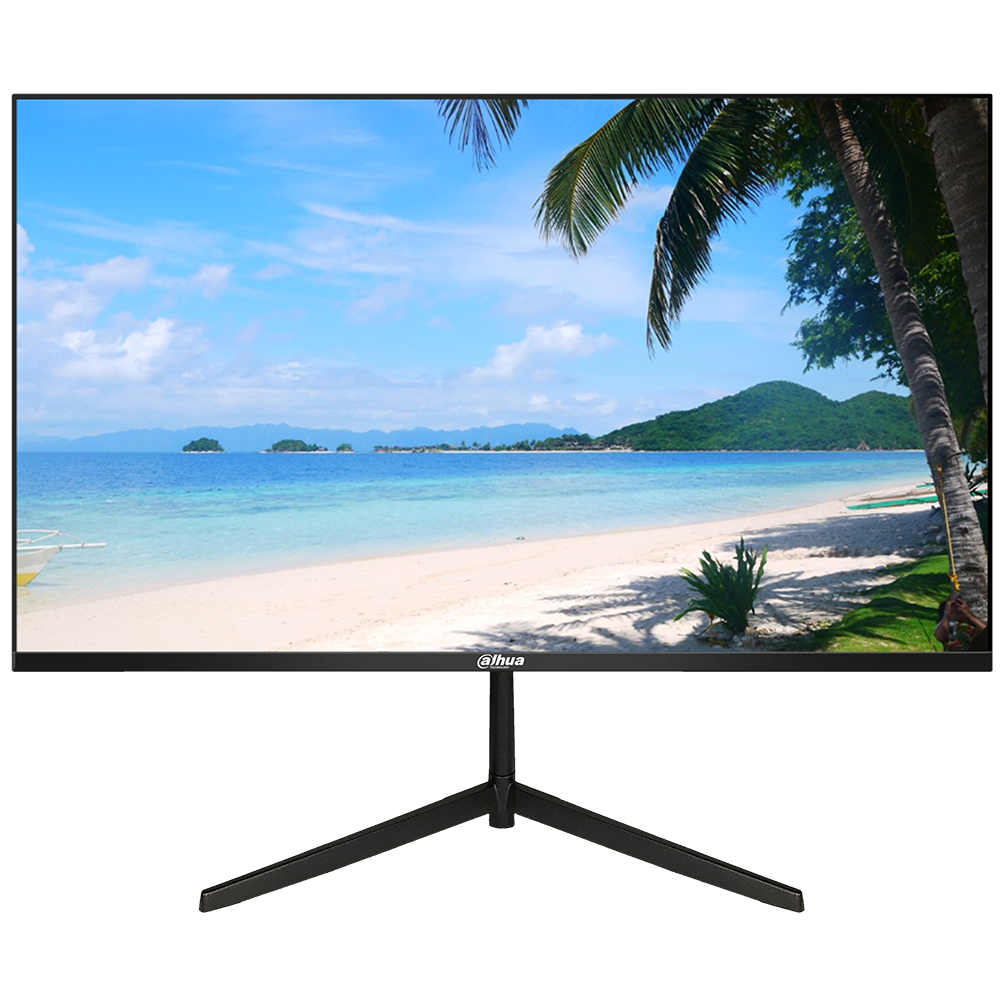

Dahua - DHI-LM24-B200 - 23.8-in. Full HD LED Monitor
Part number:
DHI-LM24-B200
Price:
23.8-in. Full HD LED Monitor
Features:
- High-fidelity Digital Signal Processing for Vivid Video
- 1920 x 1080p Resolution; 16:9 Aspect Ratio
- Narrow Bezel Design Offers 178°/178° Viewing Angles
- 16.7 Million Colors
- Supports HDMI and VGA Video Inputs
- Blue Light Filter
- Compatible with VESA Mounting Patterns
- Low Energy Consumption for a Long Service Life
| System | |
| Viewable Picture Area | 23.80-in. (measured diagonally) |
| Aspect Ratio | 16:09 |
| Resolution | 1920 x 1080 (Full HD) |
| Backlight | Full-array LED |
| Brightness/Luminance | 200 cd/m² |
| Contrast | 1000:1 |
| Angle of View | Horizontal: 178° Vertical: 178° |
| Response Time | 6.5 ms |
| Refresh Rate | 60 Hz |
| Display Colors | 16.7 Million |
| Interface | |
| Video Inputs | • One (1) HDMI • One (1) VGA (D-sub) |
| Audio Output | One (1) Channel, 3.5 mm |
| Electrical | |
| Power Supply | 110 VAC to 240 VAC, 50/60 Hz |
| Consumption | Standard: 25 W Standby: ≤ 0.5 W |
| Certifications | |
| Safety | EN 62368-1:2014+A11:2017 |
Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B ANSI C63.4-2014 EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55024:2010 +A1:2015, EN 50130-4:2011 +A1:2014, EN 55035:2017 |
| Construction/Environmental | |
| Monitor Dimensions (W x H x D) (without pedestal) | 541.0 mm x 317.0 mm x 42.0 mm (21.30 in. x 12.50 in. x 1.70 in.) |
| Package Dimensions (W x H x D) | 613.0 mm x 441.0 mm x 112.0 mm (24.10 in. x 17.40 in. x 4.41 in.) |
| Bezel Width | Up: 3.80 mm (0.15 in.) Right/Left: 3.70 mm (0.14 in.) Bottom: 11.0 mm (0.43 in.) |
| Net Weight | 3.0 kg (6.60 lb) |
| Gross Weight | 4.0 kg (8.80 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F), 10% to 85% RH |
