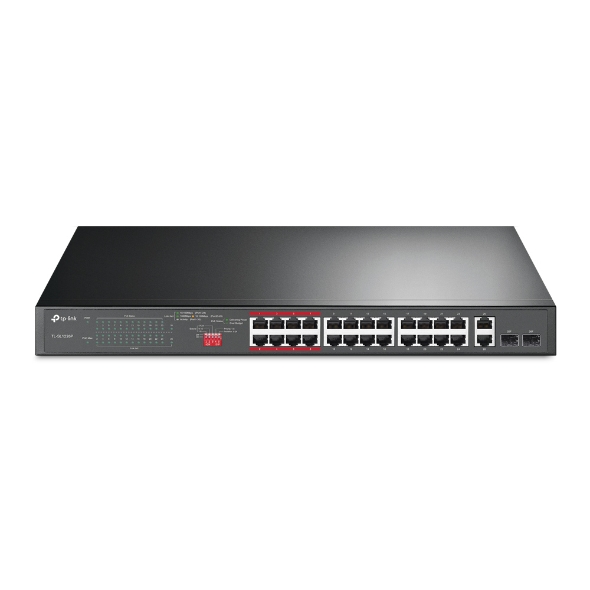

TP-Link - TL-SL1226P - 24PORT 10/100MBPS + 2PORT PERP GIGABIT UNMANAGED POE+ SWITCH
Part number:
TL-SL1226P
Price:
24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Features:
- 24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

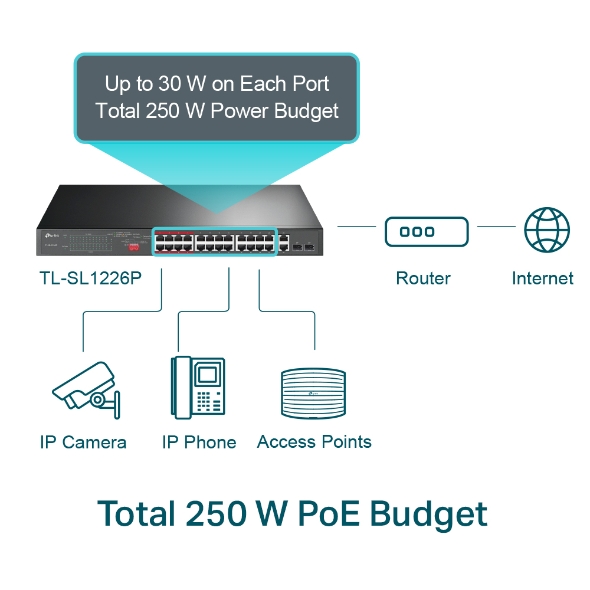

- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

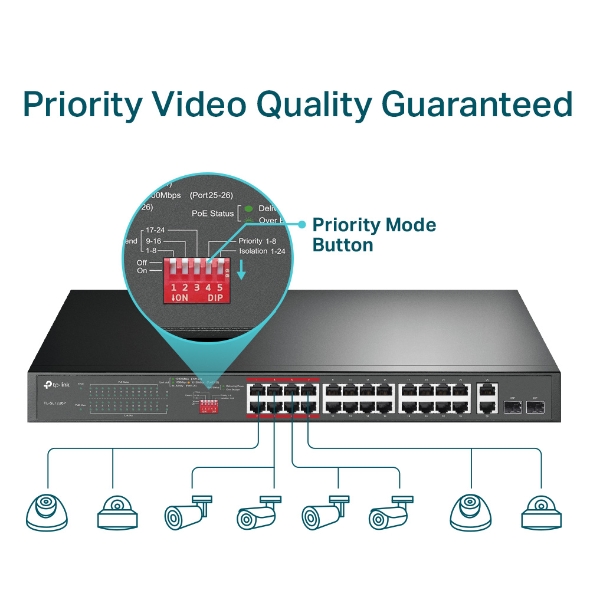

- Priority Mode ensures high priority of ports 1–8 to guarantee the quality of sensitive applications like video monitor
- Isolation Mode allows one-click client traffic separation for higher security and performance
- Plug and play, with no configuration and installation needed
| Technical Specification | |
| Interface | 24× PoE+ 10/100 Mbps RJ45 Ports |
| 2× 10/100/1000 Mbps RJ45 Ports | |
| 2× Combo Gigabit SFP Slots | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-X MMF, SMF | |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Packet Forwarding Rate | 6.5472 Mpps |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant |
| PoE Ports: Port 1 – Port 24 | |
| PoE Power Budget: 250 W | |
| Mac Address Table | 8 K |
| Jumbo Frame | 10 KB |
| Switching Capacity | 8.8 Gbps |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 18.32 W (220/50 Hz. no PD connected) |
| 294 W (220/50 Hz. with 250 W PD connected) | |
| Max Heat Dissipation | 62.47 BTU/h (no PD connected) |
| 1002.54 BTU/h (with 250 W PD connected) | |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible With IEEE 802.3at/af Compliant PDs |
| Extend Mode (Up to 250m PoE power supply and data transmission) | |
| Priority Mode | |
| Isolation Mode | |
| PD Detection | |
| Intelligent Power Supply | |
| Mac Address Auto-Learning and Auto-Aging | |
| IEEE802.3x Flow Control | |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC |
| Package Contents | TL-SL1226P |
| Power Cable | |
| Installation Guide | |
| Two mounting brackets and the fittings | |
| Environment | Operating Temperature: 0–50 °C (32–122 °F) |
| Storage Temperature: -40–70 °C (-40–158 °F) | |
| Operating Humidity: 10–90% non-condensing | |
| Storage Humidity: 5–90% non-condensing | |
