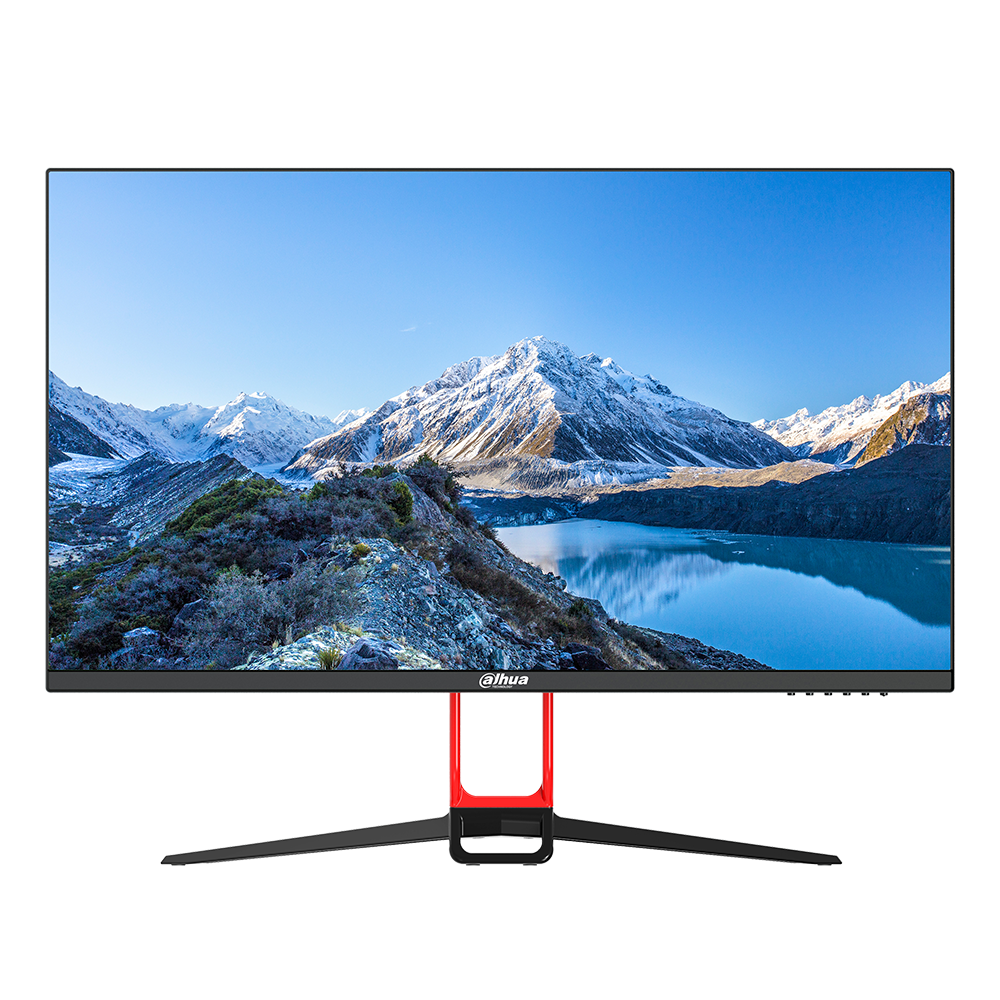

Dahua - DHI-LM28-F400 - 28-inch Ultra-HD LED Monitor
Part number:
DHI-LM28-F400
Price:
28-inch Ultra-HD LED Monitor
Features:
- 4K Ultra-HD resolution
- IPS Panel Technology
- 178°H/178°V Extra-wide Viewing Angle for Overall Viewing Performance
- Screen Surface With a Hardness of at Least 3h
- Supports Multiple Signal Interfaces
- Compatible with VESA Mounting Pattern 75 mm X 75 mm
| Technical Specification | |
| Display | |
| Aspect Ratio | 16:9 |
| Resolution | 3840 x 2160 (UHD) |
| Backlight | LED |
| Brightness/Luminance | 300 cd/m2 |
| Contrast | 1000:1 |
| Display Color | 1.07B |
| View Angle (H/V) | 178°/178° |
| Tilt | -5° to 15° |
| Reponse Time (typ.) | 5 ms |
| Refresh Rate | 60 Hz |
| Freesync | Supported |
| Interface | |
| Input | One (1) DP 1.2, Two (2) HDMI 2.0 |
| Output | One (1) USB (for charging) |
| Speaker | Two (2) 2W |
| Electrical | |
| Power Supply | AC 100-240V |
| Power Consumption | 40 W |
| Environmental | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% to 85% RH |
| Construction | |
| Dimensions w/o Standard (W x H x D) | 637.88 mm x 368.53 mm x 57.36 mm (25.11 in. x 14.51 in. x 2.26 in.) |
| VESA | 75 mm × 75 mm (3.0 in. × 3.0 in.) |
| Net Weight | 7 kg (15.43 lb) |
| Gross Weight | 8.8 kg (19.40 lb) |
| Certifications | |
| CE | EN 62368-1:2014+A11:2017 IEC 62368-1:2014 EN 55032:2015+A11:2020 EN 55035:2017+A11:2020 EN 50130-4:2011+A1:2014 EN IEC 61000-3 2:2019 EN 61000-3 3:2013+A1:2019 |
| FCC | FCC CFR Title 47 Part 15 Subpart B |
