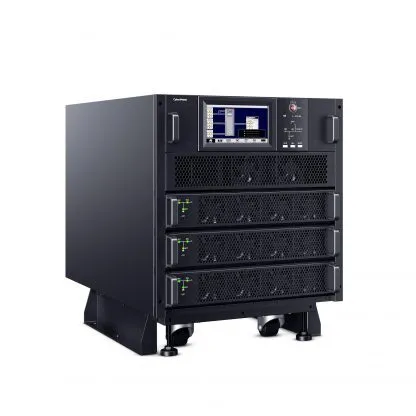

The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.
The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7” color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.
Product Features:
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
Full Matrix LCD Touch Screen
Simple to set up, the user-friendly 7” color touchscreen display provides key status indicators at-a-glance with alerts of potential problems that could impact equipment and cause downtime. Screen tilts up to 22 degrees for easy viewing.
Hot-Swappable Batteries
Keeps equipment running by eliminating downtime during UPS power maintenance.
N+N Redundancy
Ensures uninterrupted operation if the entire system fails. N+1 redundancy guarantees system availability if one power module fails.
Expandable External Battery Cabinet
Extends runtime by adding space for additional battery modules.
Smart Battery Mangement
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
Battery Equalization Technology
Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
PowerPanel® Business Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
RMCARD205
Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
Optional Input and Output 175A Circuit Breakers
Ensures power is turned off during service or maintenance and eliminates the risk of unintended powering off.
Upgradable UPS Firmware
Keeps equipment running by eliminating downtime during UPS power maintenance.
Multiple Language Options
The LCD Control Panel can be configured in English or Chinese.
Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator Compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB, Serial, Modbus, and SNMP Connectivity
Flexible connectivity to use PowerPanel software, Modbus, or a RMCARD205 to monitor and manage your Smart App Online 3-Phase Modular UPS.
Audible Alarms
Identifies when the UPS is running on battery power, overloaded, or has a low battery.
Customizable Configuration
The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack.
One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase UPS installation. See warranty for details.
Redundancy:
Power Module (N+1) – Ensures power continuity with an additional redundant power module option configuration. If a module fails, the rest of the modules take over to guarantee power needs are met.
UPS System (N+N) – Ensures uninterrupted system operation with a mirrored parallel system configuration and capability to fully take over connected power needs should either system go offline for any reason.
Scalable / Modular Design:
Depending on the model selected, the system can be scalable from 10-20kVA or 10-40kVA to meet current and future power needs within the same footprint. N+N parallel system power up to 80kVA capability.

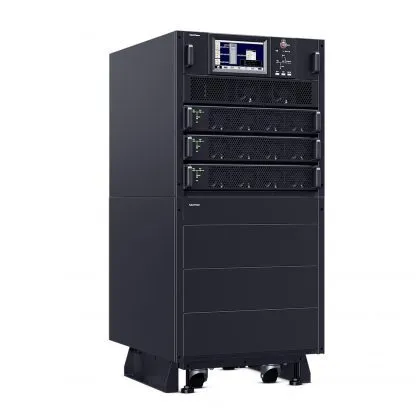

Highly configurable system can be adapted to different site needs. UPS and battery cabinets can be assembled as a tower stack, side-by-side, or within a rack. Power and battery modules are compact and designed for rapid assembly or removal.
High-Density Power Modules:
Compact 2U Design (3.3″ height) for easy installation and service. Compact footprint allows for an efficient cabinet design. Getting more power in less space will become critical as growing data centers confront physical space limitations.
User Interface LCD Color Touch Screen:
Intuitive LCD touch display control provides four main display windows; Main Menu, System Information, Power Path, and Warning Messages. The operator can control the UPS, check all measured parameters for UPS and battery status, plus monitor event and history logs.
Smart Battery Management:
Smart Battery Management (SBM) improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
General
| Dual Power Inputs | Yes |
| Energy Saving | Online ECO Mode Efficiency >97.5% |
| Hot Swappable Bypass Module | Yes – Qualified Personnel Only |
| Hot Swappable Power Module | Yes – Qualified Personnel Only |
| Module Maximum Capacity | 3 |
| Parallel Expansion (Max. Units) | 2 |
| Power Module Redundancy Capability | Yes |
| UPS Topology | Online Double Conversion |
Battery
| Battery Bus Voltage | Nominal: ±120VDC, one-side range: 120VDC – 132VDC |
| Battery Cabinet | Modular External |
| Charger Voltage Tolerance | ≤1% Float |
| Extended Battery Module | BCT3L9N125 |
| Hot Swappable | Yes |
| Hot Swappable Battery Module | Yes – Qualified Personnel Only |
| Recharge Power | Default 10% x UPS Power |
| Recharge Power (Selectable) | 1 % – 20 % |
| Replacement Battery Cartridge Quantity | 6 |
| Ripple Current | ≤5% C10 |
| Ripple Voltage | ≤1% VDC Float |
| Temperature Compensation (Per Cell) | -3 mV/°C |
Input
| Backfeed Protection | Yes |
| Bypass Input Voltage Range | -20 % – 15 % |
| Bypass Input Voltage Range (Selectable) | Lower limit: -10%, -20%, -30%, -40% Higher limit: +10%, +15%, +20%, +25% |
| Bypass Overload Protection | 110% – 130% Load for 5 Min 130% – 150% Load for 1 Min >150% Load for 300ms |
| Bypass Rated Current | 55.6A@ 208V |
| Bypass frequency tolerance (Default) | ±10% |
| Bypass frequency tolerance (Selectable) | ±2.5%, ±5%, ±10%, ±20% |
| Bypass to Inverter Switch Time | Synchronized switch: ≤1ms |
| Current rating of bypass neutral cable (A) | 1.7 x Input Rated Current |
| Input Connector | Hardwire (L1, L2, L3, N, G) |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Power Factor | 0.99 |
| Input Voltage | 208/120V 220/127V |
| Input Voltage Range | 187 VAC – 260 VAC |
| Phase | 3 Phase |
| Synchronization-Window | Rated frequency: ±2Hz |
| Synchronization-Window (Selectable) | ±0.5Hz – ±5Hz |
| THDI (%) | < 4% (Full Linear Load) |
Output
| Automatic Voltage Regulation | ±1 (Balanced Load) ±1.5 (100% Unbalanced Load) |
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| Efficiency | 92.5% (Battery Mode) 93% (Normal Mode) |
| Harmonic Distortion | < 1.5% at Linear Load < 6% at Non-Linear Load |
| Maintenance Bypass | Yes |
| Max Change Rate of Synch Frequency | 1 Hz/s |
| Max Change Rate of Synch Frequency (Selectable) | 0.1 – 5 Hz/s |
| Maximum Capacity (VA) | 20000 VA |
| Maximum Watts Capacity | 20000 W |
| Neutral Current Capability | 170 % |
| Non-Linear Load Capability | 100 % |
| On AC WaveForm | Sine Wave |
| Outlet Type | 1 – Hardwire Terminal Block |
| Output Connector | Hardwire (L1, L2, L3, N, G) |
| Output Frequency | 50/60 Hz (auto-sensing/configurable) |
| Output Power Factor | 1 |
| Output Voltage | 208/120V 220/127V |
| Output Voltage Range | ±5% VAC |
| Overload Protection | 110% Load for 10 min 125% Load for 1 min 150% Load for 30 sec >150% Load for 200 ms |
| Short Circuit Protection | 300% – 200ms |
| Synchronization Window (Rated ) | ±2Hz |
| Synchronization Window (Selectable) | ±1Hz – ±5Hz |
| Transient Voltage Response | ±5% |
| Typical Transfer Time | 0 ms |
| VA | 20000 VA |
| Watts | 20000 W |
Management & Communications
| Dry Contacts | Yes |
| Emergency Power Off (EPO) Port | Yes |
| LCD | Multifunction LCD Touch Screen Color |
| LED Indicators | Rectifier Battery Mode Bypass Mode Inverter Load Status |
| SNMP / HTTP Remote Monitoring | Yes – RMCARD205 pre-installed |
| Serial Port | 1 RS232 1 RS485 |
| Software (Free Download) | PowerPanel® Busines |
Dimensions:
| Physical Dimensions – (WxHxD) (cm) | 48.51 x 60.71 x 77.47 (cm) |
| Physical Dimensions – (WxHxD) (in) | 19.1 x 23.9 x 30.5 (in) |
| Physical Dimensions – (WxHxD) (mm) | 485 x 607 x 775 (mm) |
| Physical Weight (kg) | 60.69 |
| Physical Weight (lb) | 133.8 |
