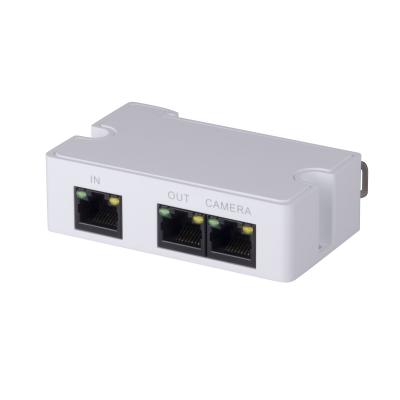

Dahua - PFT1300 - 3-Port PoE Extender with 2-Port PoE Out and 1-Port PoE In
Part number:
PFT1300
Price:
3-Port PoE Extender with 2-Port PoE Out and 1-Port PoE In
Features:
- Support passive PoE cascade power supply and Ethernet data exchange
- Support IEEE 802.3af/at standard power supply IP Camera
- Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption ≤25W), max transmission distance 300m
- 1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
- Installation mode: junction box internal mounting, DIN rail mounting
| Technical Specifications | |
| Model | PFT1300 |
| Ethernet port | 1*10/100 Base-T PoE power receiving port 1*10/100 Base-T PoE power supply port, supply power for the next extender 1*10/100 Base-T PoE power supply port, supply power for IPC |
| Transmission Distance | Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, IPC power consumption <=8W), transmission distance is 300m |
| Power Consumption | <=3W |
| Application Humidity | 10%－90% |
| High&Low temperature | ﹣30℃～65℃ |
| Weight | 57g |
| Dimension(W × D×H) | 79mm× 52mm× 23mm |
