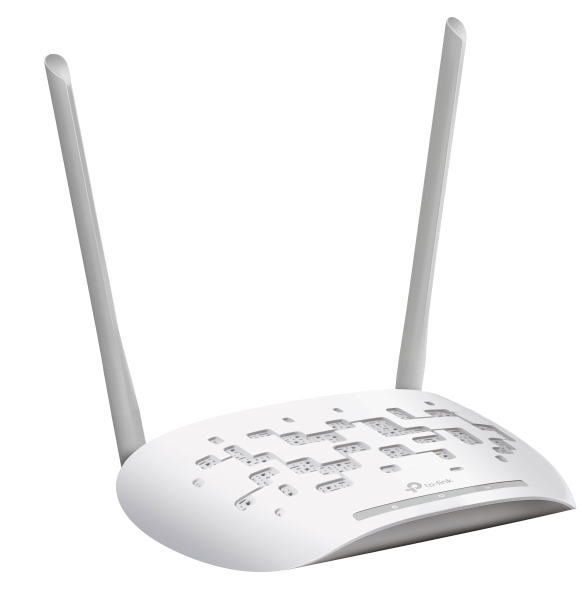

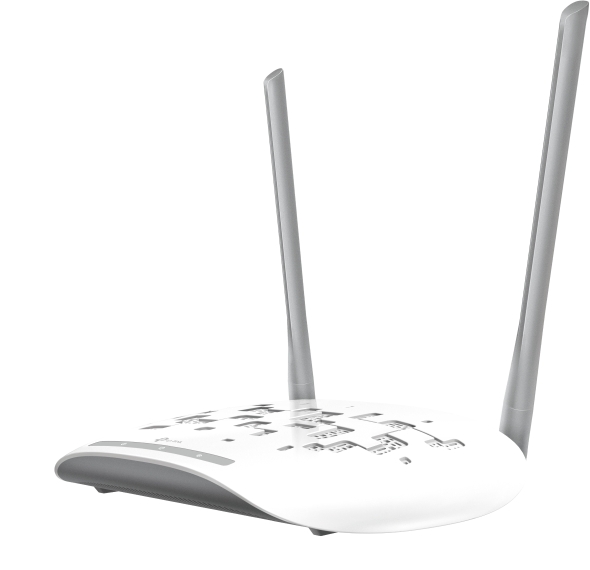

TP-Link - TL-WA801N - 300 MBPS WL AND ACCESS POINT WIRELESS
Part number:
TL-WA801N
Price:
300Mbps Wireless and Access Point
Features:
- 300 Mbps wireless speed ideal for smooth HD video, voice streaming, and online gaming
- Supports multiple operation modes: Access Point, Multi-SSID, Client, and Range Extender modes
- Protects your home network with WPA2 encryption and makes quick connection with the push of a button
- Up to 30 meters (100 feet) of flexible deployment with included Passive Power over Ethernet Injector
| Technical Specification | |

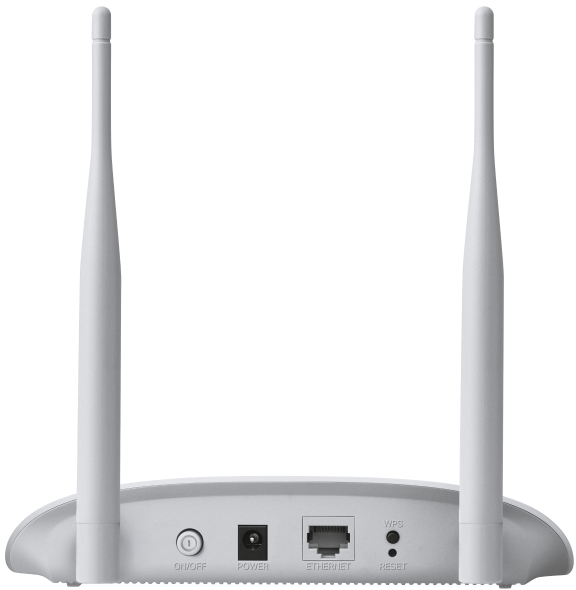

| Interface | 1× 10/100 M Ethernet Port(RJ45) |
| Support Passive PoE | |
| Button | Power On/Off Button, WPS Button, Reset Button |
| External Power Supply | 9VDC / 0.6A |
| Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| Dimensions ( W x D x H ) | 7.1 × 5.1 × 1.4 in |
| (182 × 130 × 36 mm) | |
| Antenna Type | 2 Fixed Omni-Directional Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4 GHz |
| Signal Rate | 300 Mbps at 2.4 GHz |
| Reception Sensitivity | 11g 6Mbps: -90dBm |
| 11g 54Mbps: -77dBm | |
| 11n HT20 MC7: -73dBm | |
| 11n HT40 MC7: -70dBm | |
| Transmit Power | < 20dBm |
| Wireless Modes | AP Mode |
| Multi-SSID Mode | |
| Client Mode | |
| Range Extender Mode | |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Short GI, AP |
| Isolation, Wireless Statistics, Throughput Monitor | |
| Wireless Security | WEP, WPA/WPA2, WPA/WPA2-PSK encryptions |
| Quality of Service | WMM |
| Management | SNMP |
| Advanced Functions | Up to 30 meters Passive PoE is supported |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | Wireless Access Point TL-WA801N |
| Power Adapter | |
| Passive PoE Power Injector | |
| RJ45 Ethernet Cable | |
| Quick Installation Guide | |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F) |
| Storage Temperature: -40°C~70°C (-40°F ~158°F) | |
| Operating Humidity: 10%~90% RH | |
| Storage Humidity: 5%~90% RH | |
Name
Description
Size
Downloads
File
Quick Installation Guide
0.3mb
File
Datasheet
1.1mb
