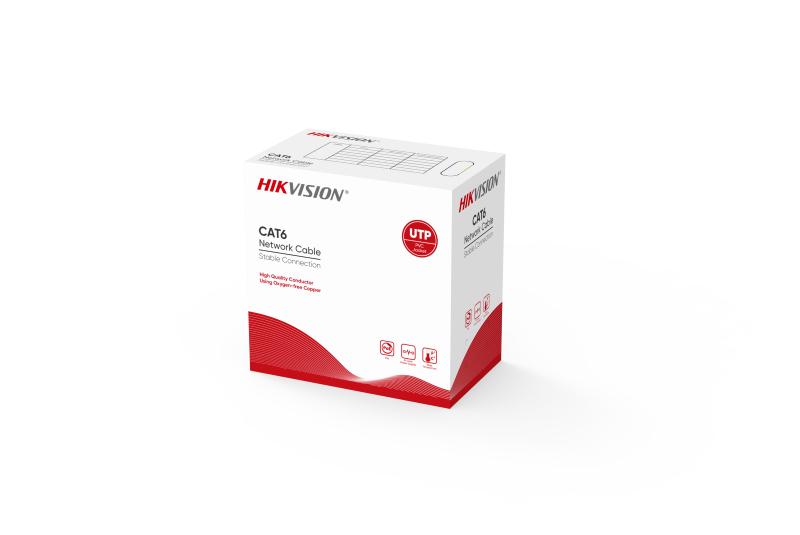

Hikvision - DS-1LN6-UE-W - 305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)
Part number:
DS-1LN6-UE-W
Price:
305 m CAT6 UTP Network Cable (Solid Copper, 0.53 mm, CM)
Features:
- Full diameter 305 m CAT6 network cable
- Core diameter: 0.53mm
- Excellent transmission performance using solid copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance.
| Specification | ||
| Model | DS-1LN6-UE-W | |
| Category | Cat.6 | |
| Reference standard | ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0, RCM | |
| Fire resistance | CPR Eca,UL CM | |
| Conductor | Material | Solid-Bare Copper (99.95%) |
| Diameter | 0.530± 0.005 mm 24AWG | |
| Insulation | Material | HDPE |
| Diameter | 0.95 ± 0.05mm | |
| Sheath | Thickness | 0.55 ± 0.05 mm |
| Diameter | 5.8 ± 0.50 mm | |
| Material | PVC | |
| Color | White,Blue | |
| Rip-cord | Yes | |
| Separator | Yes | |
| Sheath physical properties | Before aging | Tensile strength ≥ 10.0 Mpa Elongation ≥ 125% |
| Aging period | 100°C × 24h × 10d | |
| After aging | Tensile strength ≥ 8.0 Mpa Elongation ≥ 100% | |
| Cold bend | -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks | |
| Electrical Characteristics (20°C) | 1.0-250.0 MHz impedance | 100 ± 15 Ω |
| 1.0-250.0 MHz delay skew | ≤ 45 ns/100 m | |
| DC resistance | ≤ 9.38 Ω/100 m | |
| DC conductor resistance unbalance | ≤ 4.0% | |
| Package dimension | 305m: 400 mm (W) × 400 mm (H) × 240 mm (D) | |
| Cable length | 305 ± 1.5 m | |
| Ambient temperature | -20°C to 75°C (-4°F to 167°F) | |
| Operating voltage | 57 V | |
