Dahua - DH-TAM1GT1GT-30 - 30W PoE+ Midspan
Part number:
DH-TAM1GT1GT-30
Price:
The DH-TAM1GT1GT-30 PoE+ Midspan is designed to work in extreme temperature environments and in applications that experience lightning. The midspan offers a single PoE+ (802.3at) port with an internal power supply in a compact housing. The midspan carries both data and power along an Ethernet cable for easy installation of IP cameras, wireless access points, or a VOIP phone.
Features:
- Supports IEEE802.3af and IEEE802.3at Standards
- Conforms to IEEE802.3, IEEE802.3u and IEEE802.3ab Standards
- Wide Temperature Range for Industrial Applications
| Technical Specification | |
| Ethernet Ports | One (1) 10/100/1000 Base-T One (1) 10/100/1000 Base-T (PoE Power Supply |
| PoE Features | • Protocol: IEEE802.3af, IEEE802.3at • Power Output: ≤ 30 W |

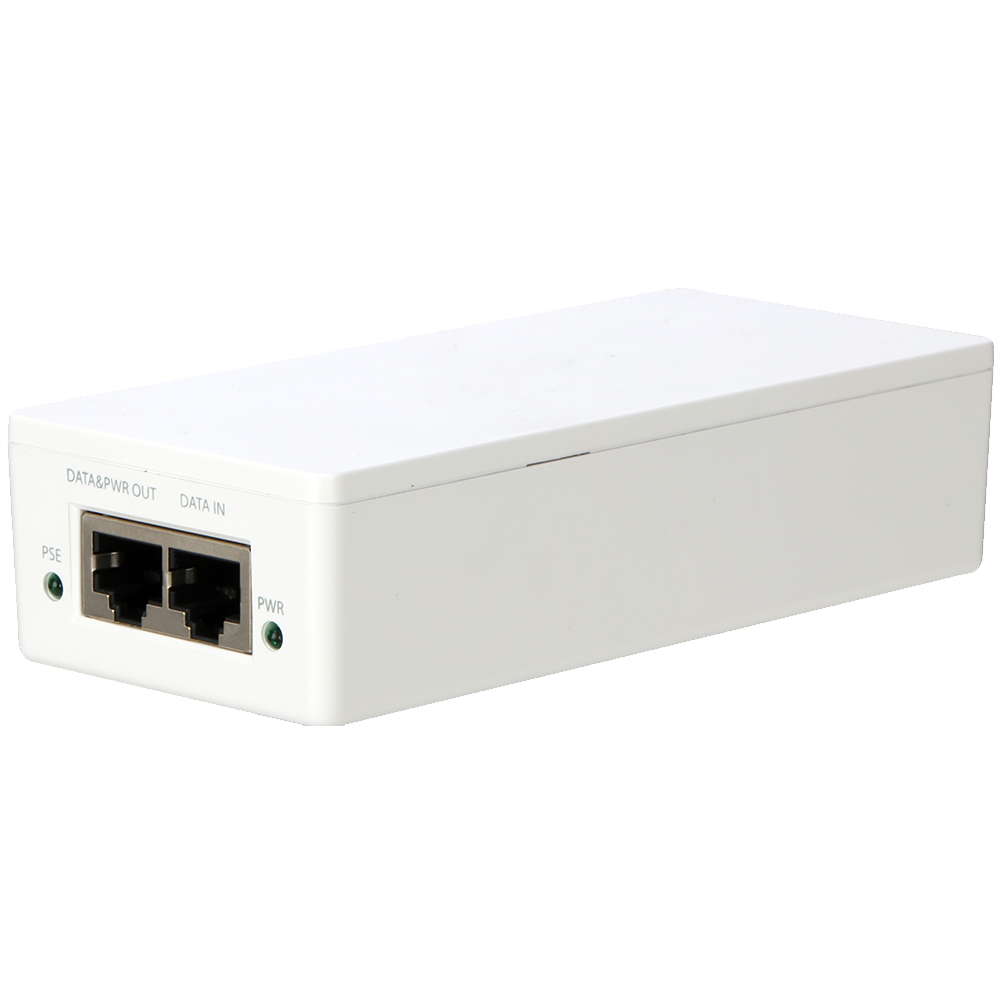

| LED Indicators | PSE: Green indicates the midspan is delivering power PWR: Green indicates the midspan is working properly |
| Power Requirements | 100 VAC to 240 VAC, 50/60 Hz |
| Working Temperature | –10° C to 55° C (14° F to 131° F) |
| Application Humidity | 10% to 90% |
| Dimensions (W x D x H) | 132.30 mm x 60.0 mm x 33.0 mm (5.21 in. x 2.36 in. x 1.30 in.) |
| Weight | 0.25 kg (0.55 lb) |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
