Cyber Power - CRA12003 - 3U 19" Fan Panel, 3x 208/240Vac Cooling fans; 240 CFM, 2 Year Warranty
Part number:
CRA12003
Price:

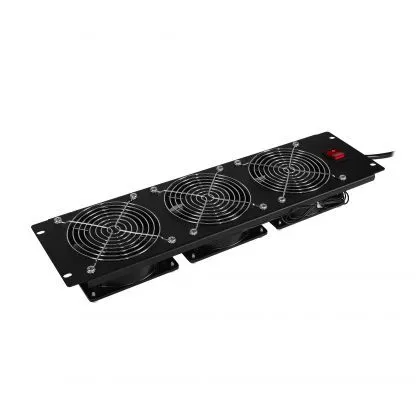

The CRA12003 Carbon Rack Fan improves ventilation in rack enclosures. The fan panel has (3) 208 Vac high-performance fans and a 6.5 ft power cord with IEC-320 C14 input plug. Mounting hardware is included. The CRA12003 is covered by a 2-year limited warranty. Compatible with CyberPower Racks CR42U11001, CR24U11001, CR45U40001, CR25U40001, CR12U51001, CR9U61001, and CR6U61001.
Features:
- Fan Type: Roof mounted
- Number of Fans: 3
- Operating Voltage: 208 Vac
- Air Flow: 240 (CFM)
- Warranty: 2-Year Limited
| General | |
| Type | 208V 3U Fan Panel |
| Input | |
| Nominal Input Voltage | 208/240Vac |
| Input Frequency | 50/60Hz |
| Plug Type | IEC C14 |
| Power Cord Length (ft) | 6.5 |
| Power Cord Length (m) | 2 |
| Power Switch | Lighted On/Off |
| Performance | |
| Air Flow (CFM) | 240 |
| Physical | |
| Installation | Hardware Included |
| Color | Black |
| Number of Fans | 3 |
| Audible Noise at 1.5m | 48 dBA |
| Unit Dimensions – WxHxD (in) | 18.87 x 5.22 x 1.57 |
| Unit Dimensions – WxHxD (mm) | 479 x 133 x 40 |
| Weight (lbs) | 5.5 |
| Weight (kg) | 2.5 |
| Shipping Dimensions – WxHxL (in) | 2.4 x 5.7 x 19.5 |
| Shipping Dimensions – WxHxL (mm) | 60 x 145 x 495 |
| Shipping Weight (lbs) | 5.9 |
| Shipping Weight (kg) | 2.7 |
| Certifications | |
| Safety | CE |
| Approvals | RoHS |
| Warranty | |
| Product Warranty | 2 Years Limited |
