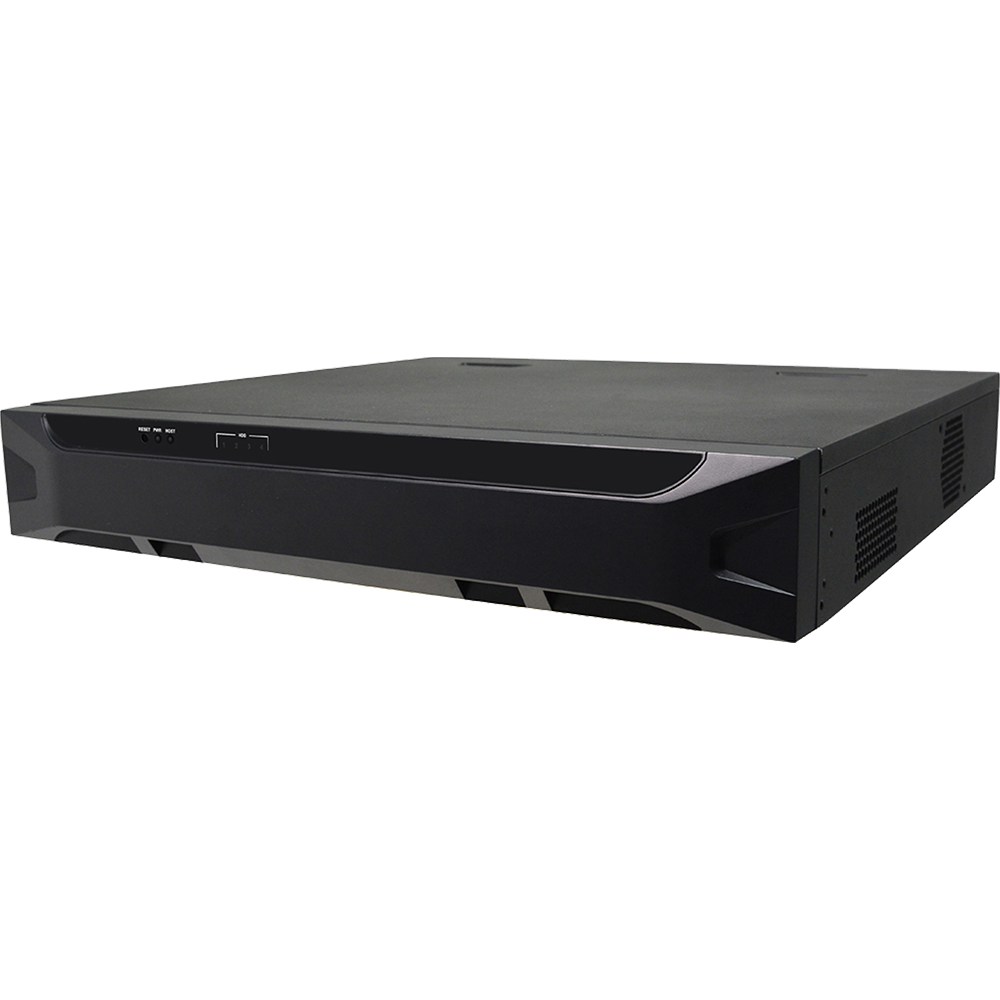

Dahua - DH-ESS1504C - 4 HDDs eSATA Storage
Part number:
DH-ESS1504C
Price:
1 port eSATA, up to 3Gbps, 1 port, USB 3.0, 4 SATA ports, Read >64MB/s, Write >64MB/s, Max support Internal 4 SATA HDD up to 32TB
Features:
- 1.5U Standard 19-inch Rack Case
- Four (4) SATA HDD Bays, up to 32 TB Total Storage
- eSATA Connection
- eSATA Port Transmission Speed up to 3 Gbps
- Powerful Read/Write Performance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Interface¹ | |
| eSATA | One (1) Port, up to 3 Gbps |
| Capacity | |
| HDD | Four (4) SATA III Ports |
| Storage | up to 8 TB Capacity for each HDD |
| Backup | up to 2 TB Capacity for each HDD |
| Performance | |
| Read | > 64 MB/s |
| Write | > 64 MB/s |
| Electrical/Environmental | |
| Power Supply | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | 6.8 W (without HDD) |
| Fan | One (1) |
| Operating Conditions | 0° C to +40° C (32° F to 104° F), 86 kpa to 106 kpa, 10% to 90% RH |
| Storage Conditions | –20° C to +70° C (–4° F to 158° F), 5% to 90% RH |
| Installation | Standard 19-in. rack installation |
| Certifications | |
| Safety | EN 60950-1:2006+A11:2009+A1:2010+ A12:2011 + A2:2013 IEC 60950-1:2005 (Second Edition) + A1:2009 + A2:2013 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B ANSI C63.4 2009 ICES-003 Issue 5 CISPR Pub. 22 |
