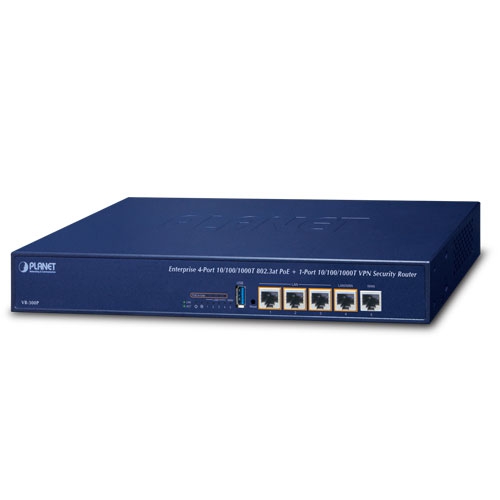

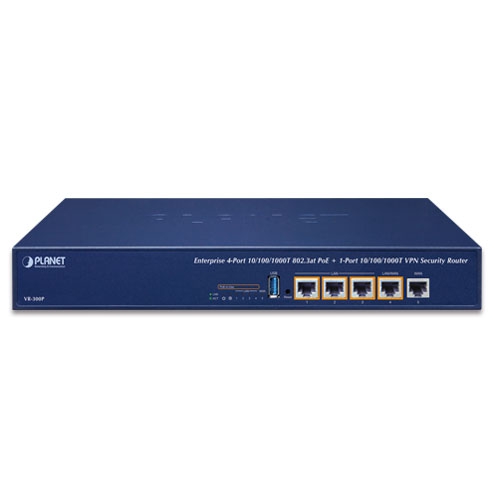

Planet - VR-300P - 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T VPN Security Router

Powerful VPN Security Solution
The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the VR-300P VPN PoE Security Router, an all-in-one appliance that carries several main categories across your network security deployments: Cyber Security, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and MAC/IP Filtering), AP Controller, Captive Portal, RADIUS and easy management  (Setup  Wizard,  DHCP Server  and  Dashboard).  Furthermore,  its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.

Centralized Remote Control of Managed APs
The VR-300P provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

Ideal High-Availability VPN Security Router Solution for SMBs
The VR-300P provides complete data security and privacy for accessing and exchanging most sensitive data, built-in IPSec VPN function with DES/3DES/ AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300P makes the connection secure, more flexible, and more capable.

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300P is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR- 300P offers an easy-to-use, platform independent management and configuration facility. The VR-300P supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Improving Network Efficiency
It is applicable to the small-scale sector (from 60 to 100 people), using a 13-inch desktop design, with five Gigabit ports (WAN/LAN). It provides higher performance with all Gigabit Ethernet interfaces which offer faster speeds for your network applications. The Gigabit user-defined interfaces flexibly fulfill the network requirement nowadays, and the High-Availability and Dual-WAN interfaces enable the VR-300P to support outbound load balancing and WAN fail-over features.

Highlights

• Dual-WAN failover and Dual-WAN load balancing
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful Packet Inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• IPv6, SNMP, PLANET DDNS and Universal Network Management System
• Compliant with the IEEE 802.3at PoE+ with PD alive check/schedule management

Hardware

• 5 10/100/1000BASE-T RJ45 ports with 4-port IEEE 802.3at PoE+ injector function
• 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
• 1 USB 3.0 port for system configuration backup and restore
• Reset button and fanless design
• Desktop installation or rack mounting

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
• Backward compatible with IEEE 802.3af Power over Ethernet
• Up to 4 ports of IEEE 802.3af / 802.3at devices powered
• Supports PoE power up to 36 watts for each PoE port
• Auto detects powered device (PD)
• Circuit protection prevents power interference between ports
• PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD classification detection
  • PD alive check
  • PoE schedule

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• Max. Connection Tunnel Entries: 60 VPN tunnels,
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

• Outbound load balancing
• Failover for dual-WAN
• High availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

• Setup wizard
• Dashboard for real-time system overview
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET Smart Discovery utility/UNI-NMS supported
