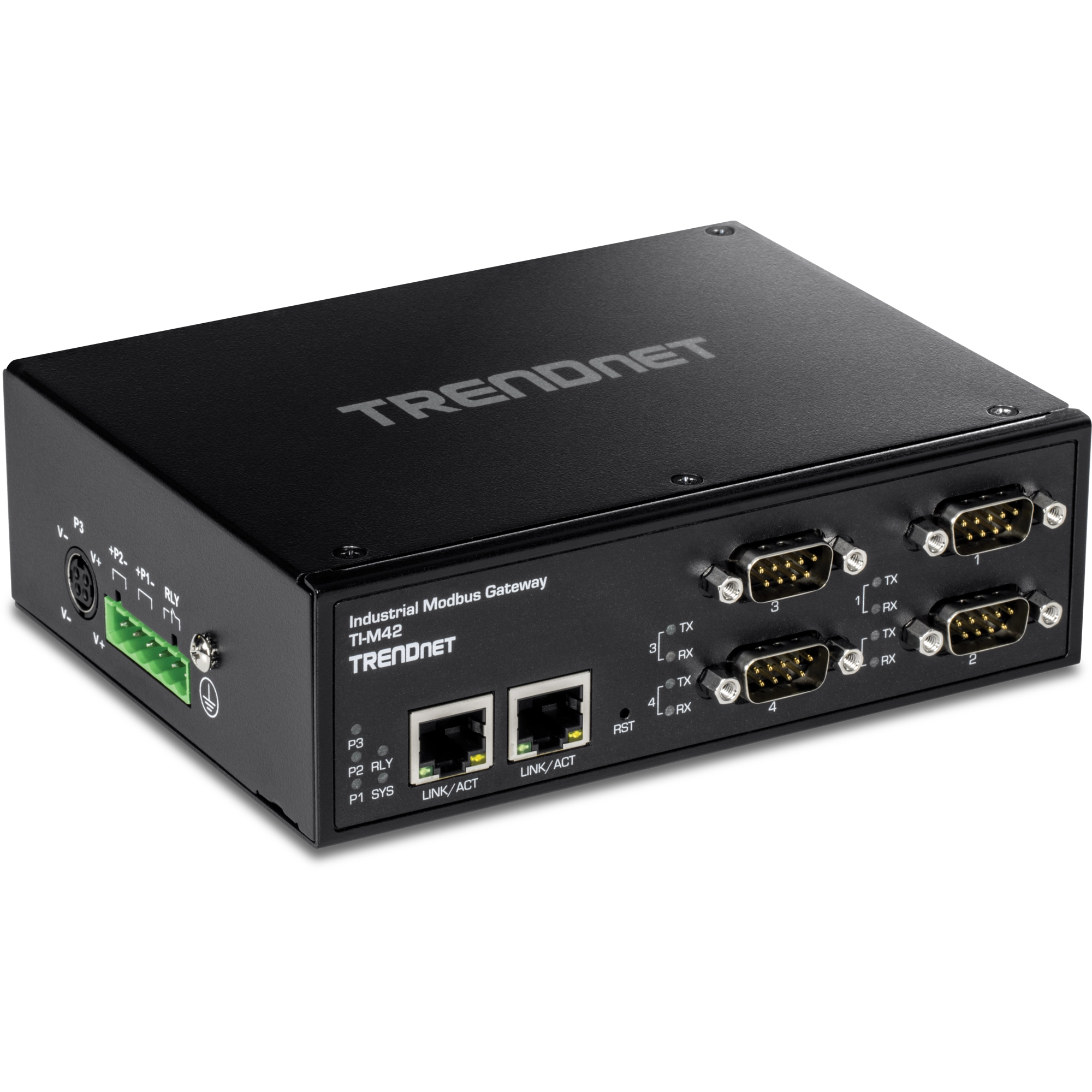

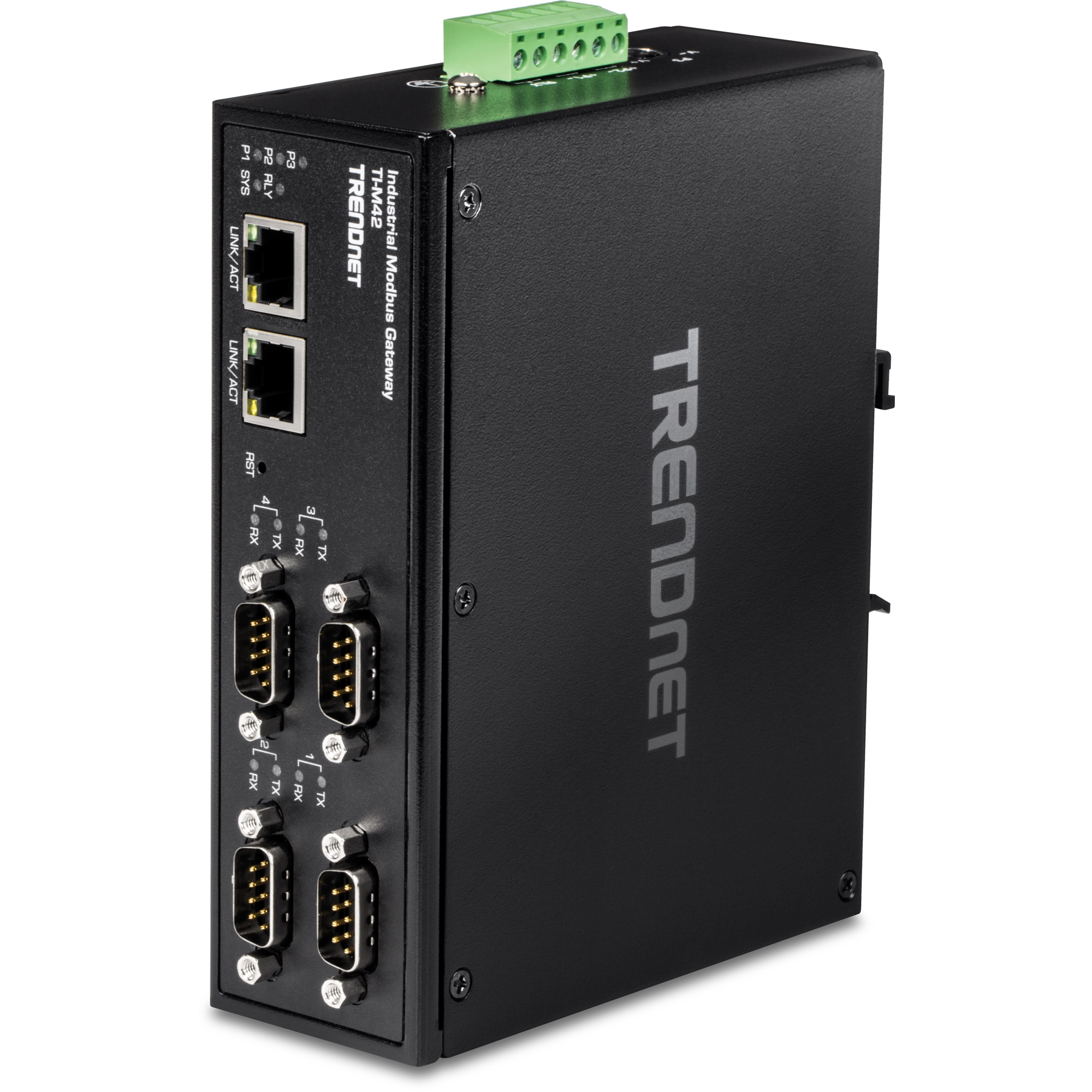

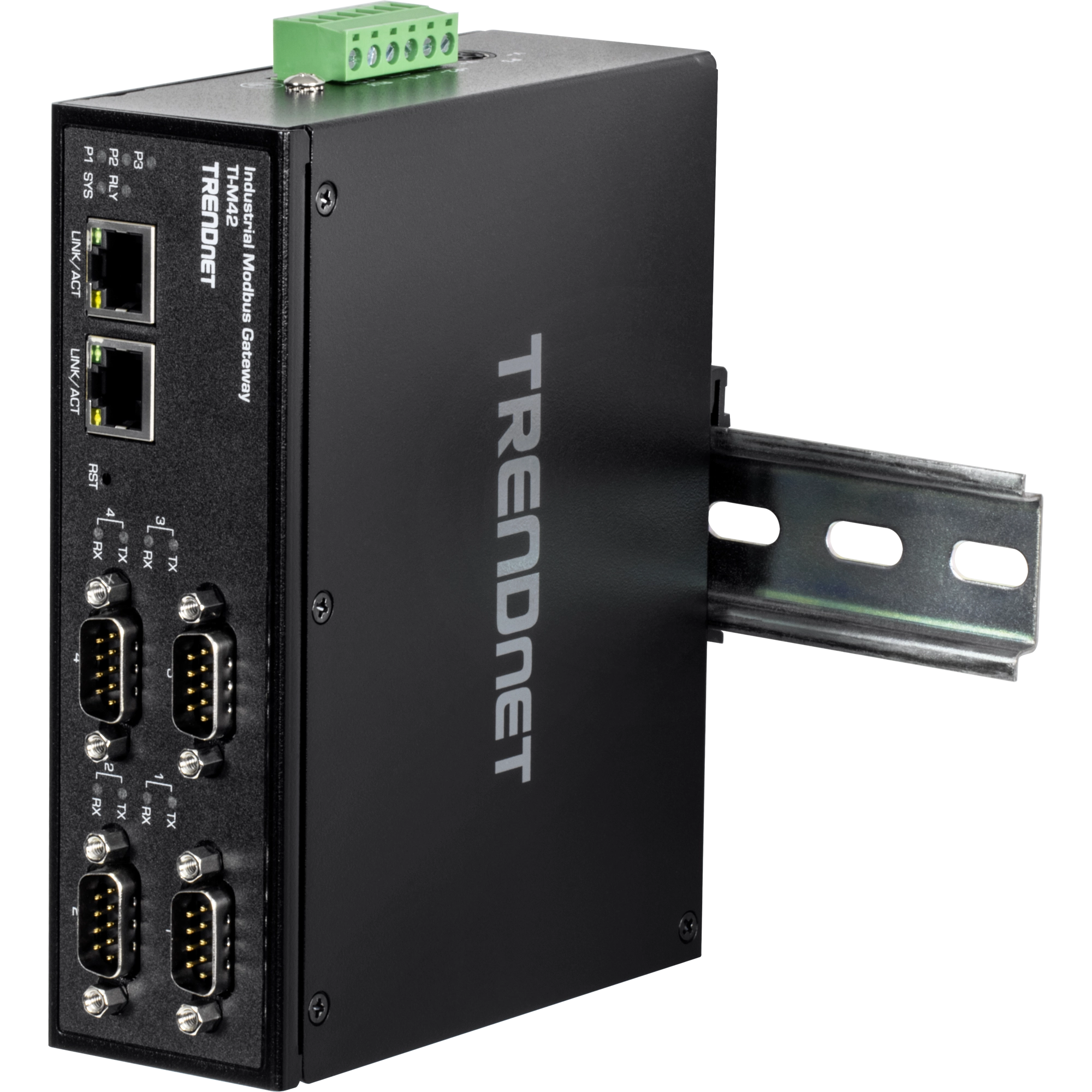

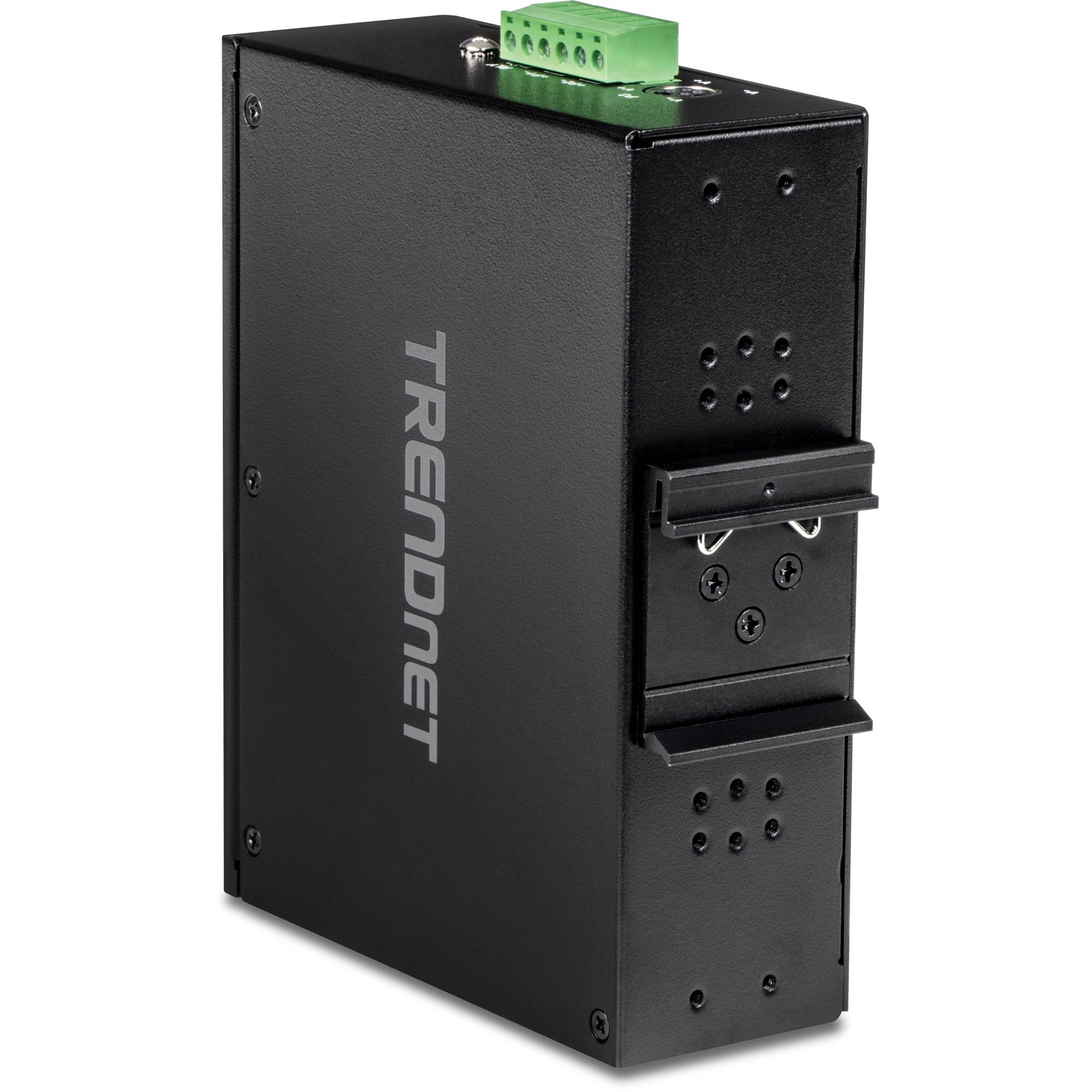

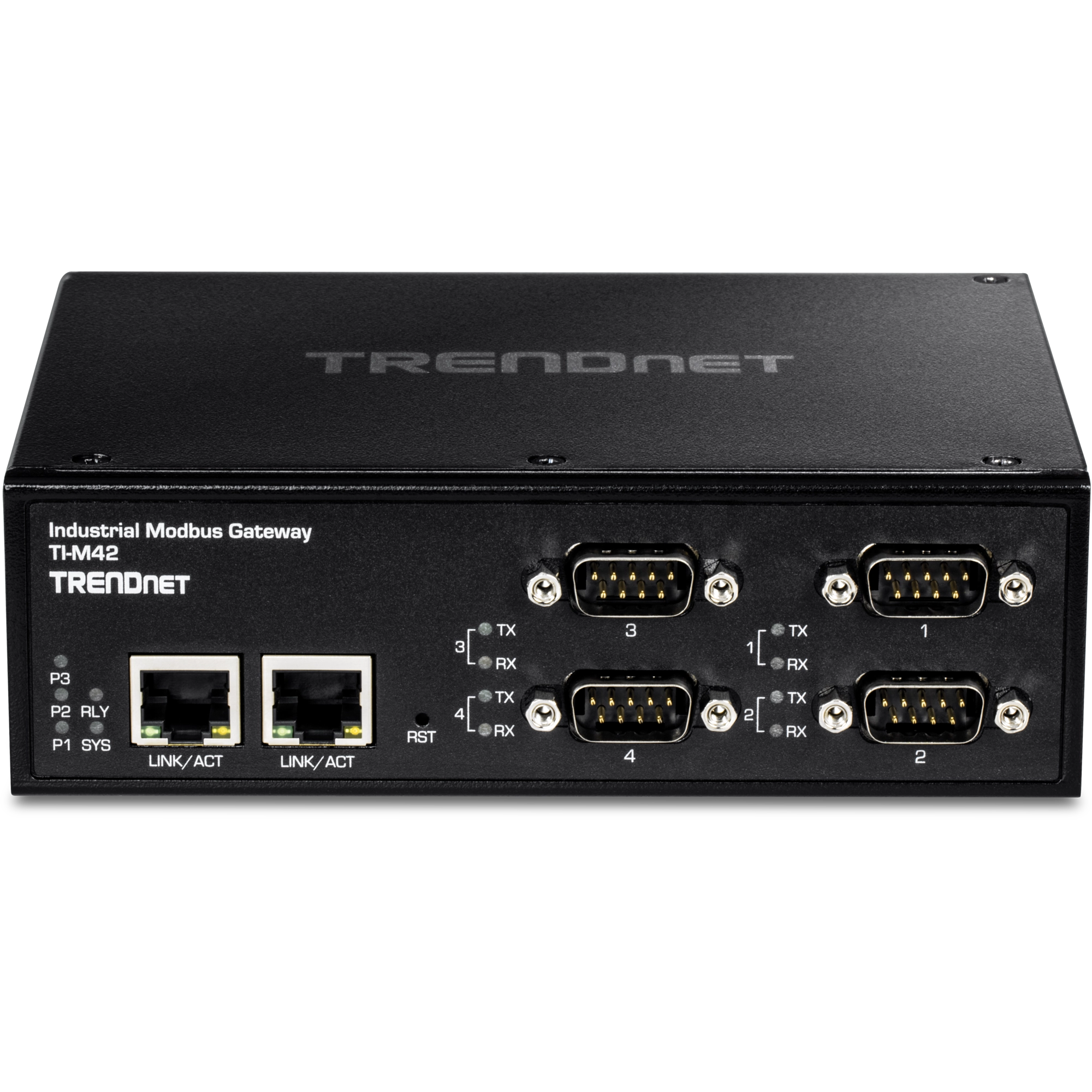

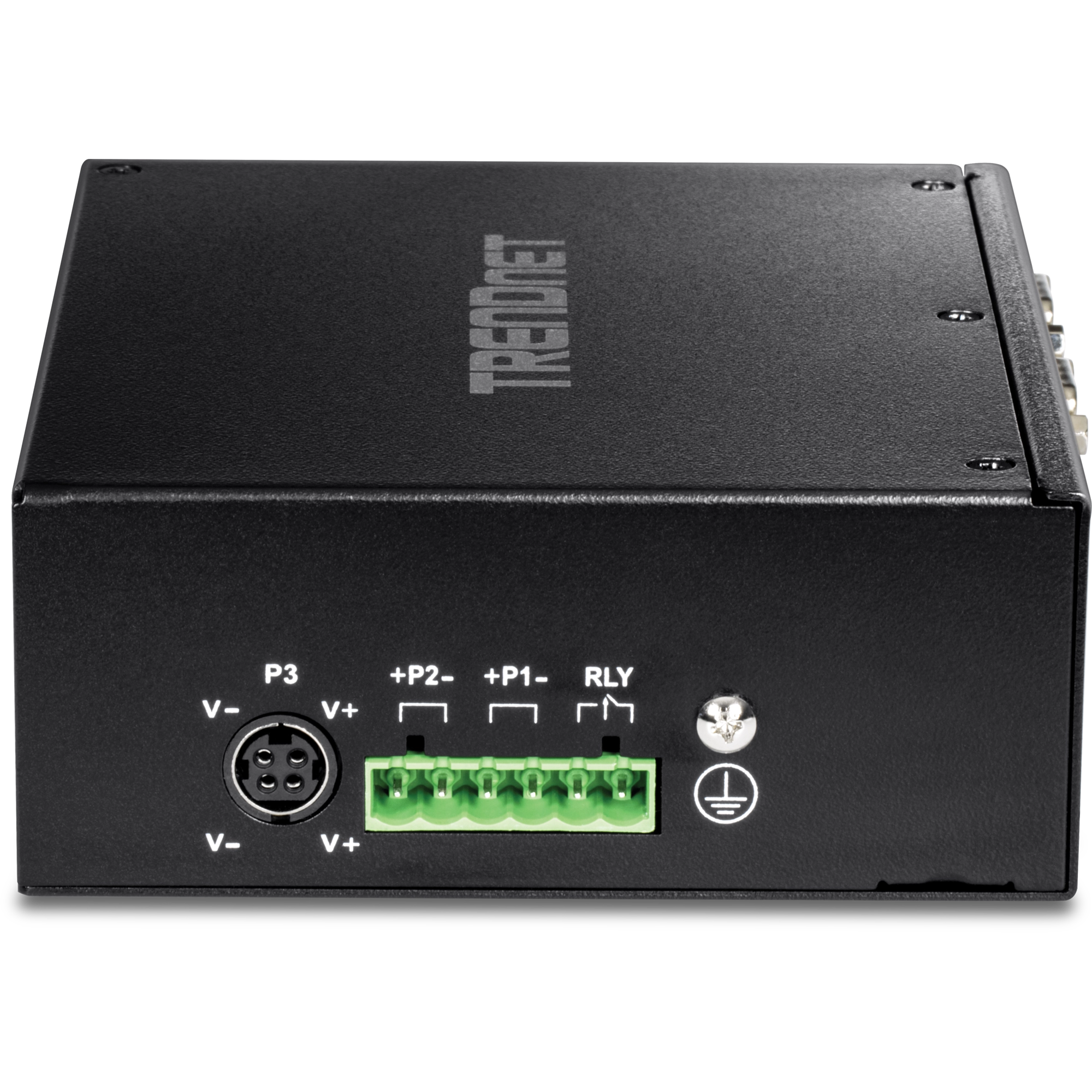

TRENDNET - TI-M42 - 4-Port Industrial Modbus Gateway

TRENDnet’s Industrial Modbus Gateway, model TI-M42, provides four port serial connections, and two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling . This industrial gateway allows users to connect four modbus serial devices to a network.

Network

Two fast Ethernet ports at distances up to 100m (328 ft.) using Cat5e cabling.

Serial Connector

Connect up to four RS-232/RS-422/RS-485 serial devices to the network.

Industrial Design

Designed with a rugged IP30 rated housing, resistance to a high degree of vibration and shock, protection against ESD/EMI/surge, and operates within a wide operation temperature range -40° - 75° C (-40° – 167° F).

Features:

• Connects RS-232/RS-422/RS-485 serial devices to a network
• Supports up to 32 RS-422/RS-485 TCP serial devices per port, up to 128 slave devices per unit
• Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol
• Configure via web management or telnet
• Auto-MDI/MDIX, RJ45 port with 10/100Mbps
• Serial port baud rate from 50bps to 921.6Kbps
• IP30 rated metal housing
• NDAA / TAA compliant
• Lifetime Warranty*
