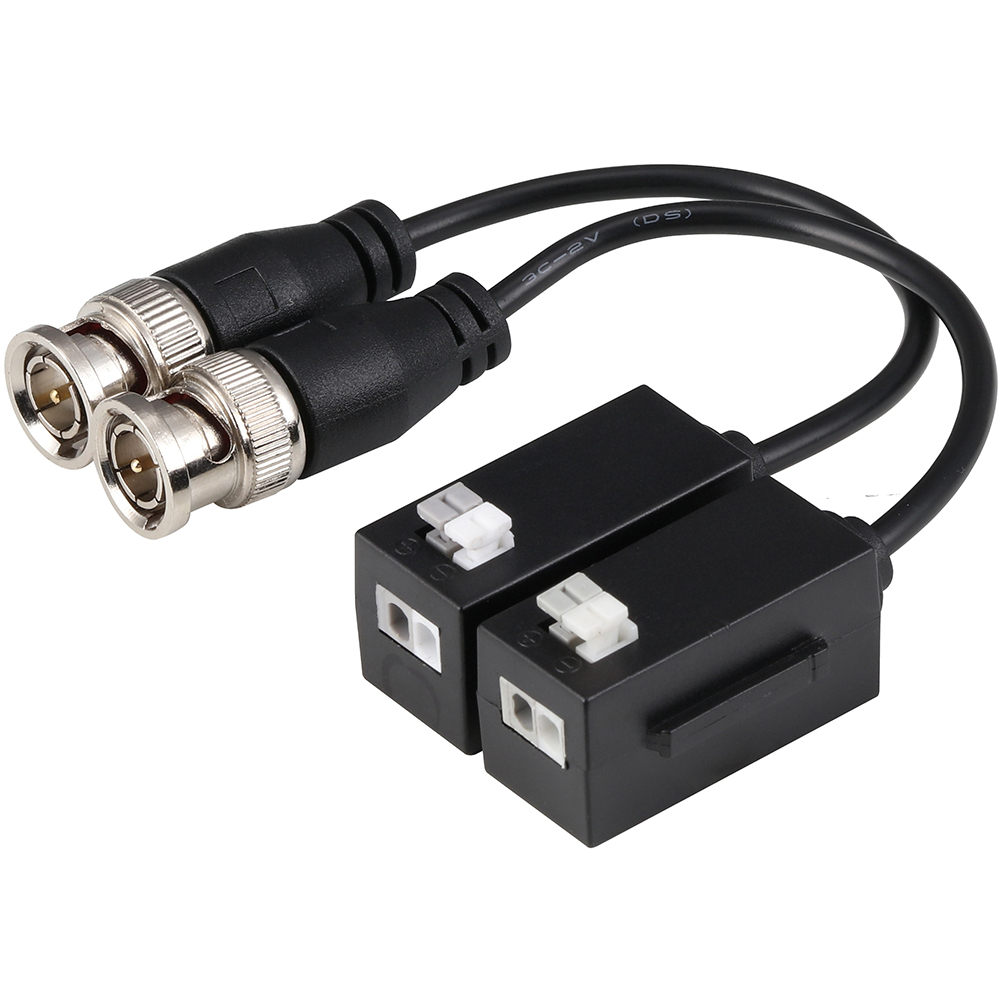

Dahua - DH-PFM800-4K - 4K Passive HDCVI Balun
Part number:
DH-PFM800-4K
Price:
4K Passive HDCVI Balun
Features:
- One (1) Channel Balun
- Real-time Transmission over UTP CAT5E/6 Cable
- Compatible with HDCVI, TVI, AHD, and CVBS Video Formats
- Transmission Distance at 4K: 200 m (656 ft)
- External Power Supply not Required
| Technical Specification | |
| Model | DH-PFM800-4K |
| Video | |
| Transmission Signal | One (1) Channe |
| Network cable Type | UTP CAT5E/6 |
| Transmission Properties | HDCVI, TVI, AHD: 720p: 400 m (1312.34 ft) 1080p: 250 m (820.21 ft) 4 MP, 6 MP, 8 MP: 200 m (656.17 ft) |
| Video Transmission Properties | |
| Coaxial Video Connector | BNC-M |
| Connection Way | RJ45 |
| Compatible Format | HDCVI/TVI/AHD/CVBS |
| Resolution | 720P/1080P/4MP/5MP/4K |
| Protection | |
| ESD | 1a contact discharge electricity level 3 |
| 1b air discharge electricity level 3 | |
| Per: IEC61000-4-2 | |
| UTP Cable Connector | 2KV(different-mode), 4KV(common-mode) |
| Per: IEC61000-4-5 | |
| Impedance | |
| BNC Male Impedance | 75 ohms |
| UTP Cable Impedance | 100 ohms |
| Physical Properties | |
| Weight | 40g (0.09lb) (1 pair) |
| Dimension(LxWxH) | 173.8mmx19.5mmx21mm (6.84”x0.77“x0.83”) |
| Shell | ABS |
| Color | Black |
| Environmental | |
| Operating Temperature | -30℃~+70℃(-22℉~+158℉) |
| Operating Humidity | <95% RH |
| Storage Temperature | -40℃~+80℃(-40℉~+176℉) |
