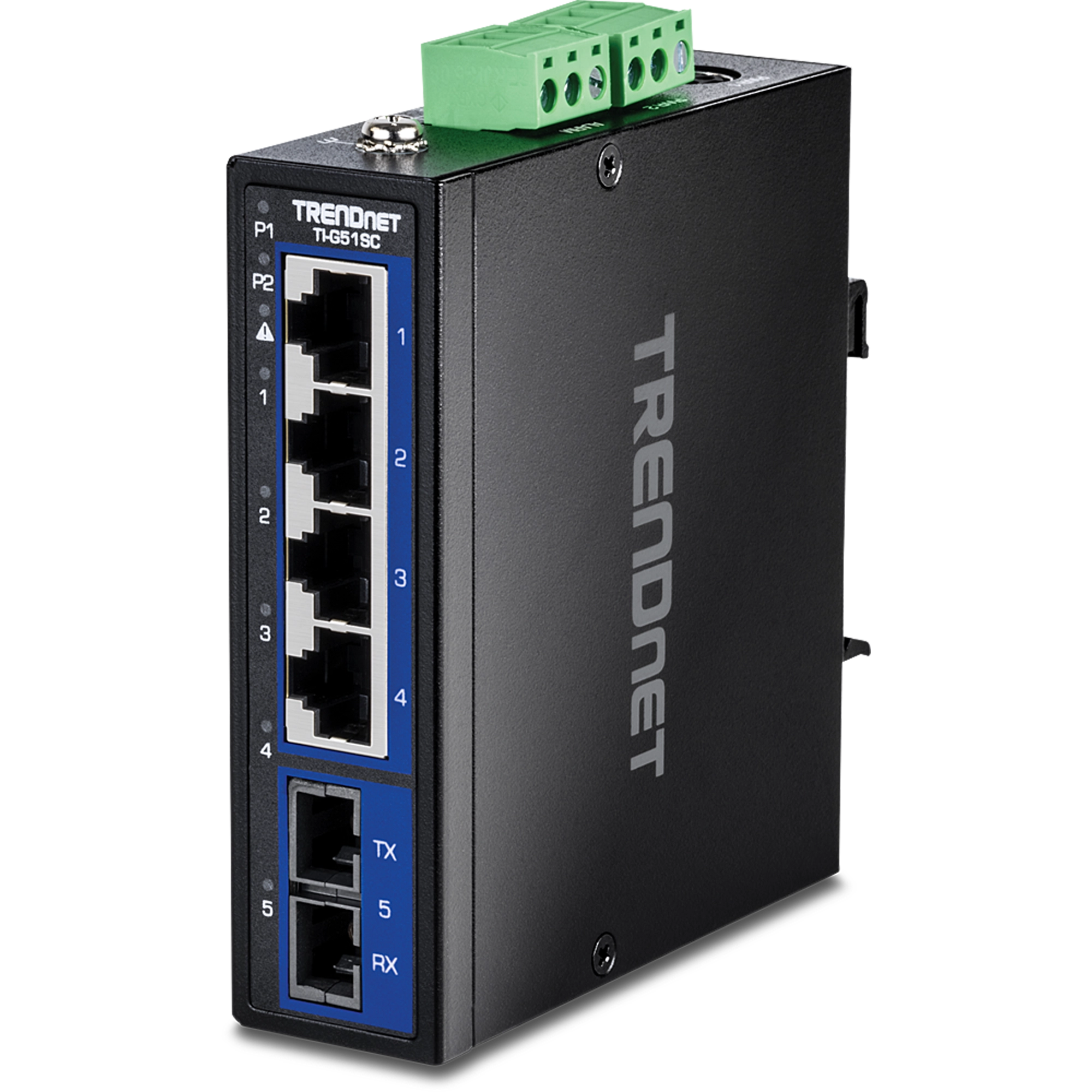

TRENDNET - TI-G51SC - 5-Port Hardened Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port
TRENDnet’s 5-Port Industrial Gigabit DIN-Rail Switch with Multi-Mode SC Port, model TI-G51SC, features a rugged IP30 rated metal enclosure and is designed to work in the harshest networking environments. This industrial switch with a fiber port is designed to withstand a high degree of vibration and shock, while operating in both high and low temperatures of industrial environments within -40° – 75° C (-40° – 167° F). Redundant power inputs with overload current protection on the industrial unmanaged switch minimizes network downtime. This hardened industrial switch features copper gigabit ports for high-speed device connections, and a gigabit multi-mode SC port for long-distance fiber networking applications up to 550 meters.
Gigabit Ports
This reliable industrial switch features high-performance gigabit RJ-45 ports for high-speed device connections.
SC Multi-Mode Fiber Port
The SC multi-mode fiber port supports long-distance fiber networking applications up to 550 meters.
Industrial Hardened Design
Equipped with a rugged IP30 rated housing, designed to withstand a high degree of vibration and shock, and operate within an extreme temperature range of -40° – 75° C (-40° – 167° F).
Features:
- 4 x Gigabit ports
- 1 x Gigabit Multi-Mode Fiber SC port
- Hardened IP30 rated metal switch
- Extreme -40° – 75° C (-40° – 167° F) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- 10Gbps switching capacity

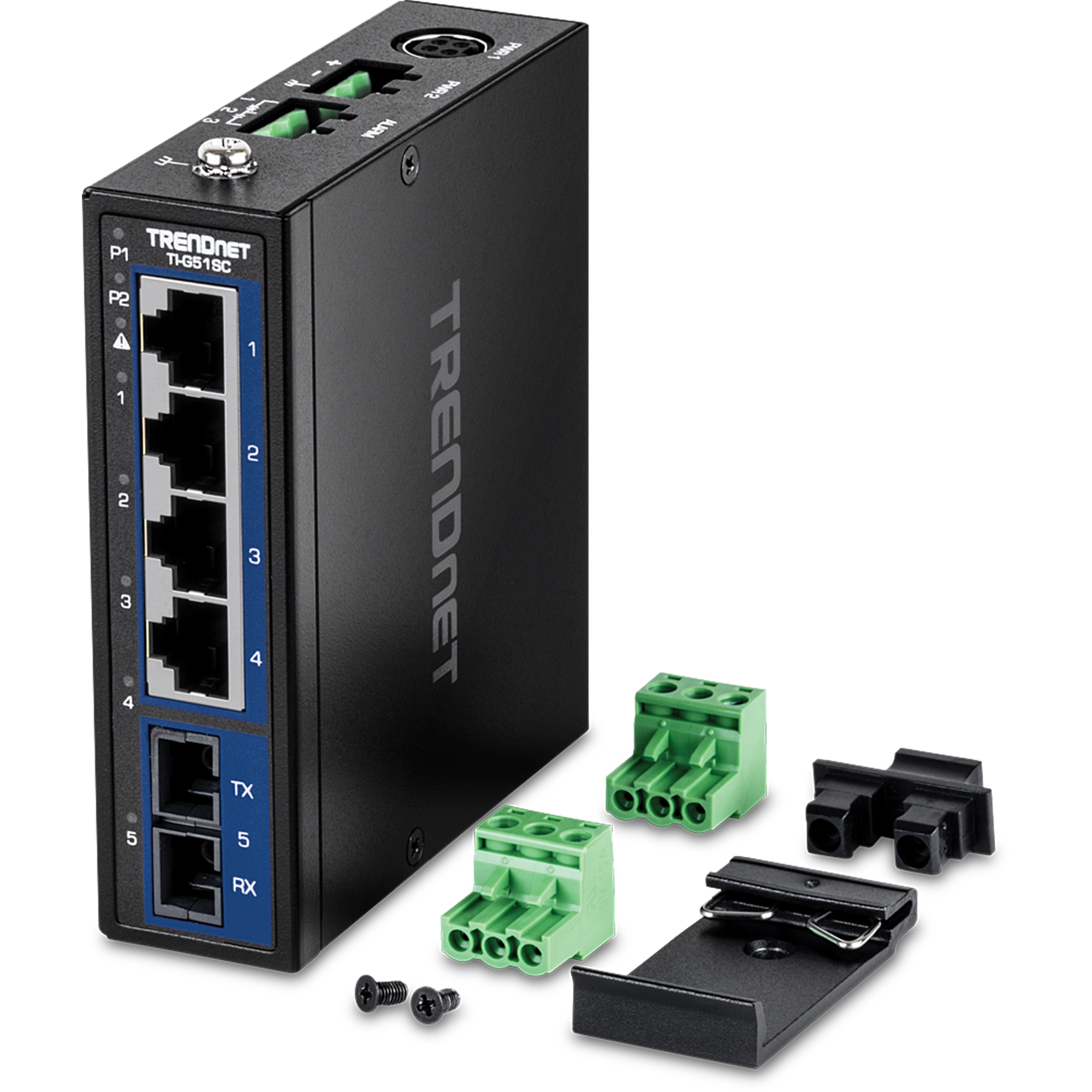

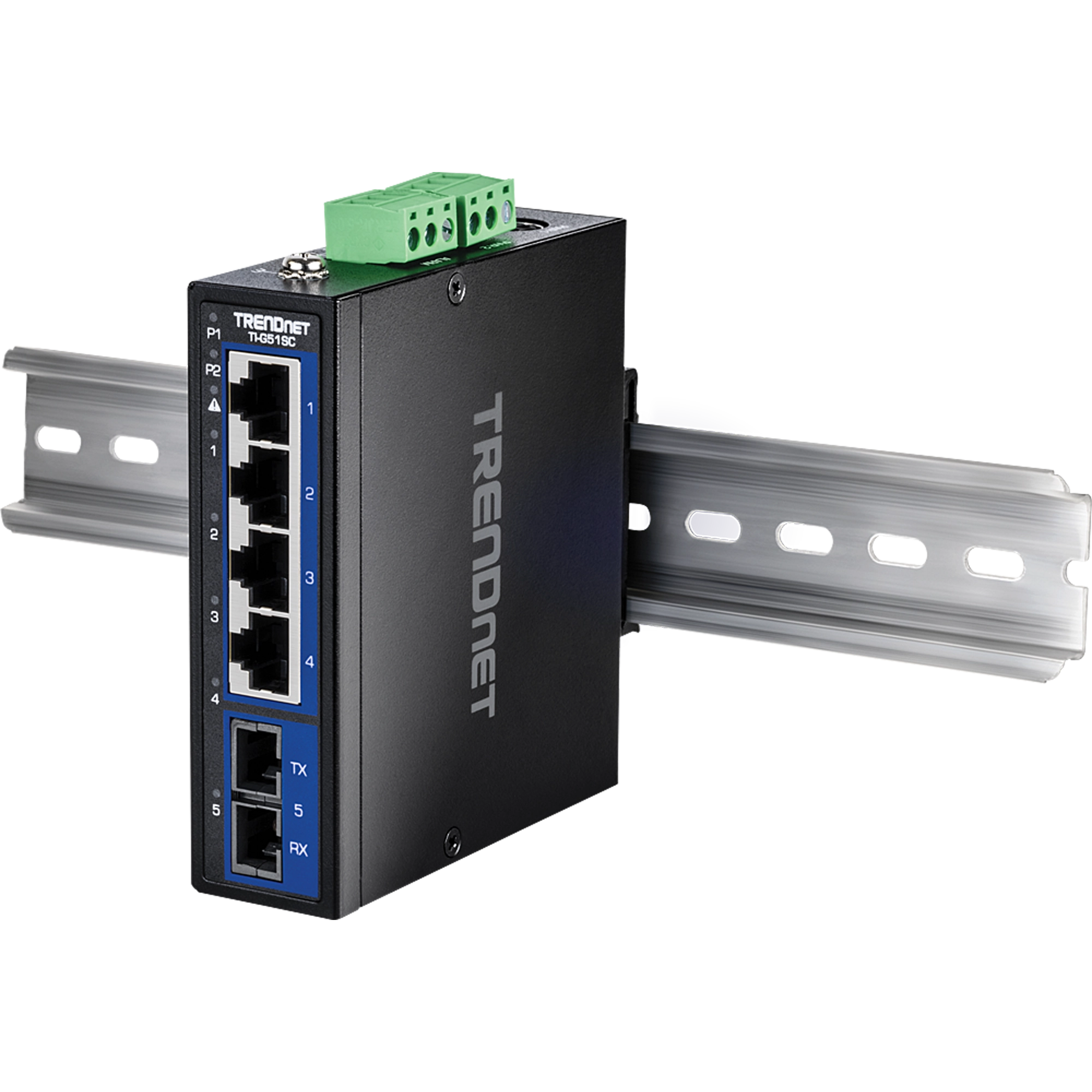

- Includes DIN-Rail and wall mounts
- Power supply sold separately (models: TI-M6024, TI-S15052, 48VDC3000)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3x | |
| IEEE 802.3z (1000Base-SX) | |
| IEEE 802.3ab | |

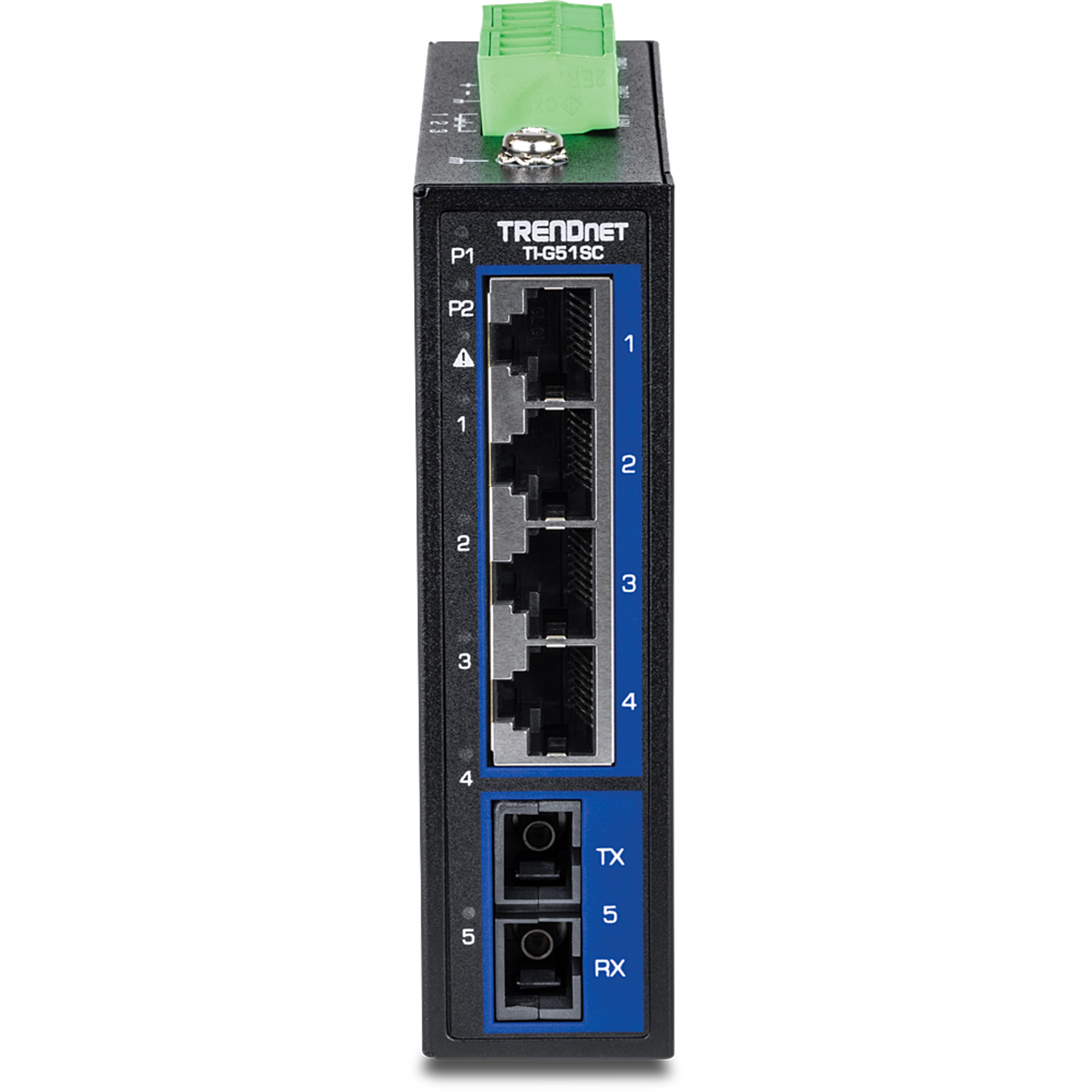

| Device Interface | 4 x Gigabit ports |
| 1 x SC multi-mode fiber port | |
| 2 x 3-pin removable terminal block | |
| LED indicators | |
| Optional power adapter input 48VDC3000 (sold separately) | |
| Data Transfer Rate | Ethernet: 10Mbps (half duplex), 20Mbps (full duplex) |
| Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex) | |
| Gigabit: 2Gbps (full duplex) | |
| Fiber: 2Gbps (full duplex) | |
| Performance | Data RAM Buffer: 48KB |
| Switching Fabric: 10Gbps | |
| MAC Address Table: 2K entries | |
| Jumbo Frame: 9KB | |
| Forwarding Rate: 7.44Mpps (64-byte packet size) | |
| Special Features | Hardened components rated for extreme temperatures |
| Dual power inputs | |
| Auto negotiation | |
| Auto store and forward architecture | |
| Automatic address learning and address aging | |
| ESD 6KV and Surge 2KV protection | |
| Power | Input: 9 - 60V DC |
| Compatible power supply: TI-M6024, TI-S15052 (sold separately) | |
| Max. consumption: 3.6W | |
| Power adapter 48VDC3000 (sold separately) | |

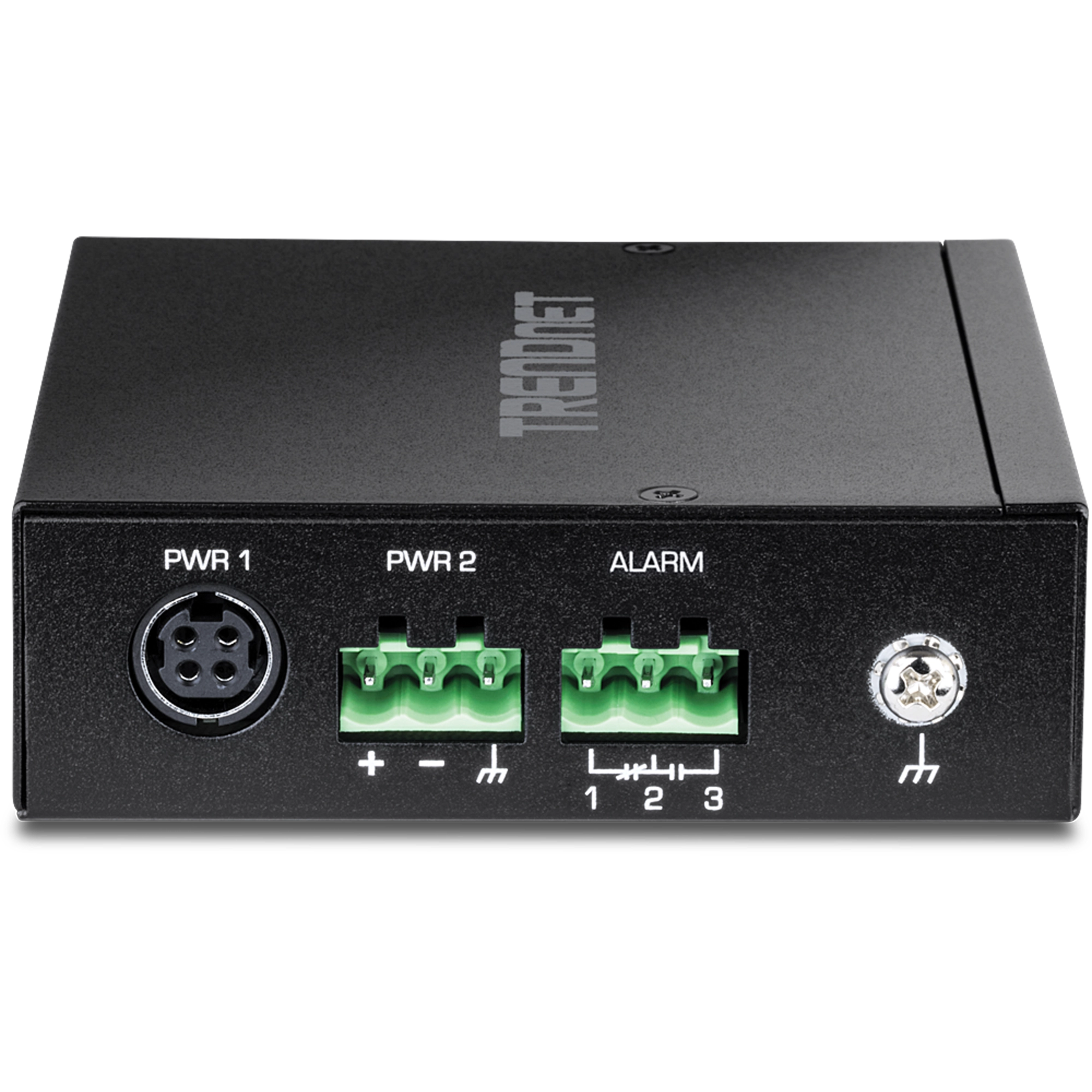

| Terminal Block | Redundant power inputs, alarm relay contact, 2 x 3 pin |
| Wire range: 0.34mm^2 to 2.5mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5Nm / 0.56 Nm | |
| Wire strip length: 7-8mm | |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1A, 24V DC |
| Short circuit mode when two power sources are connected | |
| Open circuit mode when only one power source is connected | |
| MTBF | 71,955 hours |
| Housing | IP30 metal case |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| 8KV ESD protection | |
| 2KV surge protection | |
| Operating Temperature | - 40° – 75° C (-40° – 167° F) |
| Operating Humidity | Max. 95% non-condensing |
| Dimensions | 99 x 90 x 28mm (3.89 x 3.54 x 1.10 in.) |
| Weight | 292g (0.64 lbs.) |
| Certifications | CE |
| FCC | |
| LVD | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| Warranty | Lifetime Warranty* |
