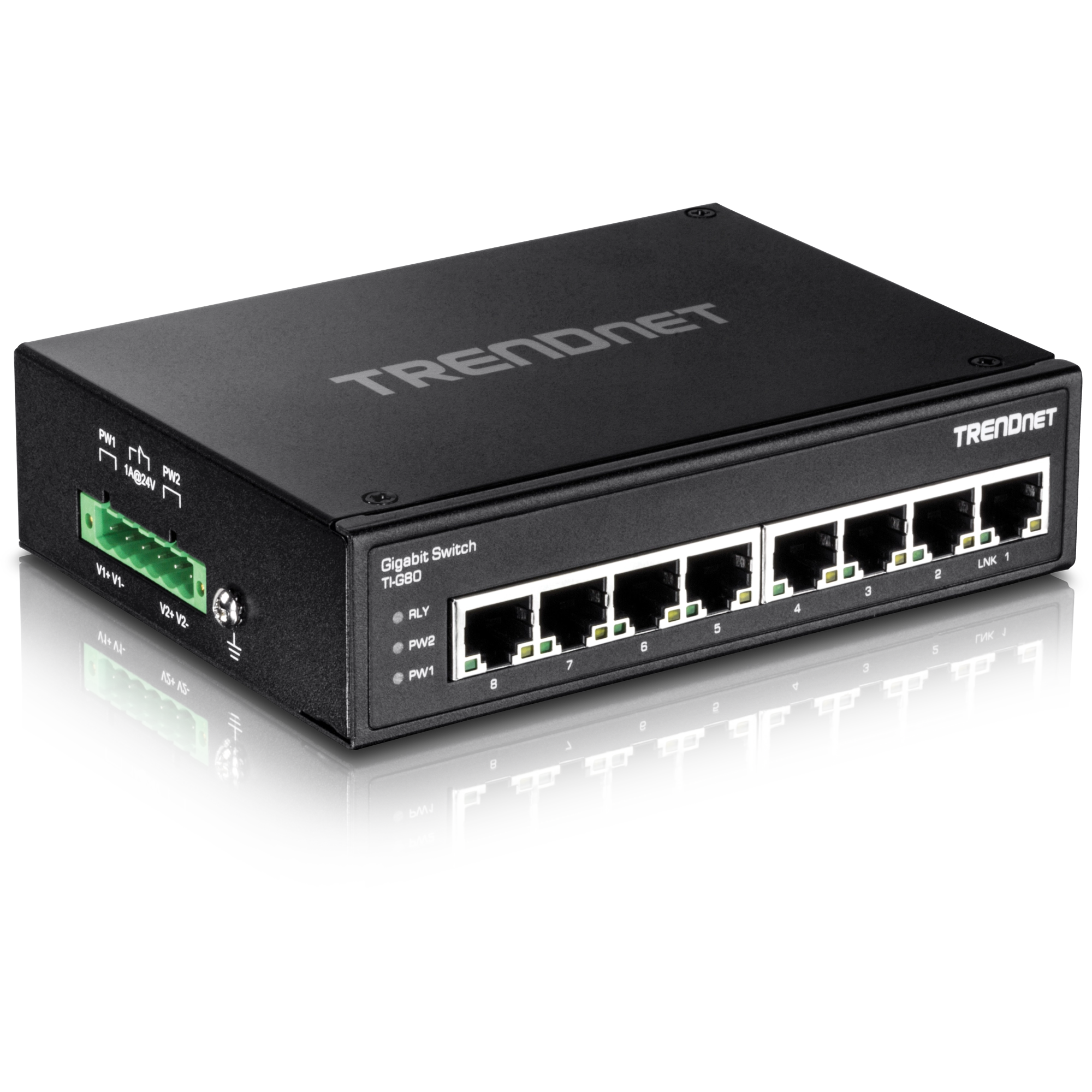

TRENDNET - TI-G80 - 8-port hardened Industrial Gigabit Switch
Part number:
TI-G80
Price:
TRENDnet's TI-G80 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit ports and a 16 Gbps switching capacity. Redundant power inputs (power adapter sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.
Features:
- 8 x Gigabit Ethernet ports
- 16 Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (model TI-M6024)
- NDAA / TAA compliant
- Lifetime Warranty*
| Technical Specifications | |
| Standards | IEEE 802.3 |
| IEEE 802.3u | |
| IEEE 802.3ab | |
| IEEE 802.3x | |
| Device Interface | 8 x Gigabit ports |
| 6-pin removable terminal block | |
| LED indicators | |
| DIN-Rail mount | |
| Wall mount | |
| Grounding point | |
| Data Transfer Rate | Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) |
| Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) | |
| Gigabit: 2000 Mbps (full duplex) | |
| Performance | Data RAM Buffer: 128 KB |
| Switching Fabric: 16 Gbps | |
| MAC Address Table: 8 K entries | |
| Forwarding rate: 11.9 Mpps (64-byte packet size) | |
| Special Features | Hardened components rated for extreme temperatures |
| Redundant power inputs | |
| Auto-Negotiation | |
| Auto store and forward architecture | |
| Automatic address learning and address aging | |
| ESD 8 kV and Surge 2 kV protection | |
| Power | Input: 12 - 56 V DC |
| Compatible power supply: TI-M6024 (sold separately) | |
| Consumption: Max. 5 Watts | |
| Terminal Block | Redundant power inputs, alarm relay contact, 6 pin |
| Wire range: 0.34 mm^2 to 2.5 mm^2 | |
| Solid wire (AWG): 12-24/14-22 | |
| Stranded wire (AWG): 12-24/14-22 | |
| Torque: 5 lb. – In / 0.5 Nm / 0.56 Nm | |
| Wire strip length: 7-8 mm | |
| Alarm Relay Contact | Relay outputs with current carrying capacity of 1 A, 24 V DC |
| Open circuit mode when two power sources are connected | |
| Short circuit mode when only one power source is connected | |
| MTBF | 510,304 hours |
| Housing | IP30 metal case |
| DIN-rail mount | |
| Wall mount | |
| Grounding point | |
| 8 kV ESD protection | |
| 2 kV surge protection | |
| Operating Temperature | - 40 to 75 °C (-40 to 167 °F) |
| Operating Humidity | Max. 95 % non-condensing |
| Dimensions | 143 x 104 x 36 mm (5.6 x 4.1 x 1.4 in.) |
| Weight | 512 g (1.1 lb) |
| Certifications | CE |
| FCC | |
| Shock (IEC 60068-2-27) | |
| Freefall (IEC 60068-2-32) | |
| Vibration (IEC 60068-2-6) | |
| Warranty | Lifetime Warranty* |
