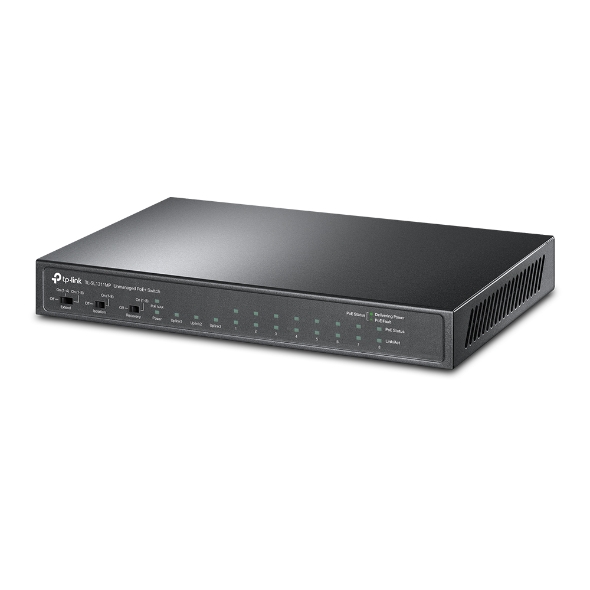

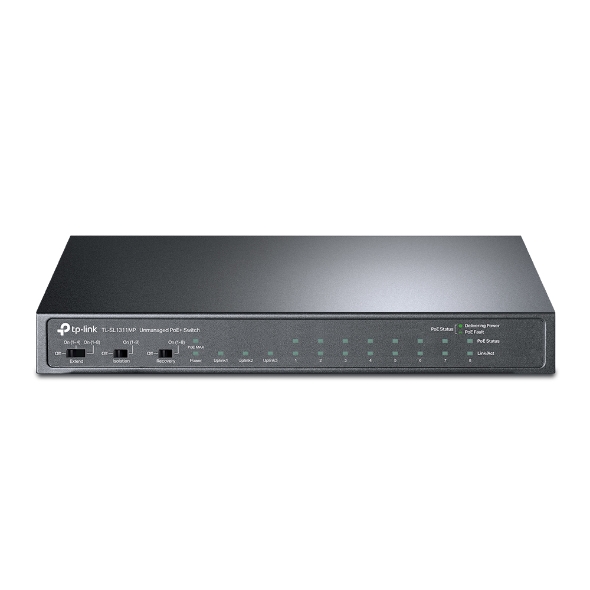

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
Features:
Technical Specification | |

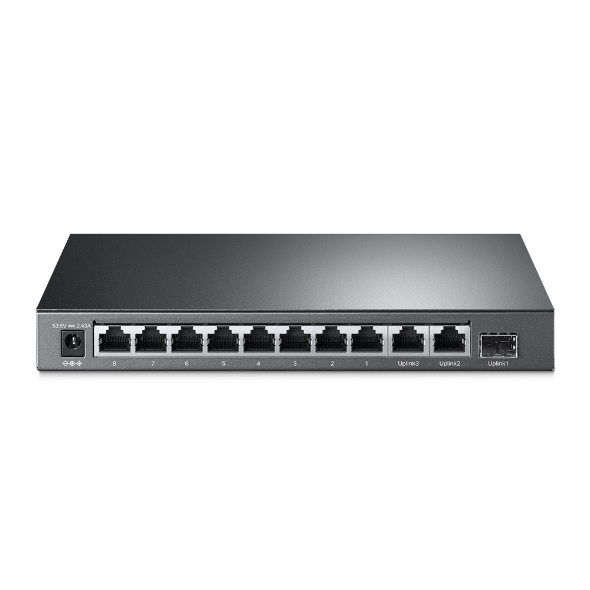

Interface | • 8× 10/100 Mbps 802.3af/at PoE+ Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port |
• AUTO Negotiation | |
• AUTO MDI/MDIX | |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
• EIA/TIA-568 100Ω STP (maximum 100m) | |
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
• EIA/TIA-568 100Ω STP (maximum 100m) | |
Fan Quantity | Fanless |
Physical Security Lock | Yes |
External Power Supply | External Power Adapter (Output: 53.5VDC / 2.43A) |
Packet Forwarding Rate | 5.6544 Mpps |
PoE Ports (RJ45) | • Standard: 802.3 af/at compliant |
• PoE Ports: Ports 1–8 | |
• Power Supply: 124 W | |
Mac Address Table | 2K |
Jumbo Frame | 16 KB |
Switching Capacity | 7.6 Gbps |
Dimensions ( W x D x H ) | 8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm) |
Max Power Consumption | • 5.95 W (220/50 Hz. no PD connected) |
• 140.92 W (220/50 Hz. with 124 W PD connected) | |
Max Heat Dissipation | • 20.29 BTU/h (no PD connected) |
• 480.54 BTU/h (220/50 Hz. with 124 W PD connected) |
SOFTWARE FEATURES | |
Transmission Method | Store-And-Forward |
Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs |
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) | |
• Isolation Mode Button (Ports 1–8) | |
• PoE Auto Recovery Button (Ports 1–8) | |
• Mac Address Auto-Learning and Auto-Aging | |
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Contents | • TL-SL1311MP |
• Power Adapter | |
• Installation Guide | |
Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
• Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
• Operating Humidity: 10–90% RH non-condensing | |
• Storage Humidity: 5–90% RH non-condensing |
