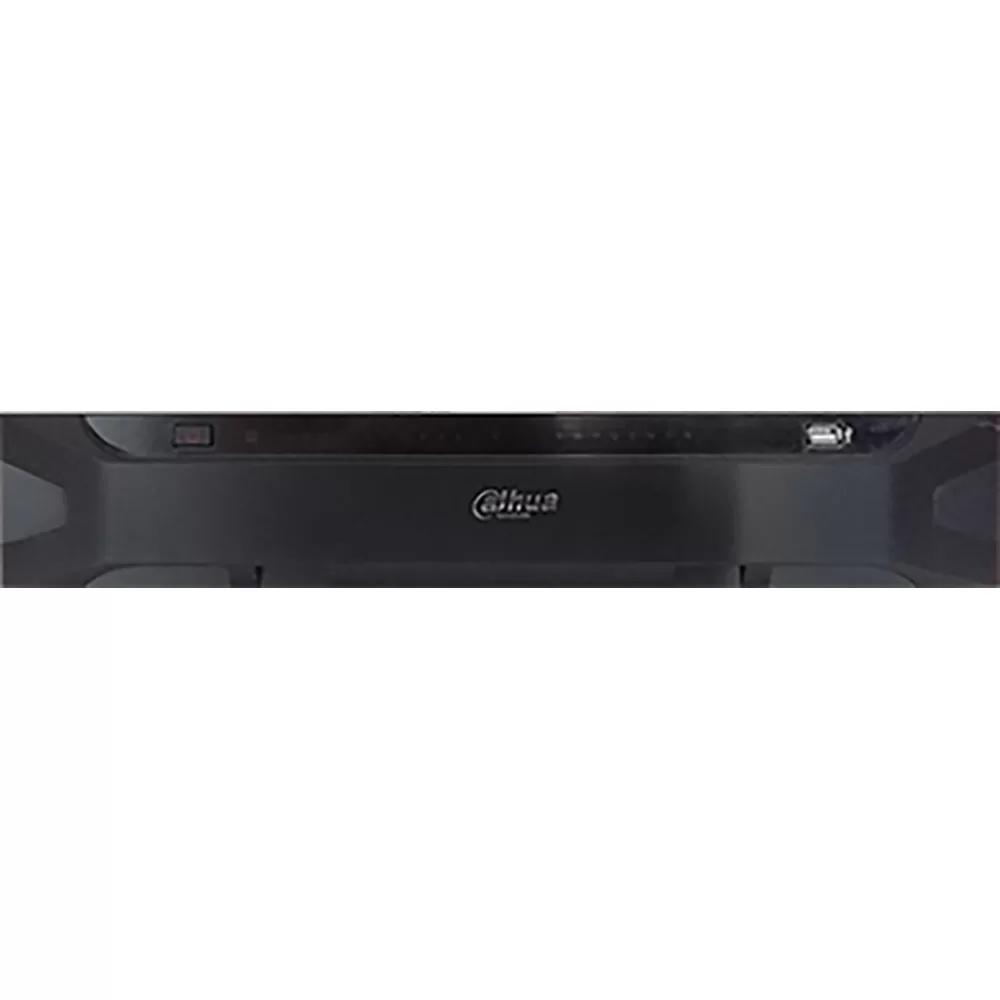

Dahua - DHI-NVD0905DH-4I-4K - 9 Channel Ultra HD Network Video Decoder
Part number:
DHI-NVD0905DH-4I-4K
Price:
9 Screens Ultra-HD Network Video Decoder
Features:
- Designed for Standalone Operator Viewers
- H.265, H.264, MJPEG, MPEG4, MPEG2 Video Decoding
- Ultra-high Decoding Capability, up to 12 MP
- HDMI and DVI-I Inputs (2 channels each), HDMI Output (9 channels)
- Supports 1/4/9/16 Split-screen Display
- Audio, Alarm, Bi-directional Talk, and RS485 Interfaces
- Splicing-screen Control for Zoom, Merge, Roam, and Overlay
| Technical Specification | |
| System | |
| Processor | Intel x86 Processor |
| Operating System | LINUX |
| Performance | |
| Video Format | H.265, H.264, MPEG4, MPEG2, MJPEG |
| Audio Format | PCM, G711, AAC |
| Port 1, 2, 3; Port 4, 5, 6; Port 7, 8, 9 | |
| Decoding Capacity, Separately | 3ch at 12 MP, 3ch at 4K; 12ch at 1080p, 27ch at 720p, 48ch at D1 |
| Total Video Decoding | 9ch at 12MP, 9ch at 4K, 36ch at 1080p, 81ch at 720P, 144ch at D1 |
| Display Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960H, D1, HD1, 2CIF, CIF, QCIF |
| Video Output | Nine (9) HDMI Channels |
| Communication Interface | Two (2) RJ45 Network Ports (10/100/1000 Mbps) Three (3) RS232 Ports (1 DB9, 2 RJ45) One (1) RS485 |
| Bi-directional Talk | One (1) Pair 3.5 mm jacks (2.0V Line in/50mV Mic in/10KΩ, 2.0V/16Ω out) |
| Alarms | Input: Four (4) Channels Output: Four (4) Relays (30 VDC 1 A, 125 VAC, 0.5 A) |
| Power, Environment, Construction | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | ≤70 W |
| Working Temperature | -10 °C to +55 °C (14 °F to 131 °F) |
| Working Humidity | 10% to 95%, 86 Kpa to 106 Kpa |
| Unit Dimension | 1.5 U, 440.0 mm x 408.0 mm x 70.0 mm (17.32 in. x 16.06 in. x 2.76 in.) |
| Weight | 4.50 kg to 4.80 kg (9.92 lb to 10.58 kg) |
